Engine Lubrication System Component Location Index

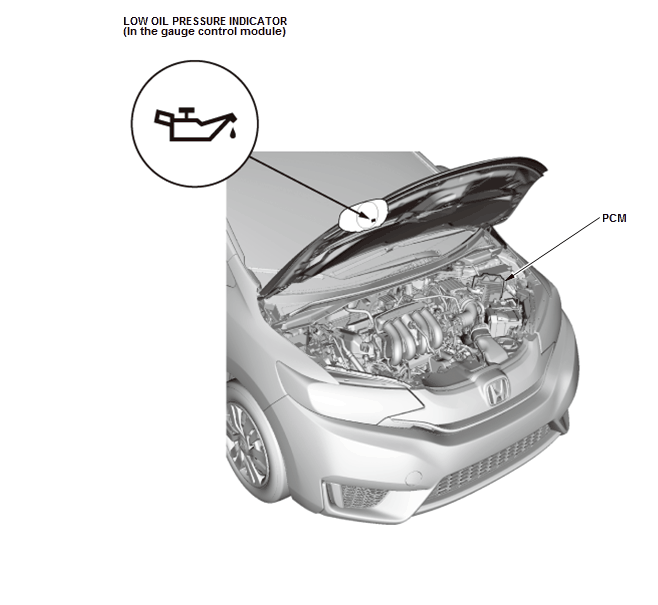

GHH82411

Courtesy of HONDA, U.S.A., INC.

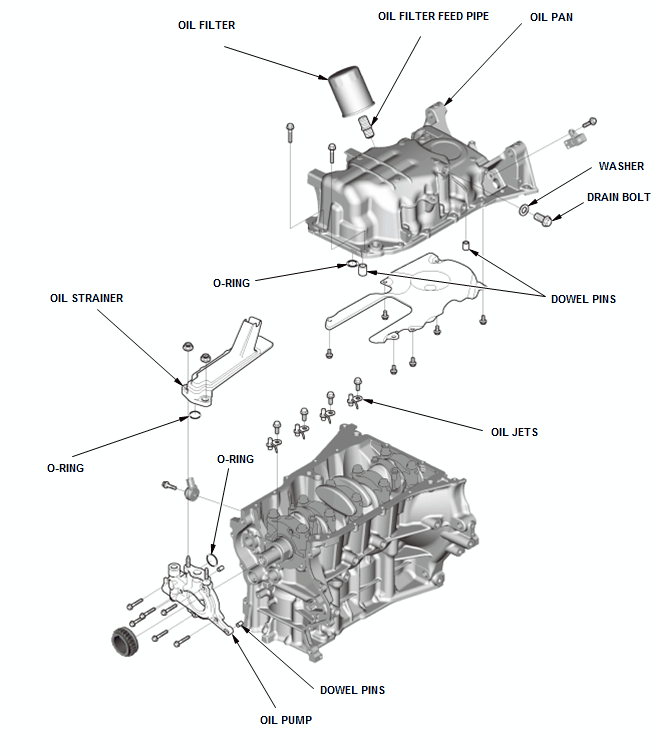

GHH82412

Courtesy of HONDA, U.S.A., INC.
