CVT System Description - Power Flow (CVT)

Power Flow

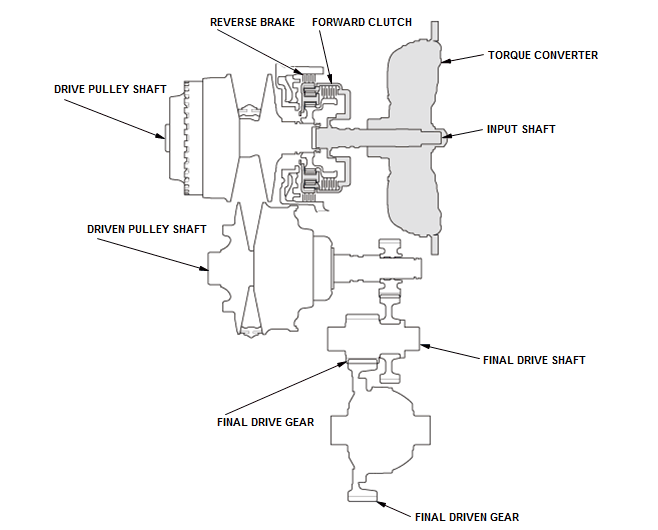

P Position

Hydraulic pressure is not applied to the forward clutch and the reverse brake. Power is not transmitted to the secondary drive gear. The driven pulley is locked by the park pawl interlocking the park gear.

N Position

Engine power transmitted from the torque converter drives the input shaft, but the hydraulic pressure is not applied to the forward clutch and the reverse brake. Power is not transmitted to the drive pulley shaft.

Courtesy of HONDA, U.S.A., INC.

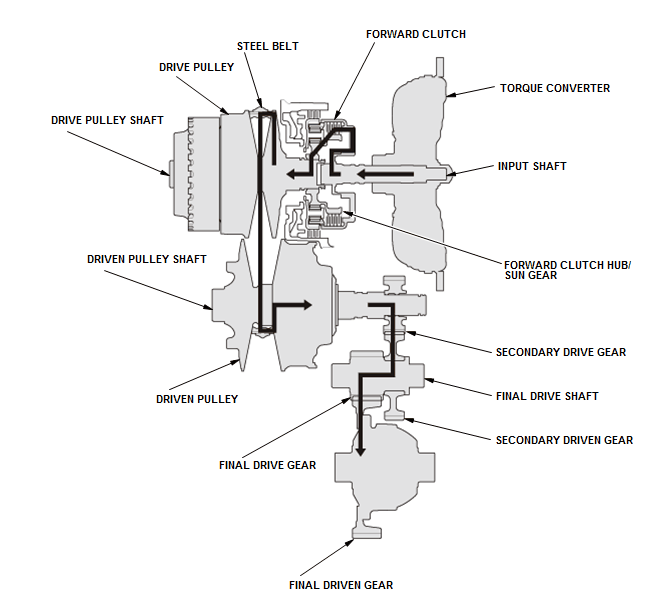

Low Speed Range

• Hydraulic pressure is applied to the forward clutch, then the forward clutch engages the forward clutch hub/sun gear with the drive pulley shaft.
• The drive pulley shaft drives the driven pulley shaft linked by the steel belt.
• The driven pulley shaft drives the secondary driven gear via the secondary drive gear.
• Power is transmitted to the final drive gear, which in turn drives the final driven gear.
• At low speed range; pulley ratio high, the drive pulley receives lower pressure than driven pulley received pressure, the drive pulley applies the small-pulley-diameter to the steel belt.

Courtesy of HONDA, U.S.A., INC.

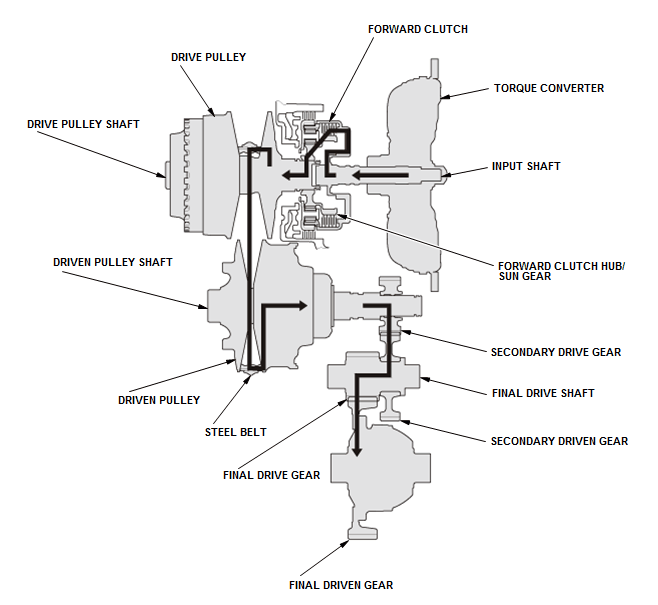

High Speed Range

• Power flow to the final driven gear is the same as at the low speed range.
• As the vehicle speed is increased, the drive pulley pressure is increased by the CVT drive pulley pressure control solenoid valve, and the driven pulley pressure is decreased by the CVT driven pulley pressure control solenoid valve.
• At high speed range; pulley ratio low, the drive pulley receives higher pressure than driven pulley received pressure, the drive pulley applies the large-pulley-diameter to the steel belt.

Courtesy of HONDA, U.S.A., INC.

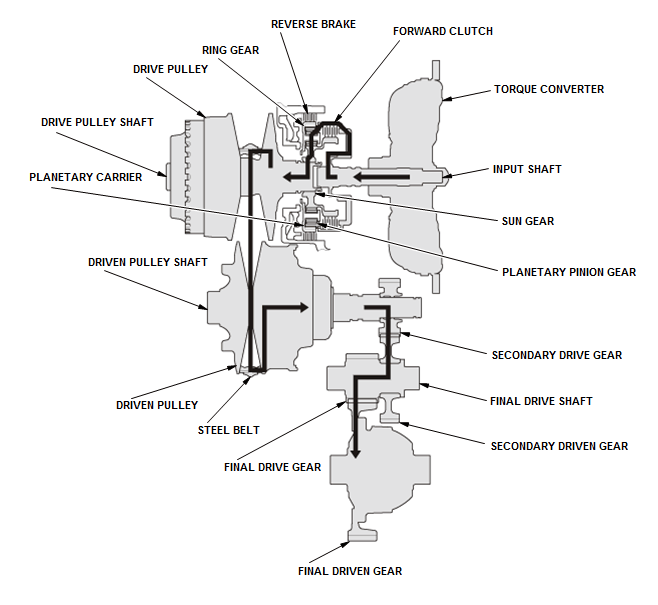

R Position

• Hydraulic pressure is applied to the reverse brake, and the planetary carrier locks with the reverse brake.
• The ring gear joined with the forward clutch drum and the input shaft drives the sun gear via the planetary pinion gears.
• The sun gear rotates in the reverse direction fromthe input shaft rotational direction, and drives the drive pulley shaft.
• The drive pulley shaft drives the driven pulley shaft linked by the steel belt.
• The driven pulley shaft drives the secondary driven gear via the secondary drive gear.
• Power is transmitted to the final drive gear, which in turn drives the final driven gear.

Courtesy of HONDA, U.S.A., INC.
