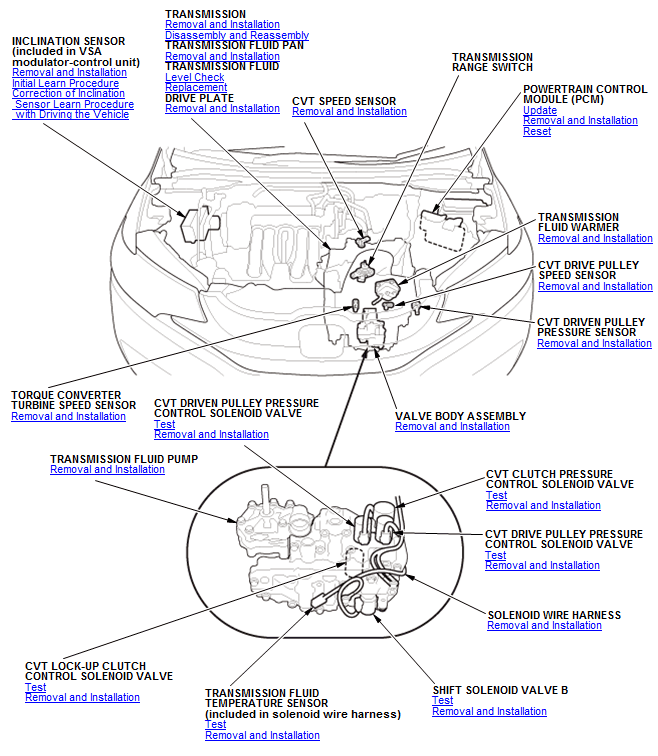

CVT System Component Location Index (CVT)

GHH79435

Courtesy of HONDA, U.S.A., INC.

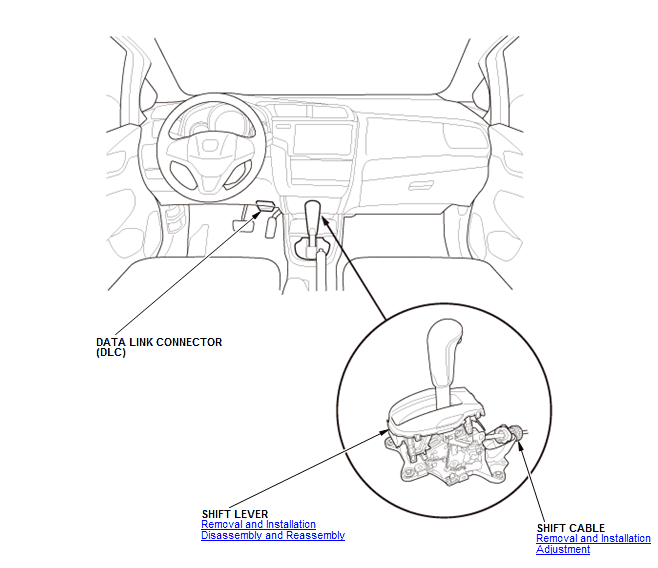

Without paddle shifter

GHH79436

Courtesy of HONDA, U.S.A., INC.

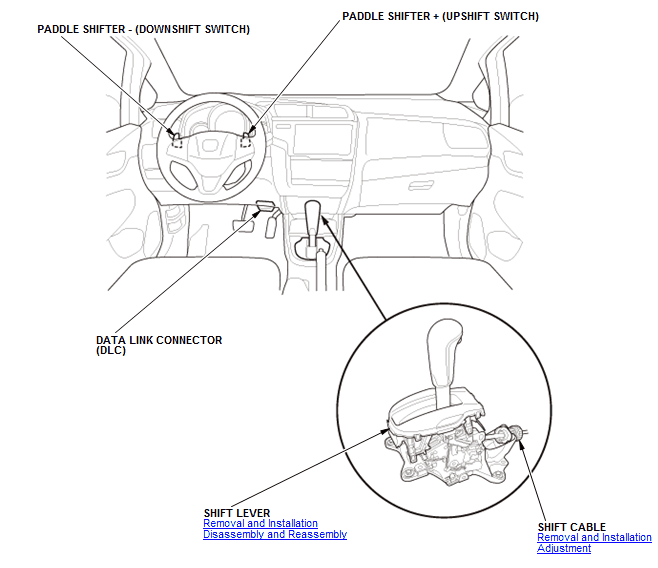

With paddle shifter

GHH79437

Courtesy of HONDA, U.S.A., INC.
