Power Striker Module: Removal
WARNING: This page is about a different car, the 2015 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.
- 1.

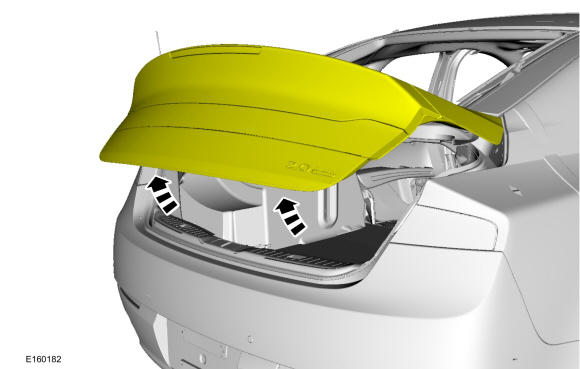

Open the luggage compartment lid.
 Courtesy of FORD MOTOR COMPANY
|
- 2.
Release the retainers and remove the liftgate scuffplate trim panel.
 Courtesy of FORD MOTOR COMPANY
|
- 3.
Remove the power striker motor module.
- Disconnect the electrical connectors.
- Remove the power striker motor module.
 Courtesy of FORD MOTOR COMPANY
|
