Power Striker Module: Installation
WARNING: This page is about a different car, the 2015 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.
- 1.

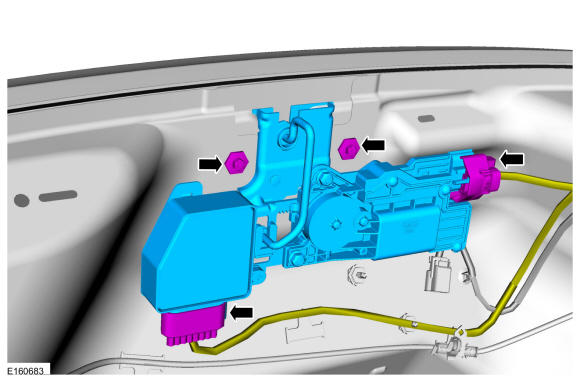

Install the power striker module.
- Install the power striker module and tighten the nuts.
- Connect the electrical connectors.
 Courtesy of FORD MOTOR COMPANY
|
- 2.

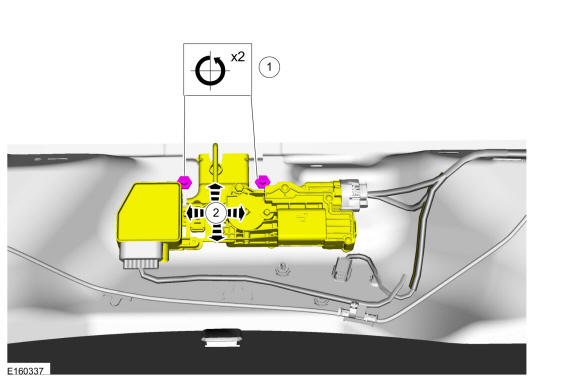

Adjust the power striker module.
- Adjust the power striker module.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

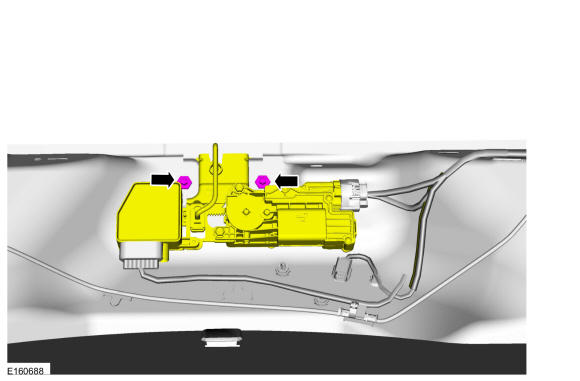

Tighten the nuts.Torque
: 106 lb.in (12 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 4.

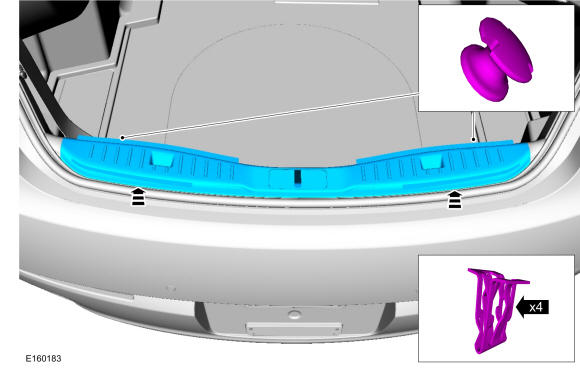

Install the liftgate scuffplate trim panel and the retainers.
 Courtesy of FORD MOTOR COMPANY
|
