Repair procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  2. Remove the glove box housing.

    (Refer to "GLOVE BOX HOUSING ")

  3. Disconnect the passenger airbag connector (A) and remove the PAB mounting bolts (B).

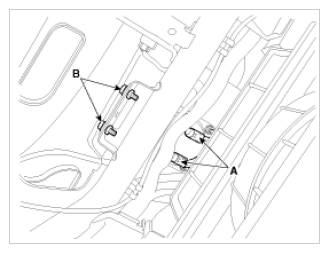

    Fig 1: Identifying Passenger Airbag Connector And PAB Mounting Bolts
    G09886599Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the crash pad.

    (Refer to "MAIN CRASH PAD ASSEMBLY ")

    NOTE: Replace the crash pad which is damaged while PAB is deployed.
  5. Remove the mounting bolts from the crash pad. Then remove the passenger airbag.
    CAUTION: The removed airbag module should be stored in a clean, dry place with the airbag cushion up.
