Repair procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  2. Remove the crash pad lower panel.

    (Refer to "CRASH PAD LOWER PANEL ")

  3. Loosening the mounting bolt and nuts. And then remove the knee airbag (A).

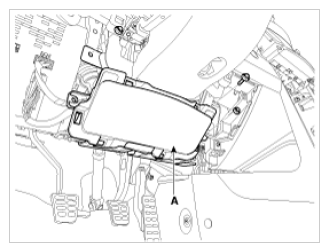

    Fig 1: Identifying Knee Airbag
    G09886605Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the knee airbag harness connector (A).

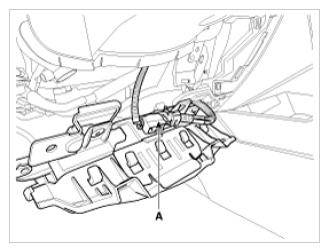

    Fig 2: Identifying Knee Airbag Harness Connector
    G09886606Courtesy of HYUNDAI MOTOR AMERICA
