Repair procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable and wait for at least 3 minutes before beginning work.
  2. Remove the roof trim assembly.

    (Refer to "ROOF TRIM ASSEMBLY ")

  3. Disconnect the curtain airbag harness connector (A).

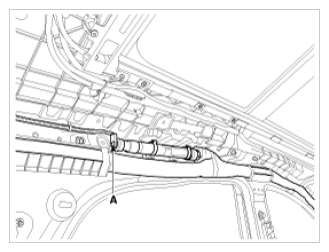

    Fig 1: Identifying Curtain Airbag Harness Connector
    G09886603Courtesy of HYUNDAI MOTOR AMERICA
  4. After loosening the mounting bolts remove the curtain airbag.
