TPMS Switch Removal, Installation, and Test: Test

TPMS Switch - Test

Courtesy of HONDA, U.S.A., INC.

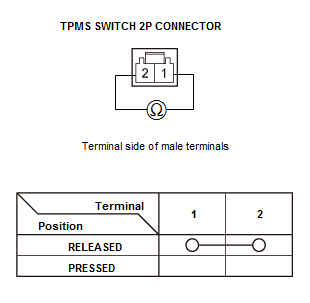

1. On the switch side, check for continuity between the connector terminals in each switch position according to the table

2. If the switch does not work as described in the table, replace the switch.
