Repair procedures: Replacement

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Disconnect the evaporator temperature sensor connector (A).

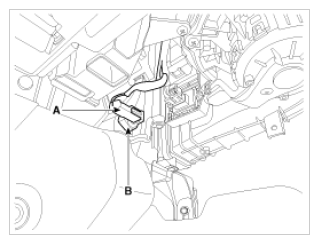

    Fig 1: Identifying Evaporator Temperature Sensor And Connector
    G09887904Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the evaporator temperature sensor (B) by pulling it out after rotating it 90° in a counterclockwise direction.
  4. Install in the reverse order of removal.
