Charging System - Testing & Troubleshooting
>>
Circuit Diagram
>>
Charging System Circuit Diagram
Charging System Circuit Diagram

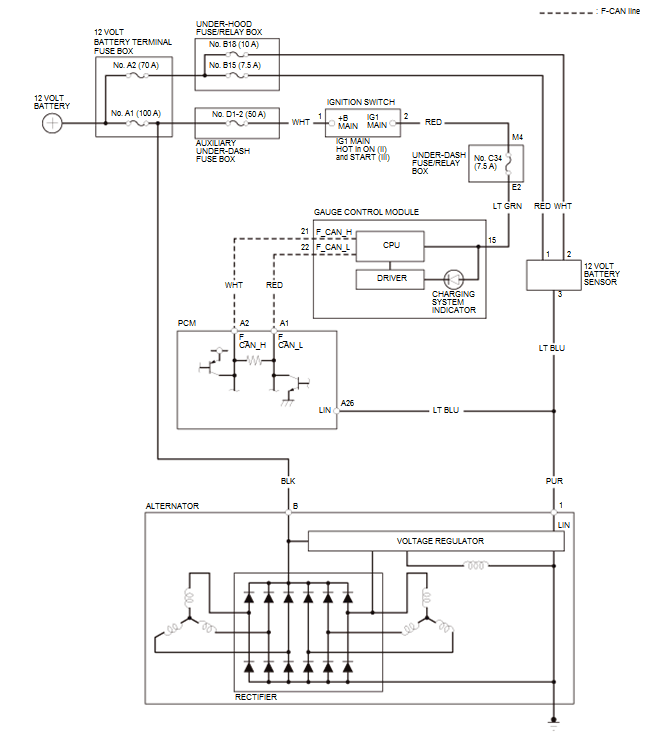

Without keyless access system
Courtesy of HONDA, U.S.A., INC.

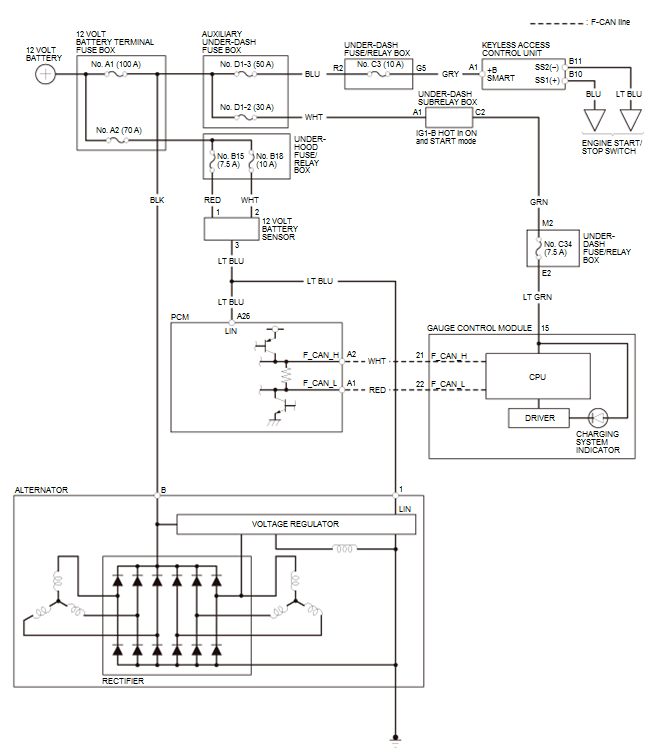

With keyless access system
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
