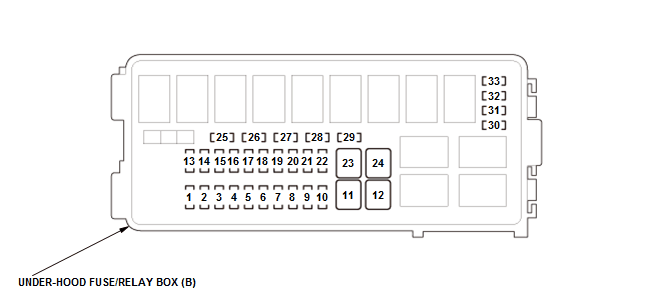

Under-Hood Fuse/Relay Box (B)
Under-Hood Fuse/Relay Box (B) Legend
| Fuse Number | Amps | Component(s) or Circuit(s) Protected |
|---|---|---|
| B1 | 20 A | No. B32 and No. B33 fuses (via headlight low beam relay), Headlight low beam relay |
| B2 | ------ | Not used |
| B3 | 10 A | MICU (+B HAZARD), MICU (HAZARD SW) (via hazard warning switch) |
| B4 | 15 A | No. B30 and No. B31 fuses (via ETCS control relay), PCM (VBDBW) (via ETCS control relay) |
| B5 | 30 A | Via windshield wiper motor relay*2 :Windshield wiper motor (via windshield wiper intermittent relay and windshield wiper high/low relay)*2 , Windshield wiper high/low relay*2 , Windshield wiper intermittent relay*2 |
| B6 | 10 A | Brake lights (via brake pedal position switch), Keyless access control unit (STOP LT) (via brake pedal position switch)*2 , MICU (STOP LT) (via brake pedal position switch), PCM (STOP LT) (via brake pedal position switch) |
| B7 | 15 A | CKP sensor (via PGM-FI main relay 1), CMP sensor (via PGM-FI main relay 1), ETCS control relay (via PGM-FI main relay 1), Injectors (via PGM-FI main relay 1), Injector relay (via PGM-FI main relay 1), PCM (FI MAIN RLY OUT) (via PGM-FI main relay 1), PGM-FI main relay 1, PGM-FI main relay 2 |
| B8 | 15 A | Ignition coil relay, Ignition coils (via ignition coil relay) |
| B9 | ------ | Not used |
| B10 | 20 A | PCM (INJ RLY OUT) (via injector relay) |
| B11 | ------ | Not used |
| B12 | 30 A | Radiator fan motor (via radiator fan relay) |
| B13 | 30 A | No. B25 fuse (via starter cut relay 1)*2 , Starter (via starter cut relay 1 and starter cut relay 2)*2 , Starter magnet diode*2 |
| B14 | 7.5 A | A/C compressor clutch (via A/C compressor clutch relay) |
| B15 | 7.5 A | 12 volt battery sensor |
| B16 | ------ | Not used |
| B17 | ------ | Not used |
| B18 | 10 A | 12 volt battery sensor, Horns (via horn relay), Horn relay, Security horn relay*9 , Security horn (via security horn relay)*3 |
| B19 | 15 A | Fog light relay*4 , Left fog light (via fog light relay)*4 , Right fog light (via fog light relay)*4 |
| B20 | ------ | Not used |
| B21 | 15 A | No. B29 fuse, Audio unit (+B BACK UP MAIN)*5 , Audio-navigation unit (+B BACK UP MAIN)*6 |
| B22 | 7.5 A | Cargo area light, Ceiling light, Front individual map lights |
| B23 | 30 A | A/C condenser fan motor (via A/C condenser fan motor relay), Radiator fan motor (via A/C condenser fan motor relay and fan control relay) |
| B24 | ------ | Not used |
| B25 | 7.5 A | PCM (START DIAG)*2 , Starter magnet diode*1 |
| B26 | ------ | Not used |
| B27 | ------ | Not used |
| B28 | ------ | Not used |
| B29 | 10 A | Automatic lighting control unit/sensor (+B BACK UP)*8 , Data link connector (DLC), Gauge control module (+B BACK UP), Immobilizer-keyless control unit (+B BACK UP)*1 , Keyless access control unit (+B BACK UP)*2 , MICU (+B BACK UP) |
| B30 | 10 A | A/F sensor (sensor 1), EVAP canister vent shut valve*7 |
| B31 | 7.5 A | A/C condenser fan motor relay, Fan control relay |
| B32 | 10 A | Right headlight |
| B33 | 10 A | Left headlight |
*1: Without keyless access system
*2: With keyless access system
*3: With security horn
*4: With fog light
*5: Without navigation
*6: With navigation
*7: USA and Canada models
*8: With automatic lighting
*9: With security
