Multiplex Integrated Control System Circuit Diagram

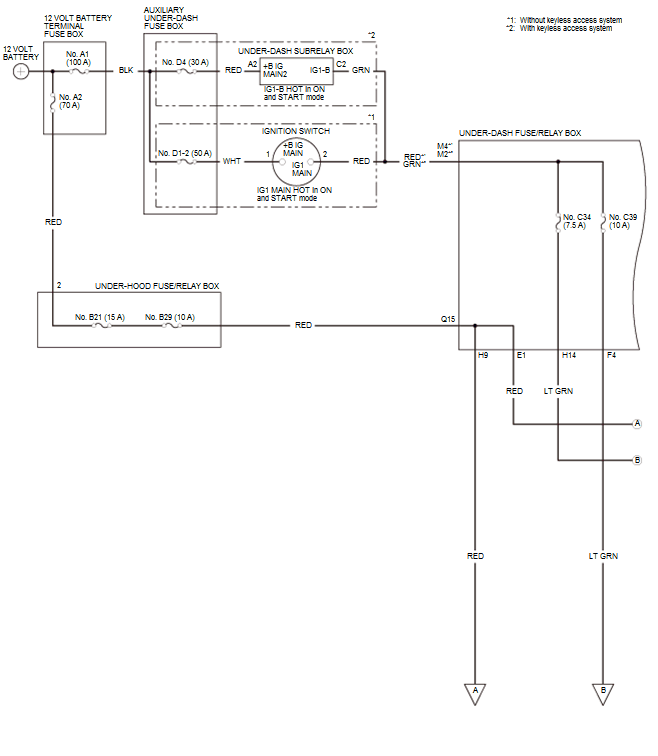

GHH82246

Courtesy of HONDA, U.S.A., INC.

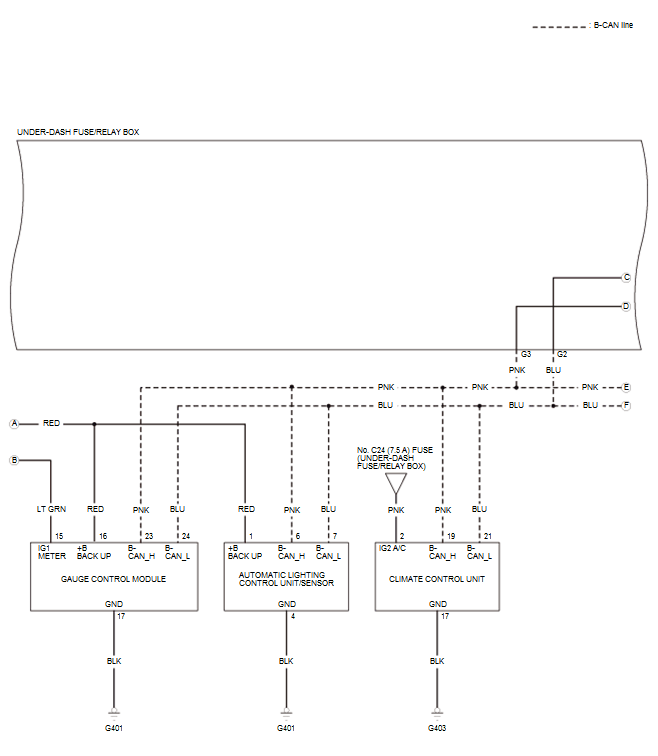

GHH82247

Courtesy of HONDA, U.S.A., INC.

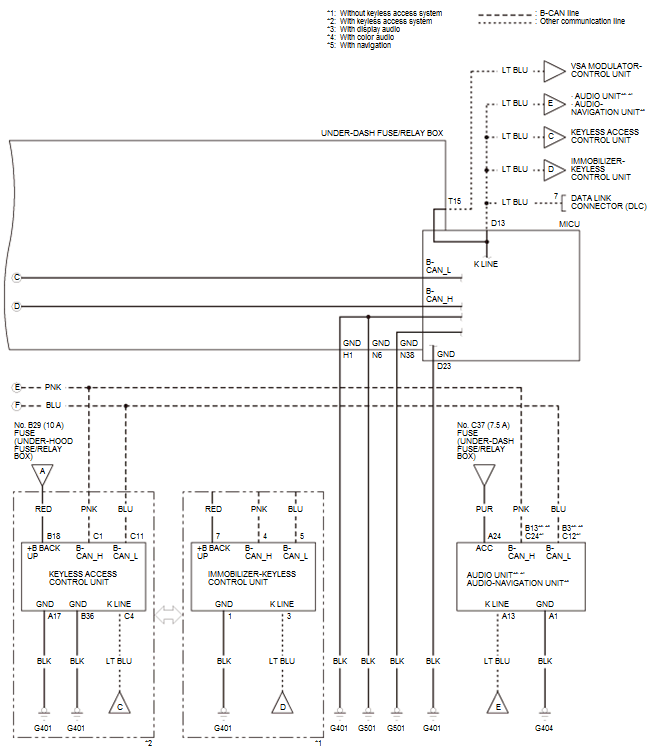

GHH82248

Courtesy of HONDA, U.S.A., INC.
