Starter Solenoid Test: Test

NOTE: How to read the torque specifications .

1. 12 Volt Battery Terminal - Disconnect
2. Starter Solenoid - Test

   Courtesy of HONDA, U.S.A., INC.

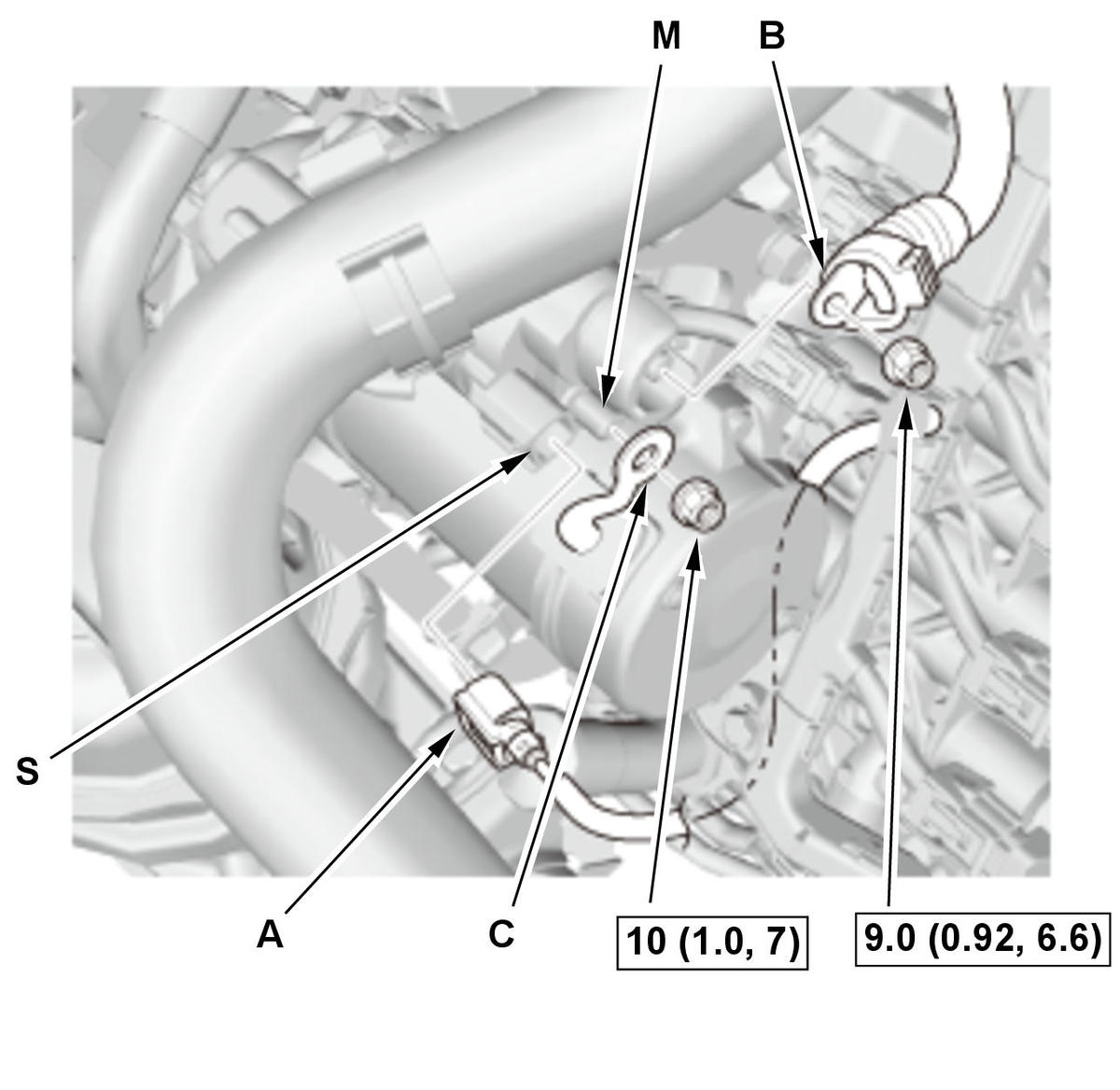

   1. Disconnect the connector (A), the positive cable (B), and the motor cable (C). 2. Check the hold-in coil for continuity between the S terminal and the armature housing (ground). There should be continuity: If there is continuity, go to step 3. If there is no continuity, replace the solenoid . 3. Check the pull-in coil for continuity between the S terminal and the M terminal. There should be continuity: If there is continuity, the solenoid is OK. If there is no continuity, replace the solenoid .

3. All Removed Parts - Install

   1. Install the parts in the reverse order of removal. NOTE: Make sure the crimped side of the ring terminal faces away from the starter when you connect the positive cable.
