Park Pin Switch Test (2017 2018 2019): Test

  1. Center Console - Remove
  2. Park Pin Switch - Test
    GHH459929GHH459930Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH459929GHH459930Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

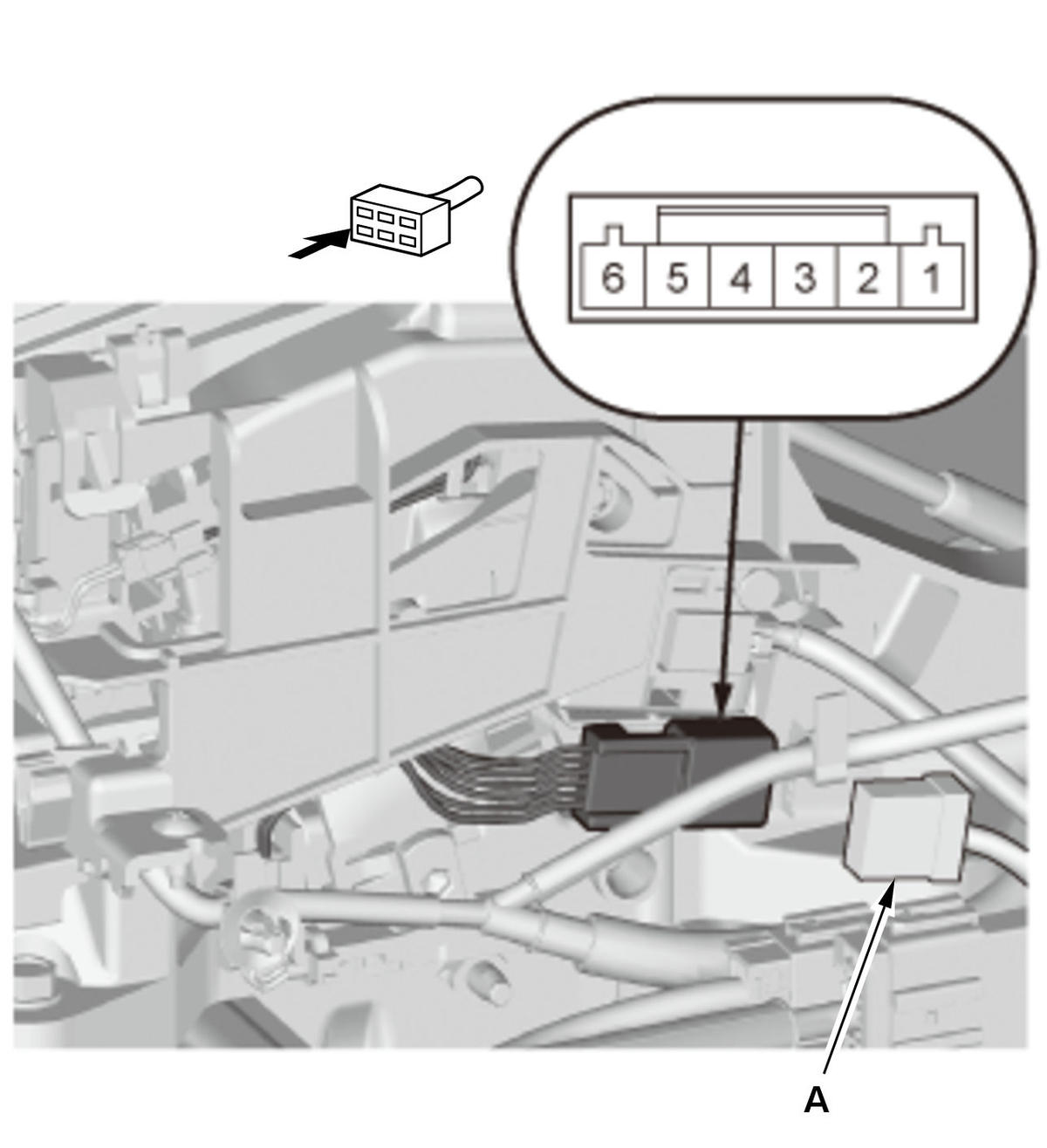

    		 1. Disconnect the connector (A).

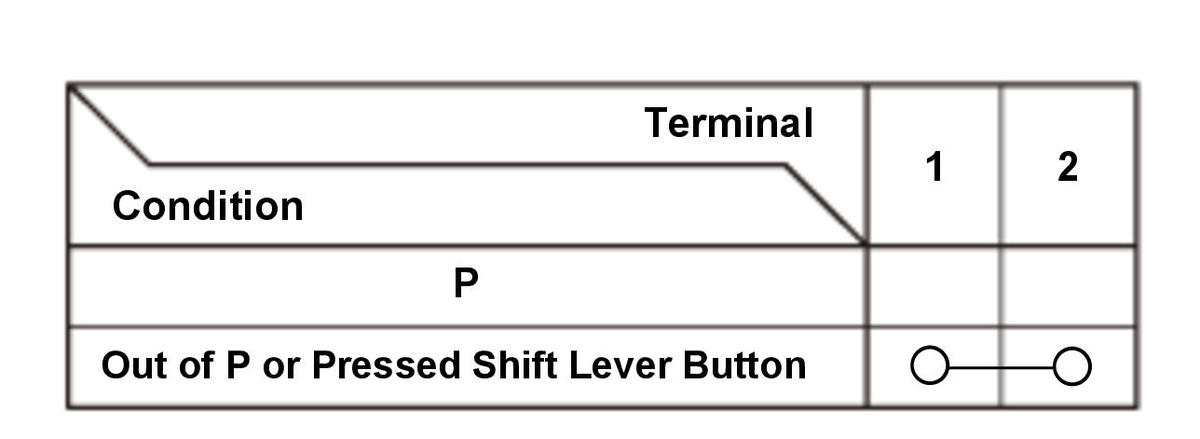

    2. Check for continuity between the terminals in each shift lever condition according to the table.

    3. If the continuity is not as specified, check the shift cable adjustment . If the cable adjustment is OK, the park pin switch is faulty; replace the shift lock unit .
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
