Steering Lock Removal and Installation: Installation

NOTE:

SRS components are located in this area. Review the SRS component locations , and the precautions and procedures before doing repairs or service.

  1. Steering Lock - Install

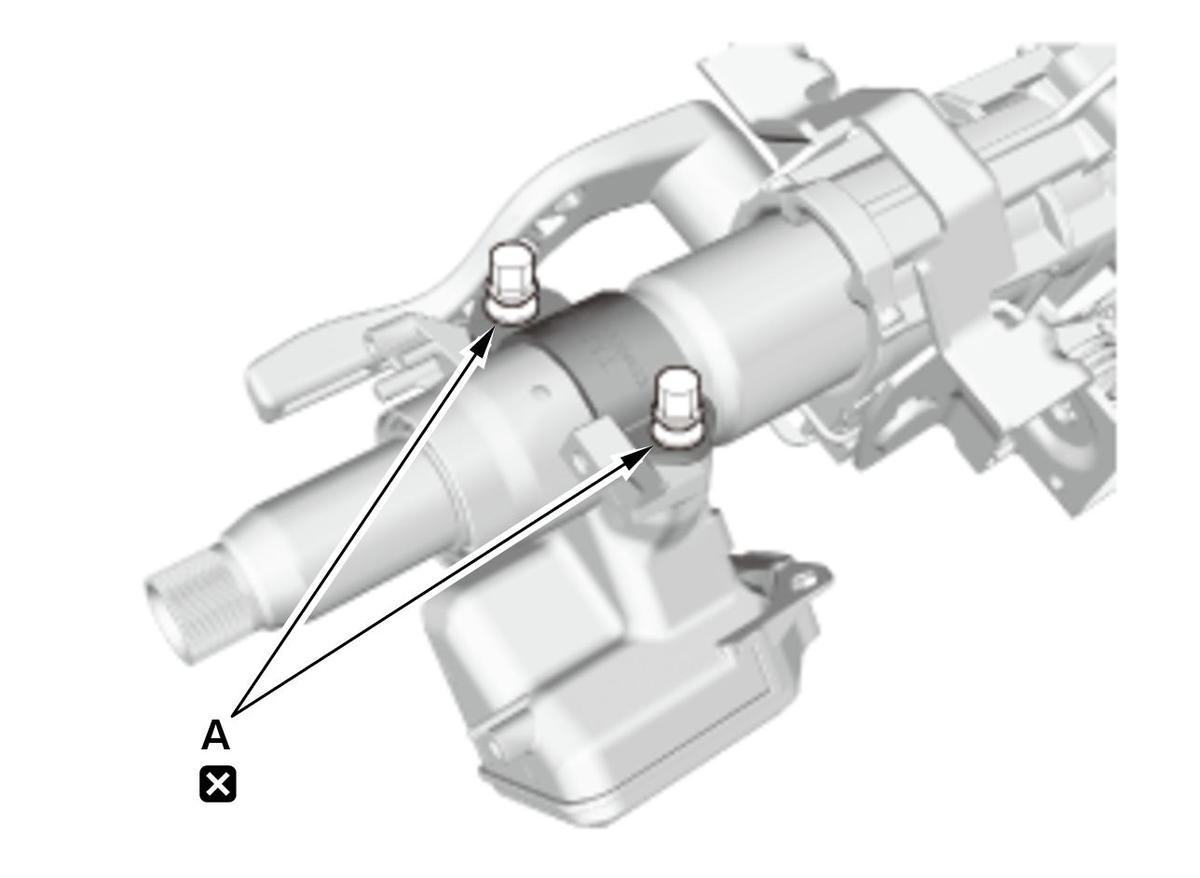

    GHH460244Courtesy of HONDA, U.S.A., INC.
    		 1. Loosely tighten new shear bolts (A).

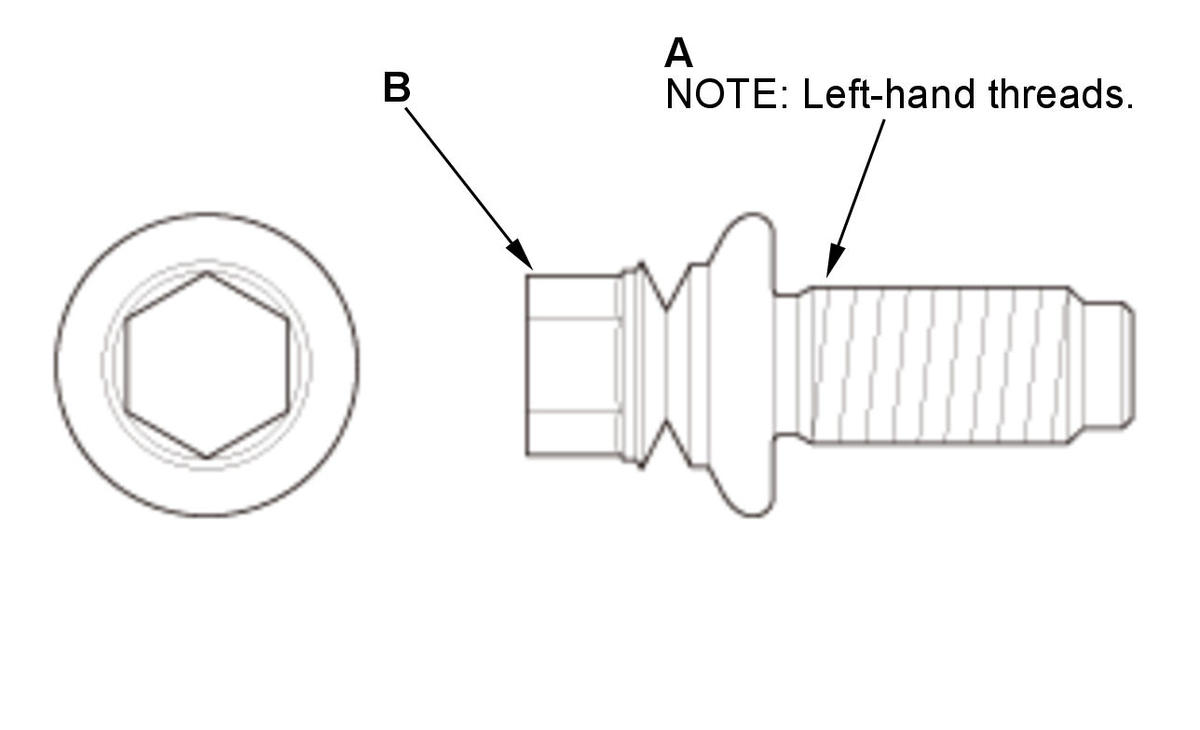

    GHH460245Courtesy of HONDA, U.S.A., INC.
    		 2. Tighten the shear bolts (A) until the hex heads (B) twist off.
  2. Steering Column/EPS Control Unit - Install
  3. Keyless Access System - Register
