PCV System Description

Some of the unburned gases in the combustion chamber will leak through the gap between the pistons and cylinders into the crankcase. Blow-by gases, including the unburned combustion gases, are returned to the intake manifold through the positive crankcase ventilation (PCV) valve and are burned. This prevents the blow-by gases from flowing into the atmosphere.

For locations of each component on vehicle, refer to Component Location Index

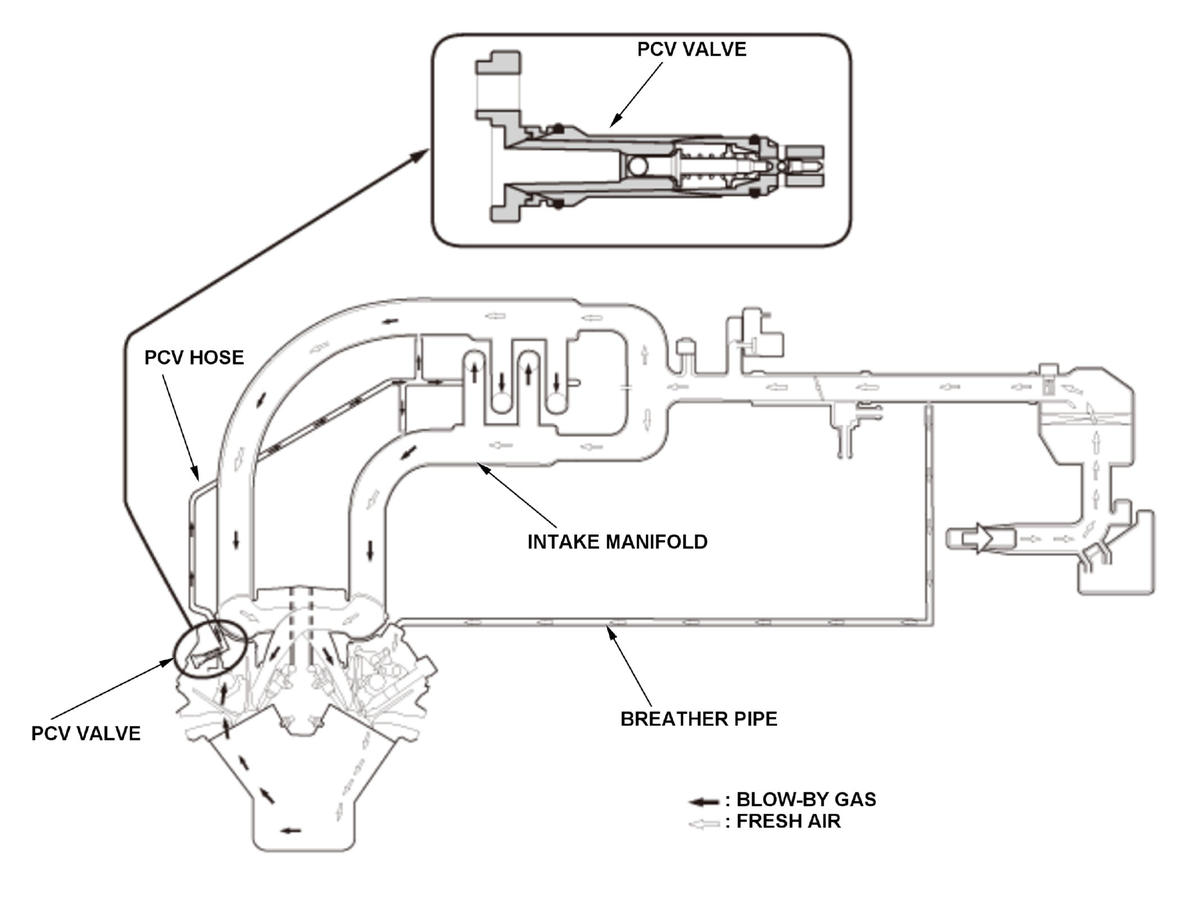

GHH454959Courtesy of HONDA, U.S.A., INC.
