Engine Block Assembly Component Location Index

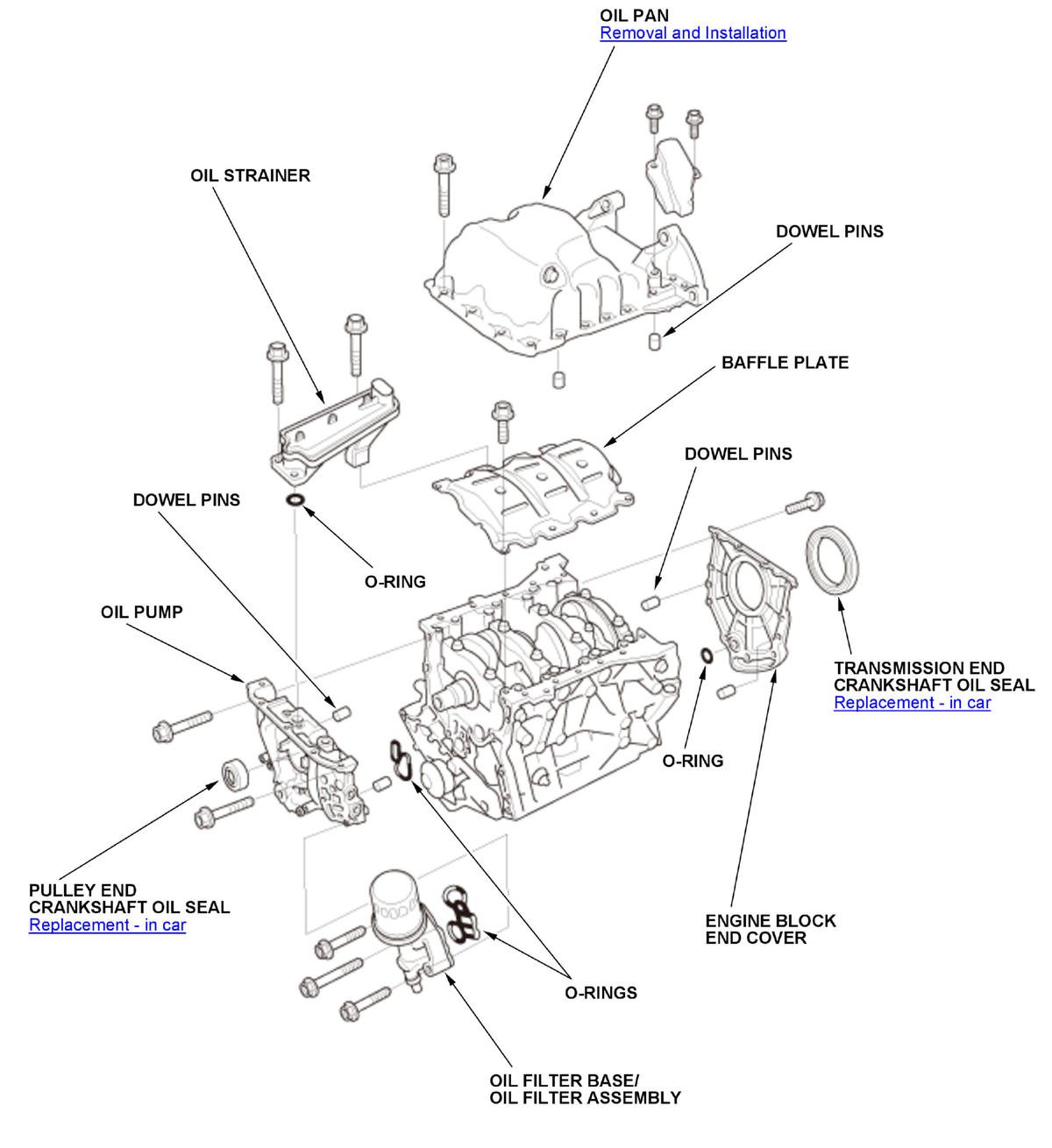

GHH454848

Courtesy of HONDA, U.S.A., INC.

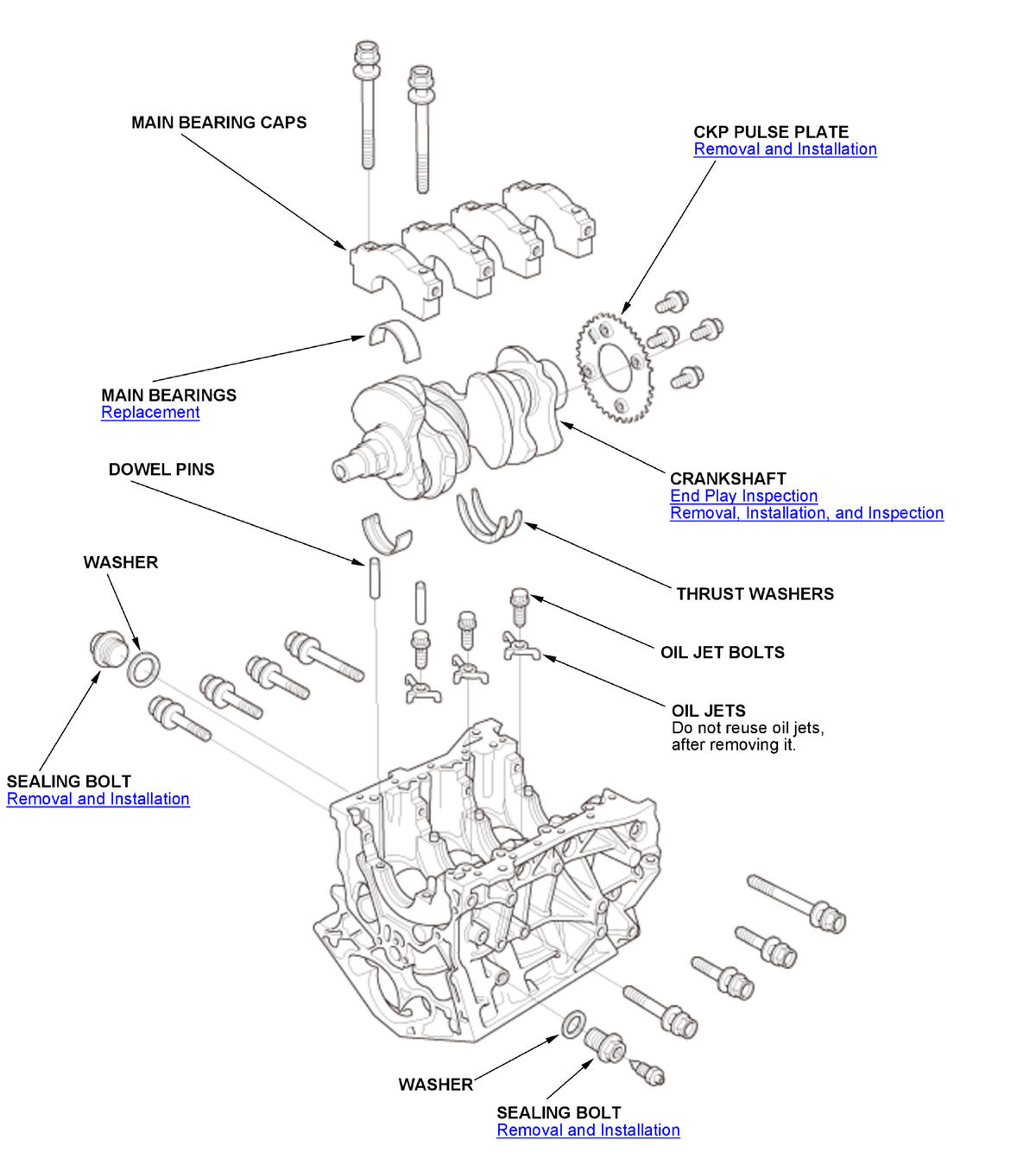

GHH454849

Courtesy of HONDA, U.S.A., INC.

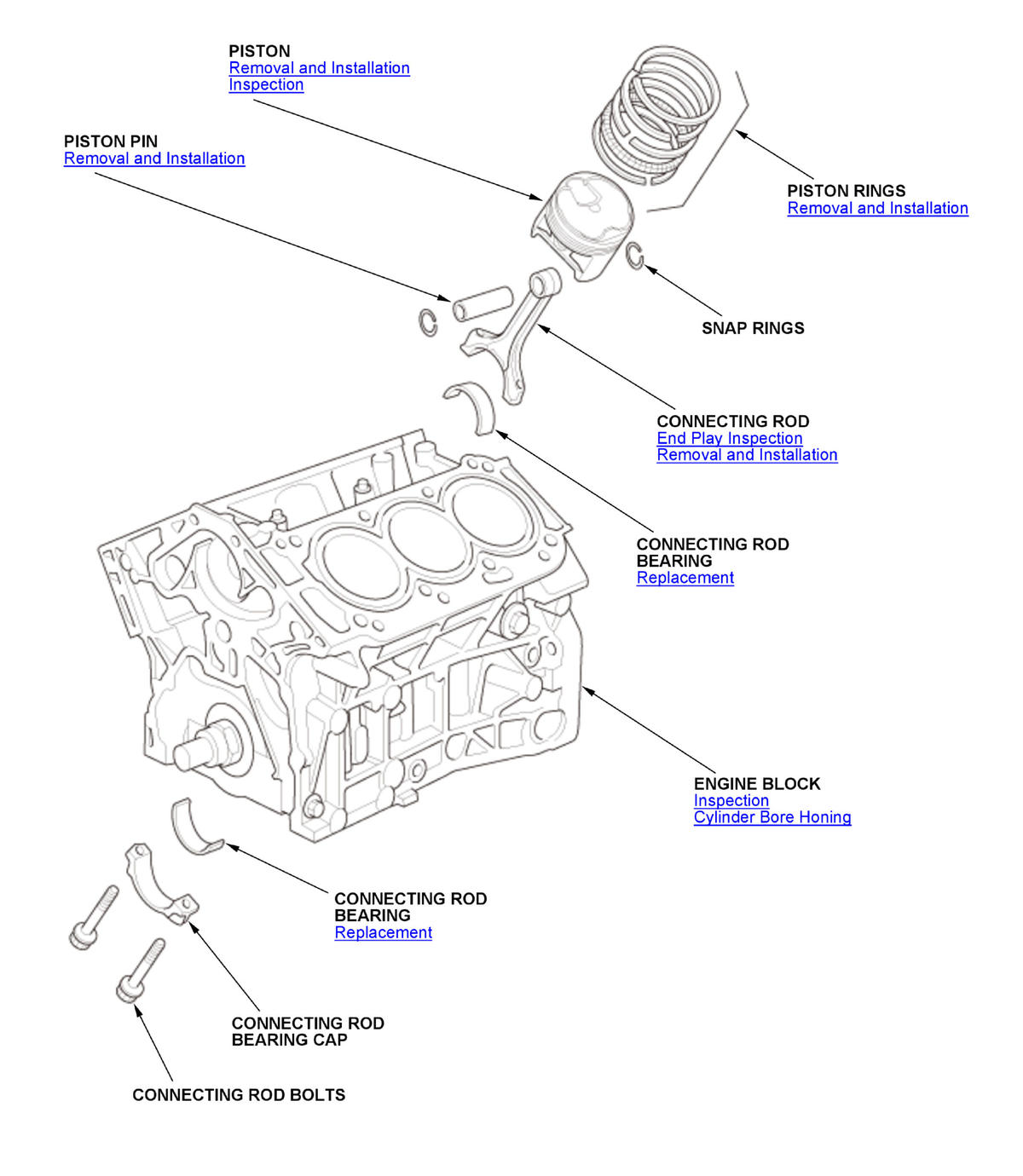

GHH454850

Courtesy of HONDA, U.S.A., INC.
