Keyless Access System Component Location Index (2017 2018 2019)

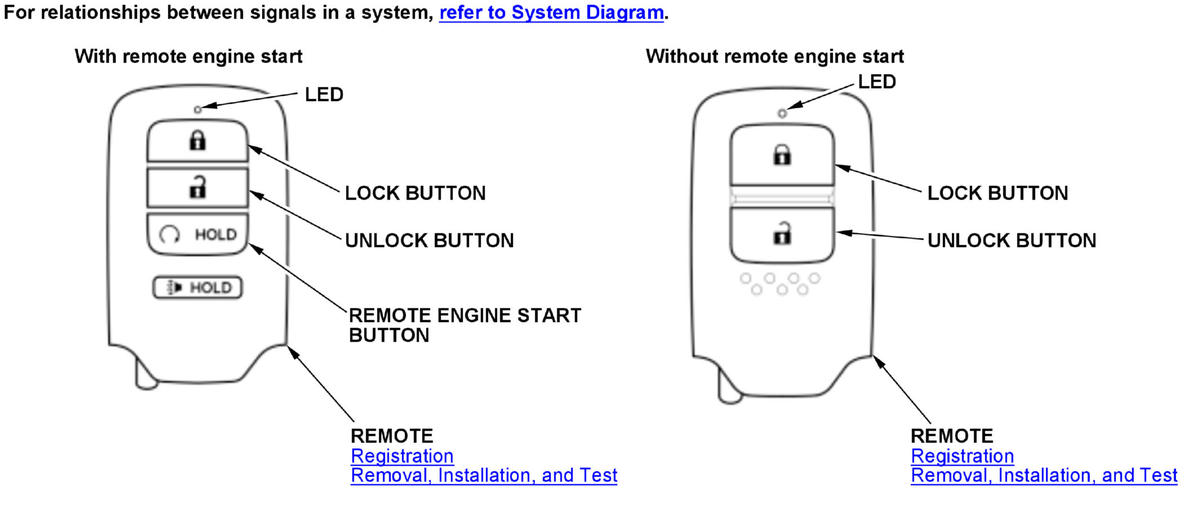

GHH459555

Courtesy of HONDA, U.S.A., INC.

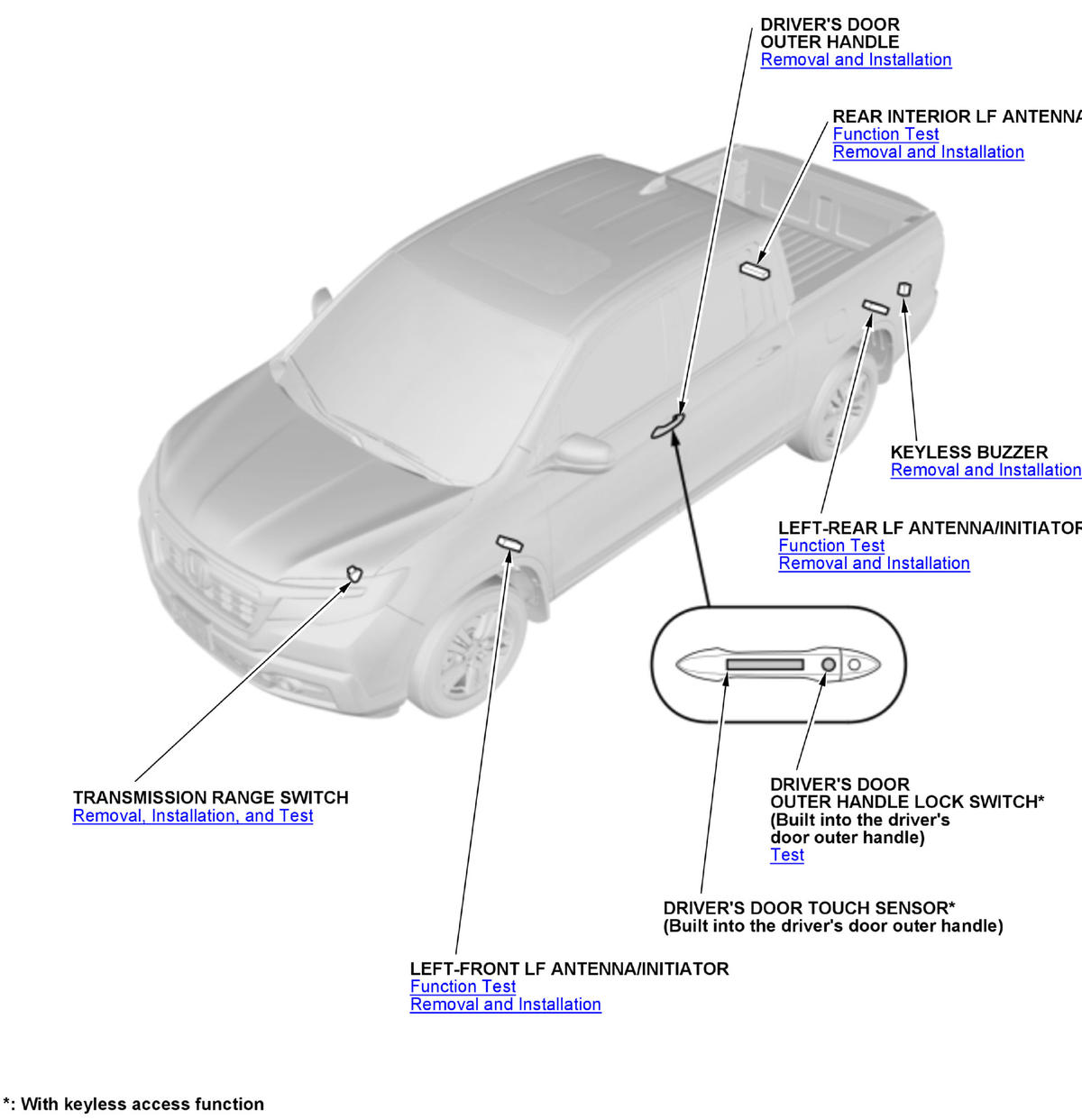

GHH459556

Courtesy of HONDA, U.S.A., INC.

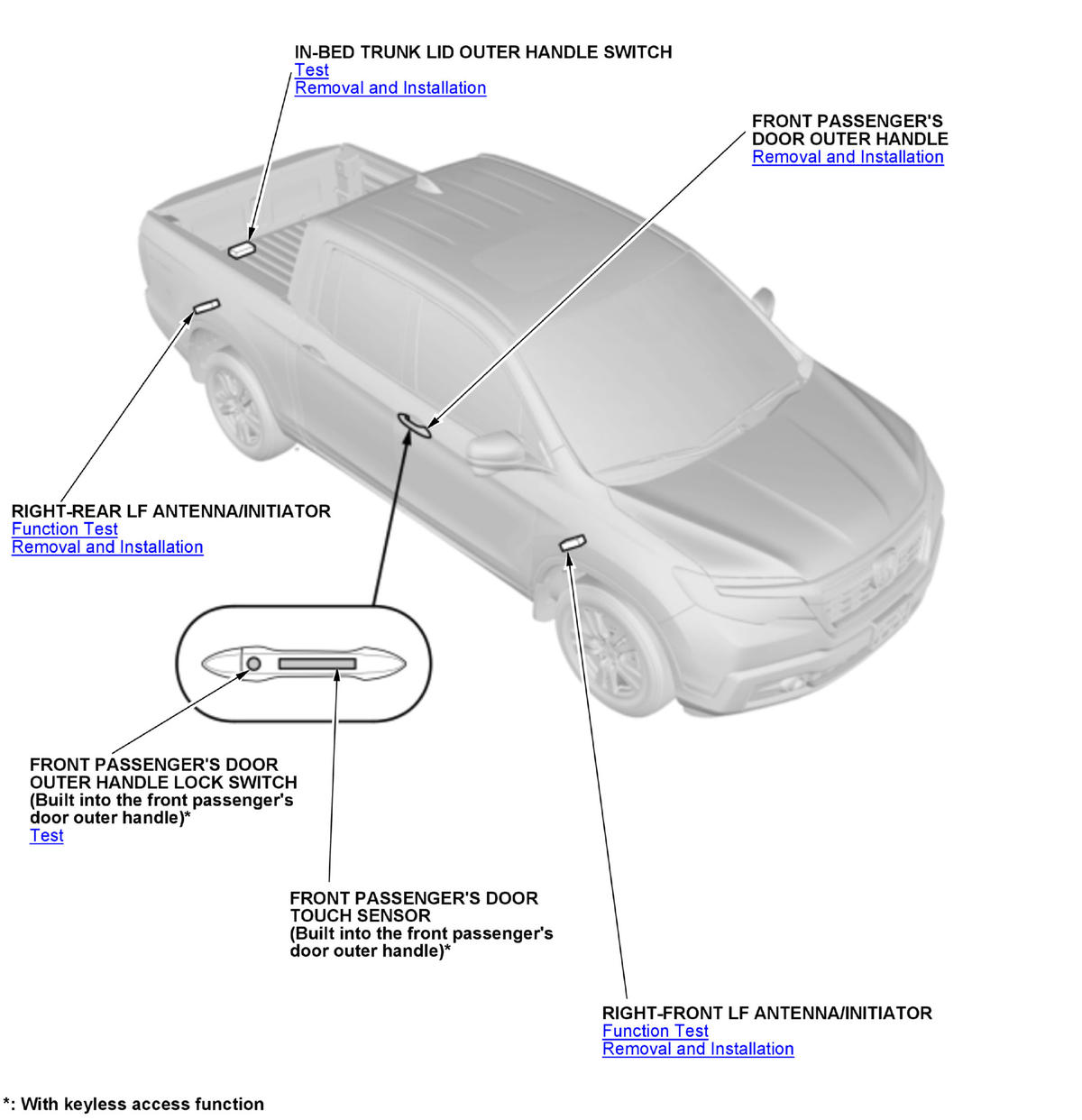

GHH459557

Courtesy of HONDA, U.S.A., INC.

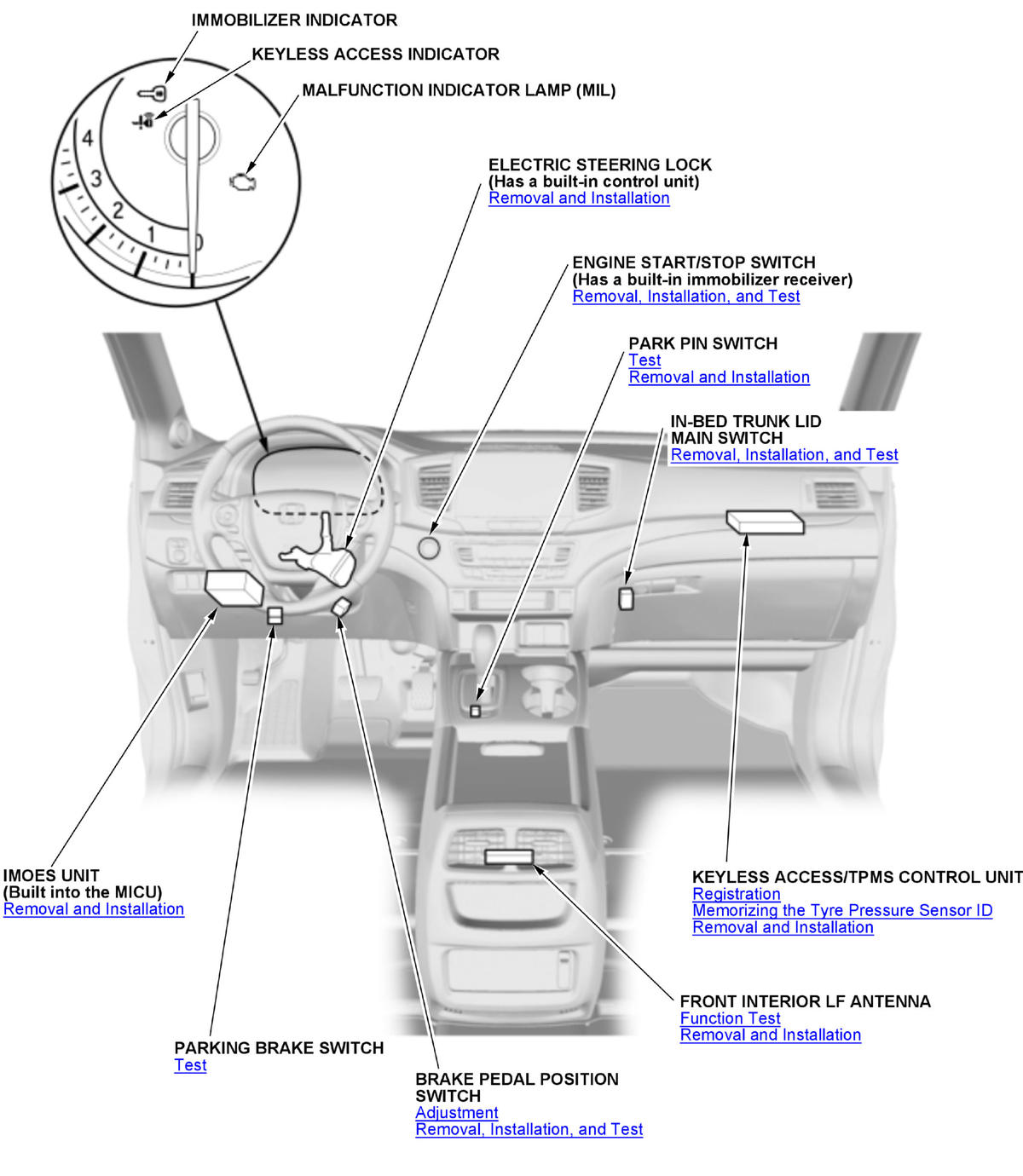

GHH459558

Courtesy of HONDA, U.S.A., INC.
