Without Moonroof
1. Press any of the buttons on the HomeLink® unit.
- If the red indicator comes on, go to step 4.
- If the red indicator does not come on, go to step 2.
2. Disconnect the HomeLink® unit 7P connector.
3. Measure the voltage between HomeLink® unit 7P connector terminals No. 1 (+) and No. 4 (-). There should be battery voltage.
- If the voltage is not as specified, check for these problems:
- An open or high resistance in the wire.
- Poor ground (G501).
- If the voltage is as specified, go to step 4.
4. Make sure the customer's remote transmitter (or a test remote) has fresh batteries.

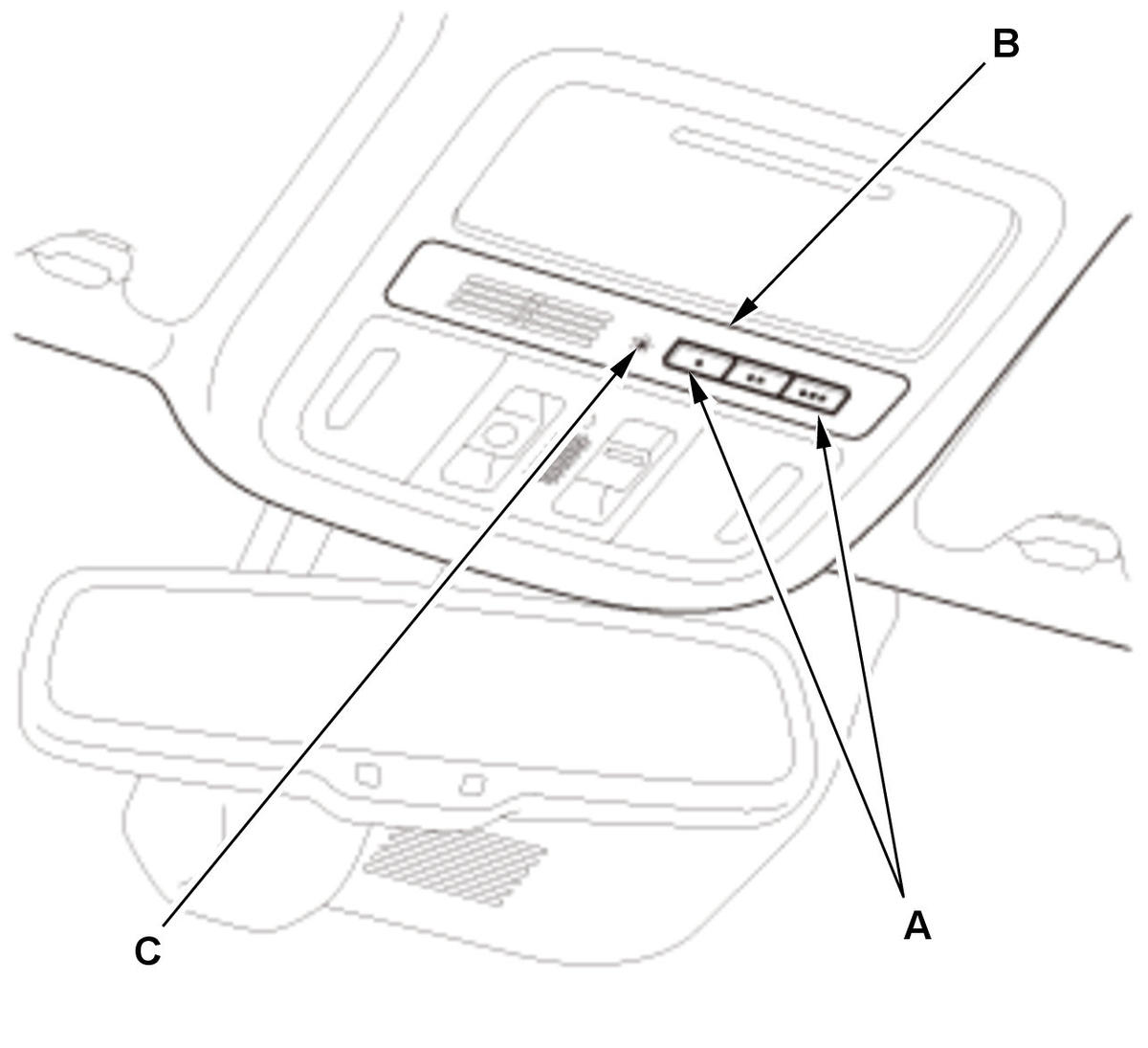

5. Clear any previously learned codes by pressing and holding the two outside switches (A) on the roof console (B) until the red indicator (C) on the unit starts blinking (about 20 seconds), then release the switches.

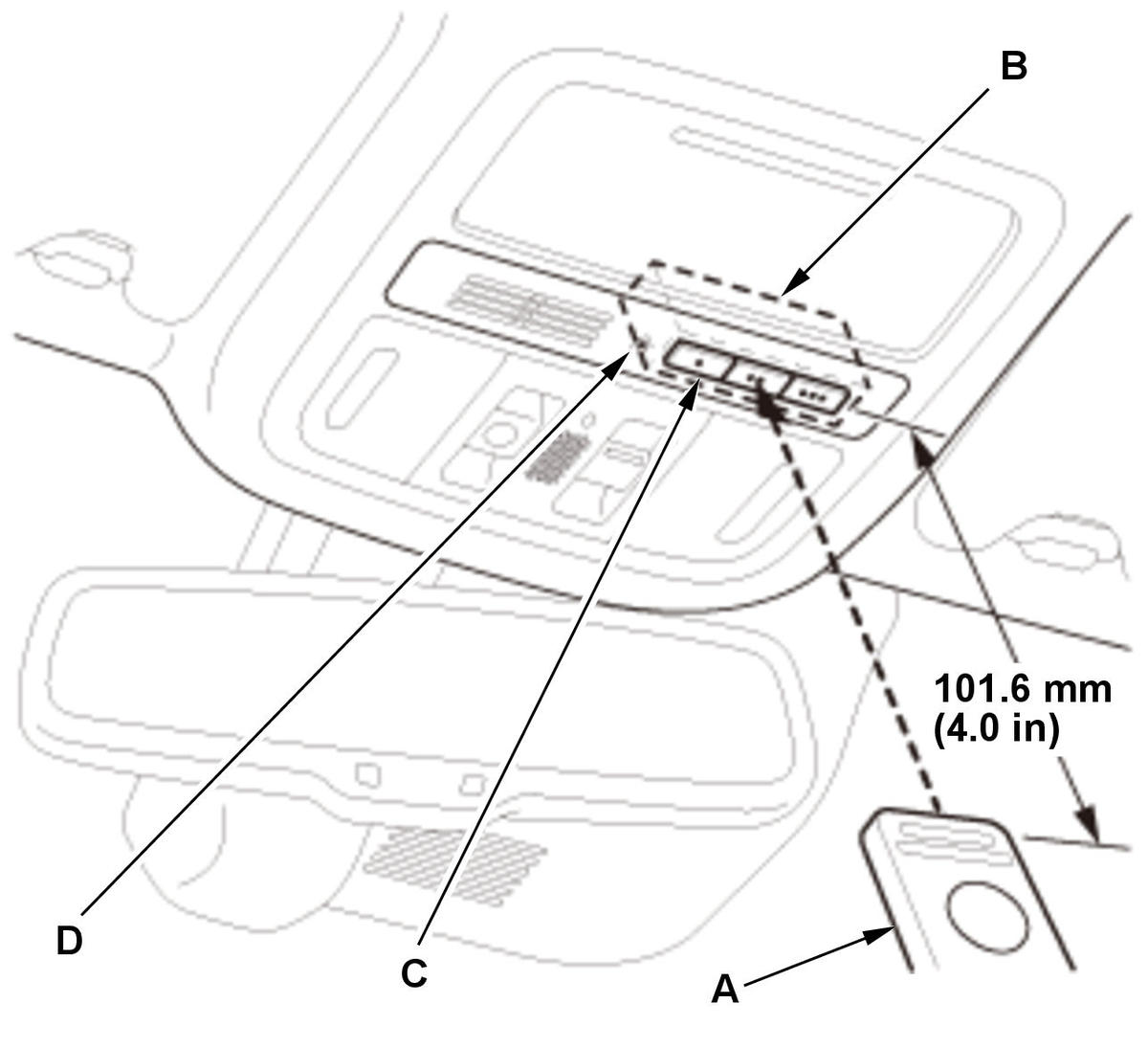

6. Point the test remote transmitter (A) straight up exactly 101.6 mm (4.0 in) away from the HomeLink® unit (B).
7. Press and hold the test transmitter button and one of the HomeLink® switch (C) at the same time.
8. Wait for about 20 seconds while watching the red indicator (D) on the HomeLink® switch.
- If the red indicator starts out blinking slowly and then blinks faster, the unit is OK. Release the switches, then clear the learned code (see step 1). For more information, contact the HomeLink® assistance desk at 800-355-3515 or go online to www.homelink.com.
- If the red indicator does not blink, the HomeLink® unit is faulty; replace it .
