Removal and Installation

NOTE:

How to read the torque specifications .

If the keyless access/TPMS control unit is replaced, do the keyless access registration and memorizing the tire pressure sensor ID . If the original keyless access/TPMS control unit is installed, confirm that all systems work properly.

Glove Box - Remove

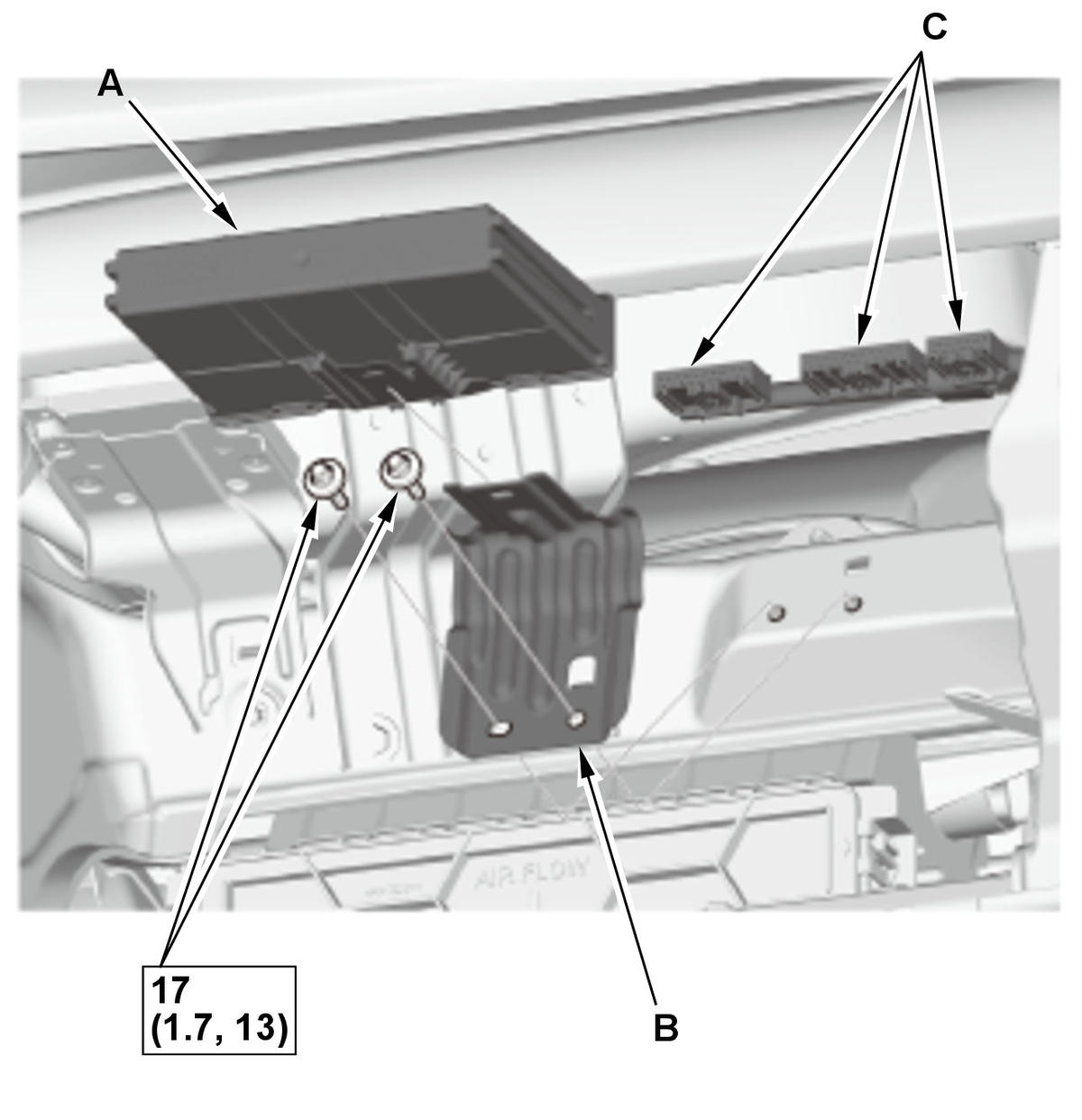

Keyless Access/TPMS Control Unit - Remove

Courtesy of HONDA, U.S.A., INC.

1. Remove the bolts.

2. Remove the keyless access/TPMS control unit (A) with the bracket (B).

3. Disconnect the connectors (C).

4. Remove the keyless access/TPMS control unit from the bracket.

All Removed Parts - Install

1. Install the parts in the reverse order of removal.

NOTE: If the bolt threads of the steering hanger beam are stripped, replace the bolts with one-size larger bolts (available as a service part), which are specifically designed to tighten the instrument panel to the specified torque setting.

Keyless Access System - Register
Tire Pressure Sensor ID - Memorize
