LaneWatch Camera Aiming: Notes

Special Tools Required

Image Description/Tool Number

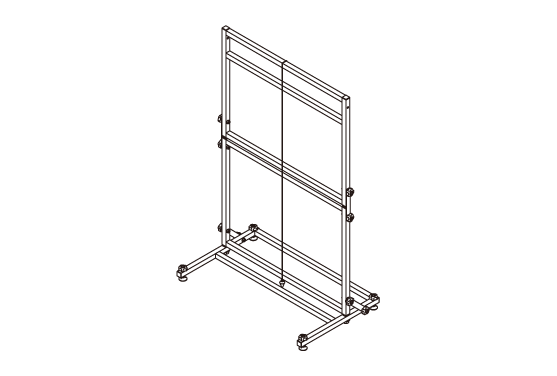

GHH231940Courtesy of HONDA, U.S.A., INC.
 LaneWatch Aiming Stand Set 070AK-T2AA100

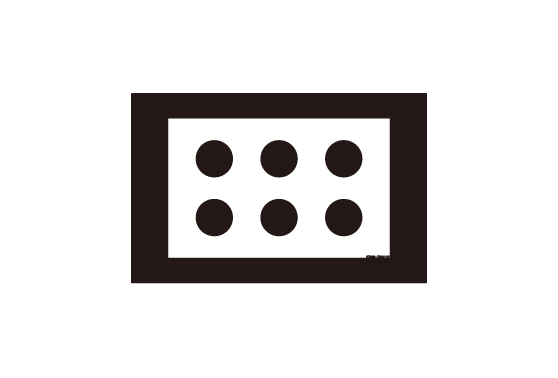

GHH231941Courtesy of HONDA, U.S.A., INC.
 Aiming Marker 070AK-T2AA110
