Power Window Motor Removal, Installation, and Test: Test

Motor Test (Driver's)

1. Driver's Door Panel - Remove
2. Driver's Power Window Motor - Test

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

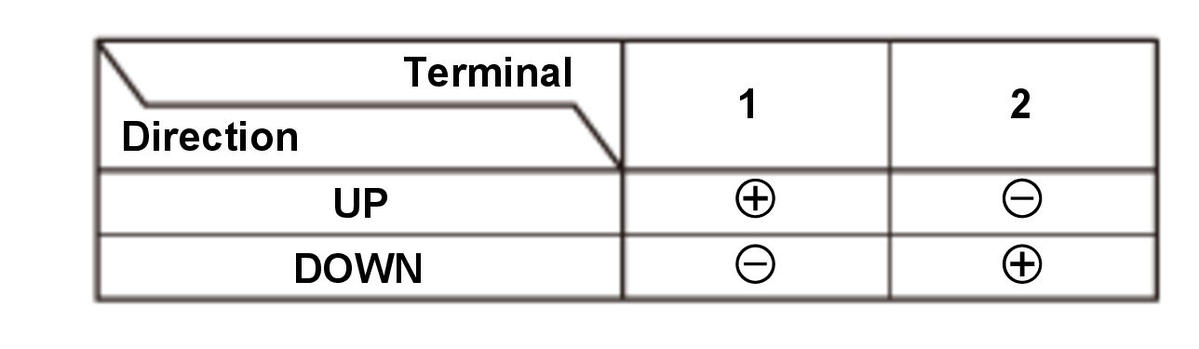

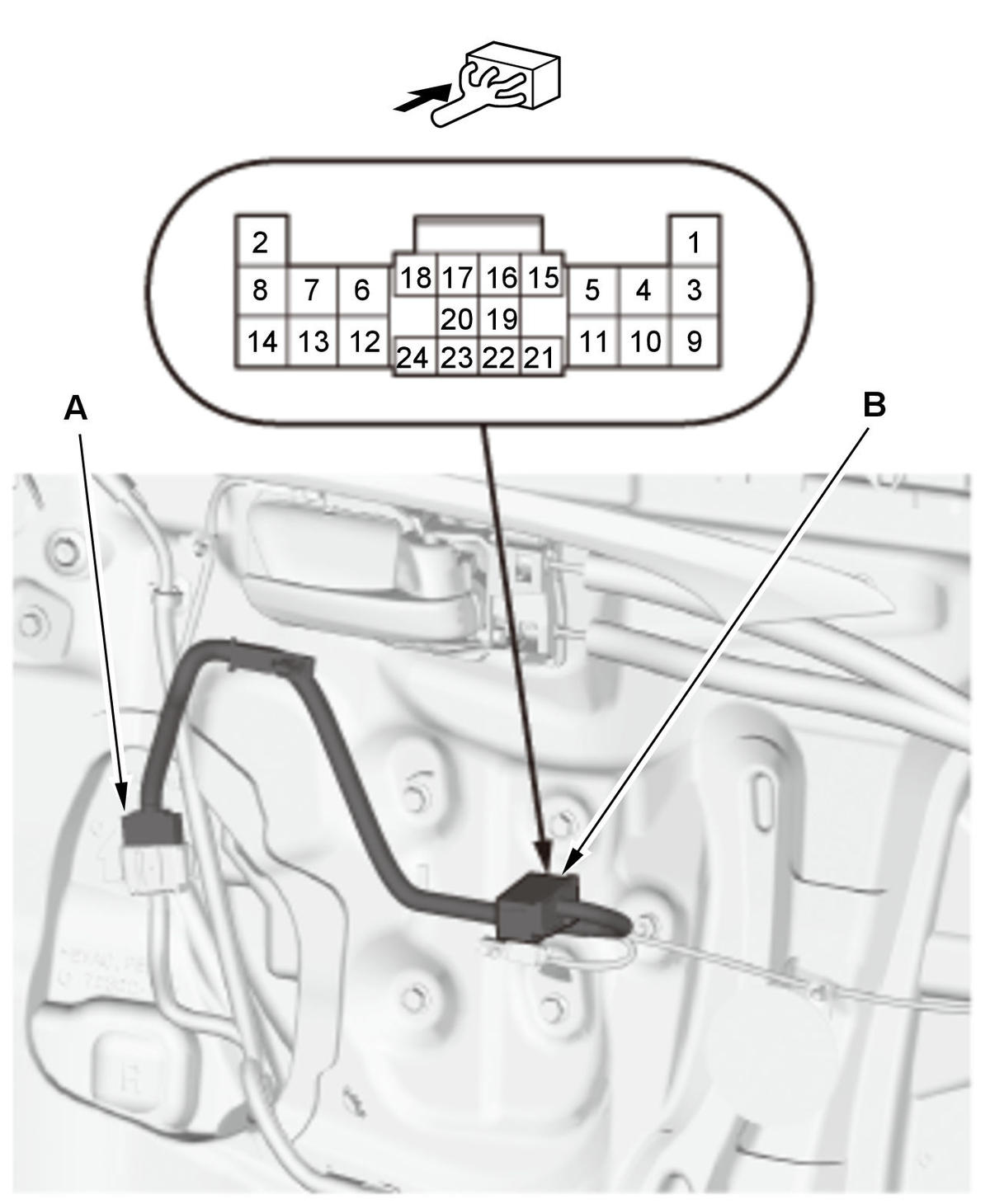

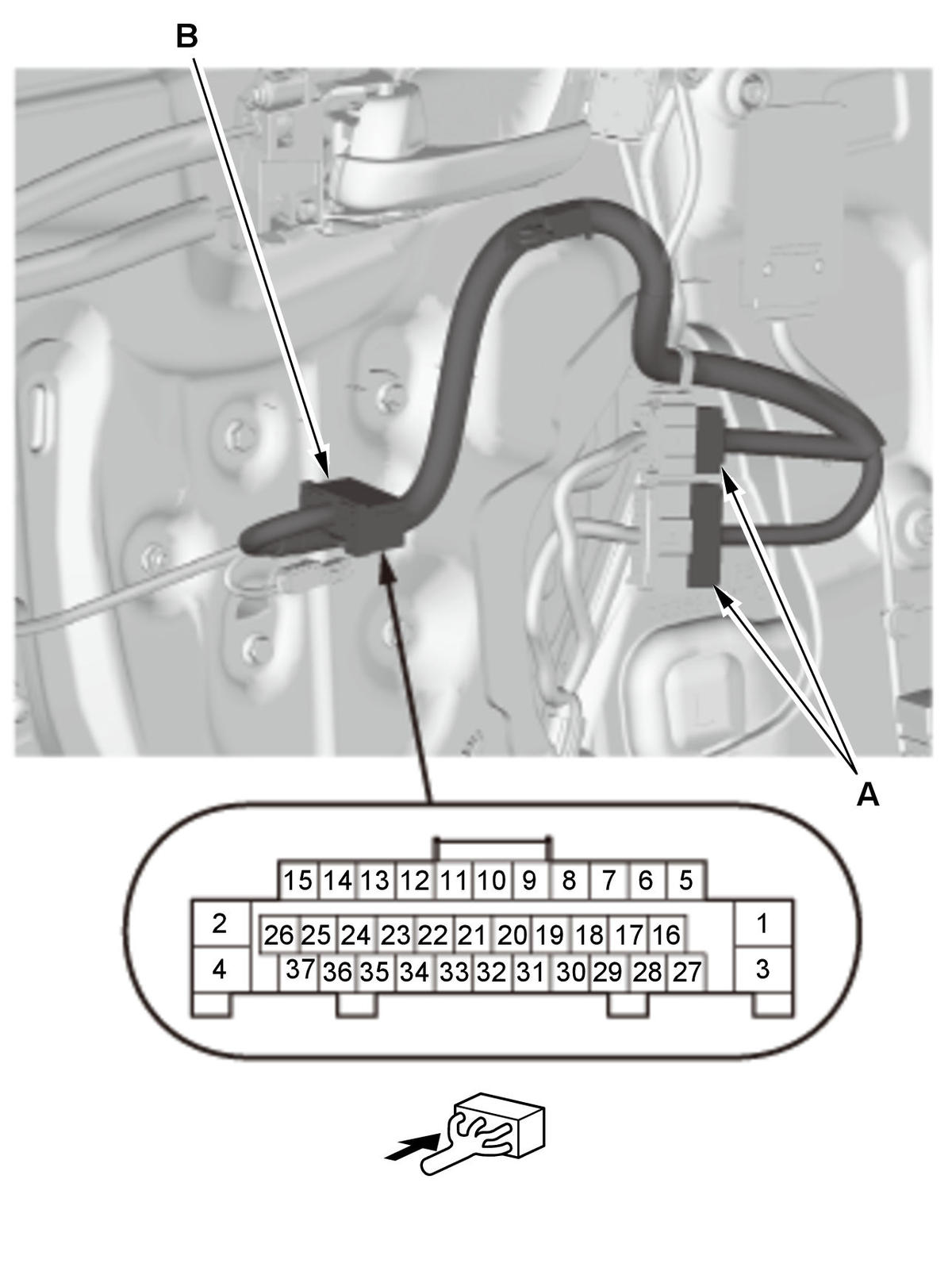

   NOTE:  Before testing, make sure not to short the power window motor circuit. 1. Connect the connectors (A), then install the door panel as needed. 2. Test the motor in each direction by connecting 12 volt battery power and ground to the connector (B) according to the table. When the motor stops running, disconnect 12 volt battery power immediately. If the motor does not run or fails to run smoothly, remove the driver's door regulator  , then go to step 3.

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

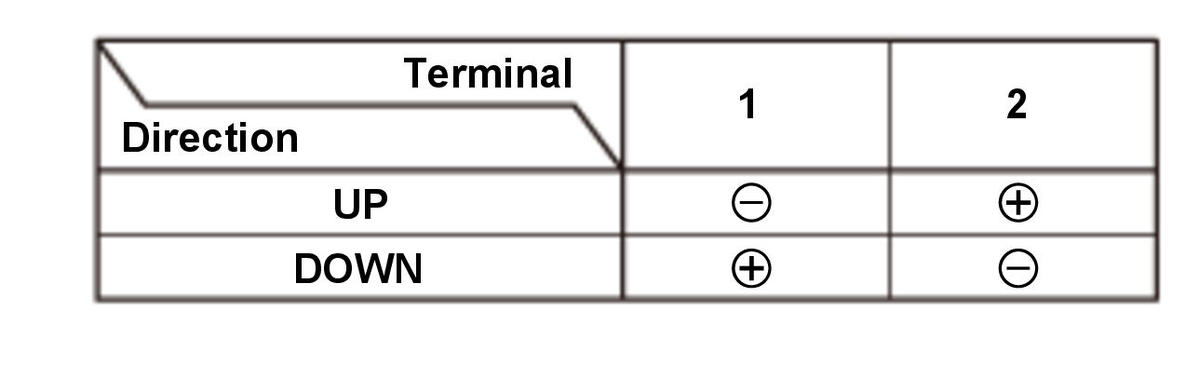

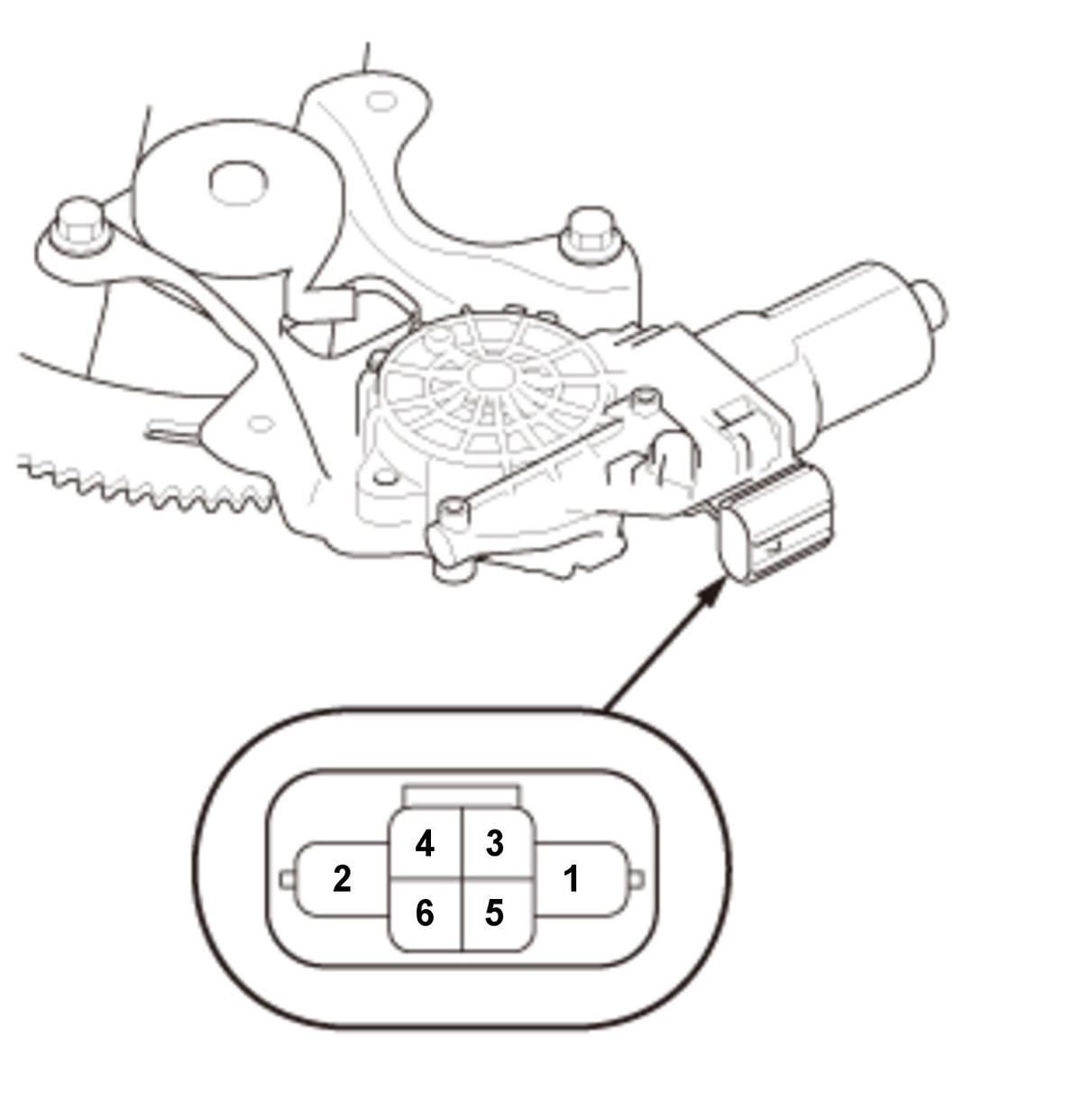

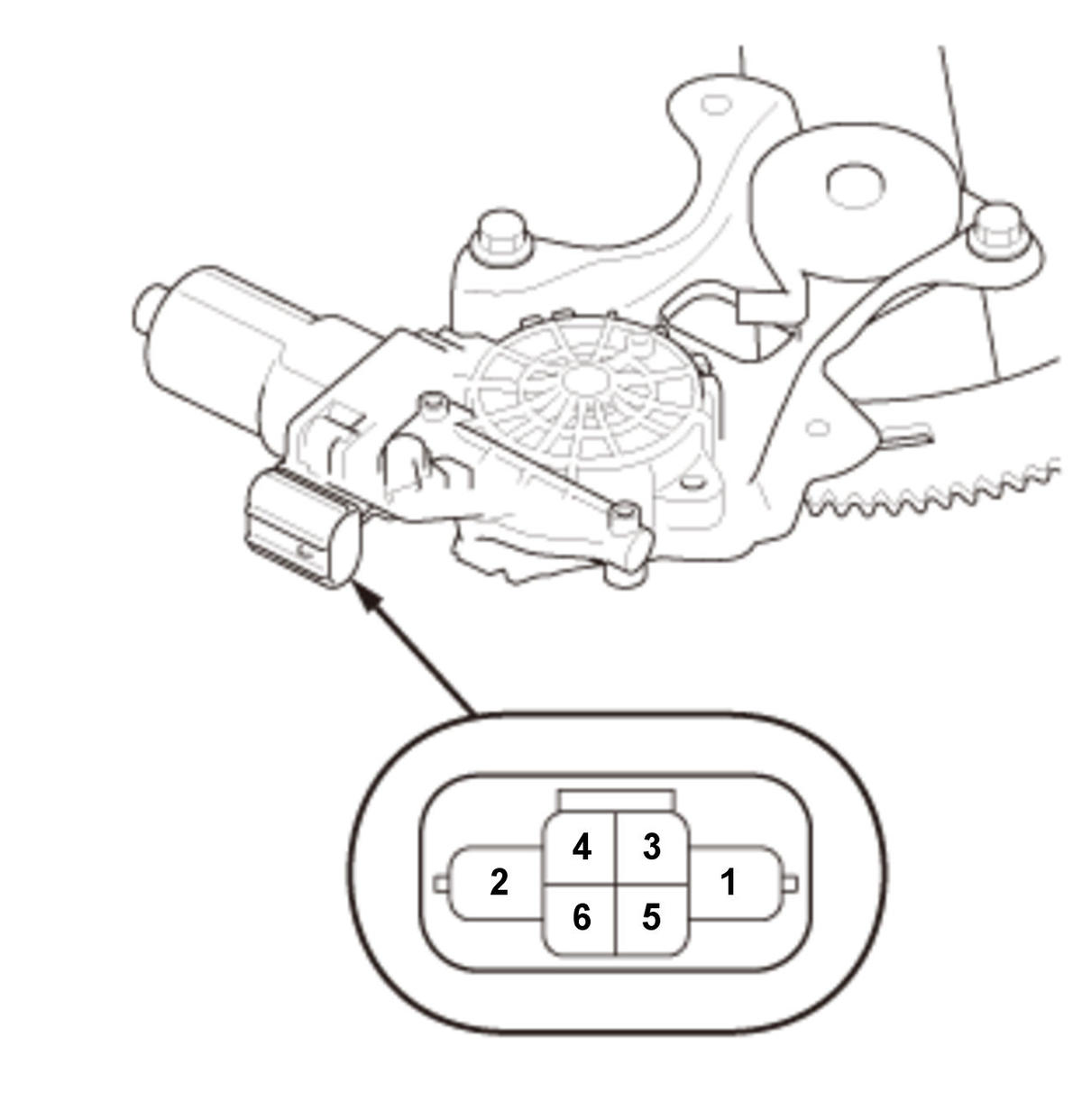

   3. Test the driver's power window motor by connecting 12 volt battery power and ground according to the table. When the motor stops running, disconnect 12 volt battery power immediately. 4. If the motor does not run or fails to run smoothly, the driver's power window motor is faulty; replace the driver's power window motor. If the motor runs smoothly, replace the wire harnesses.

   Motor Test (Front Passenger's)

3. Front Passenger's Door Panel - Remove
4. Front Passenger's Power Window Motor - Test

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

   NOTE:  Before testing, make sure not to short the power window motor circuit. 1. Connect the connector (A), then install the door panel as needed. 2. Test the motor in each direction by connecting 12 volt battery power and ground to the connector (B) according to the table. When the motor stops running, disconnect 12 volt battery power immediately. If the motor does not run or fails to run smoothly, remove the front passenger's door regulator , then go to step 3.

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

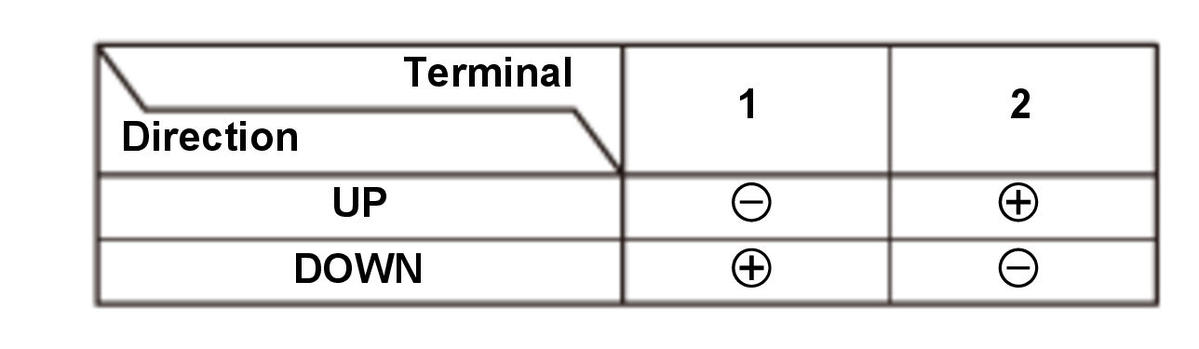

   3. Test the front passenger's power window motor by connecting 12 volt battery power and ground according to the table. When the motor stops running, disconnect 12 volt battery power immediately. 4. If the motor does not run or fails to run smoothly, the front passenger's power window motor is faulty; replace the front passenger's power window motor. If the motor runs smoothly, replace the wire harnesses.

   Motor Test (Rear)

5. Rear Door Panel - Remove
6. Rear Power Window Motor - Test

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

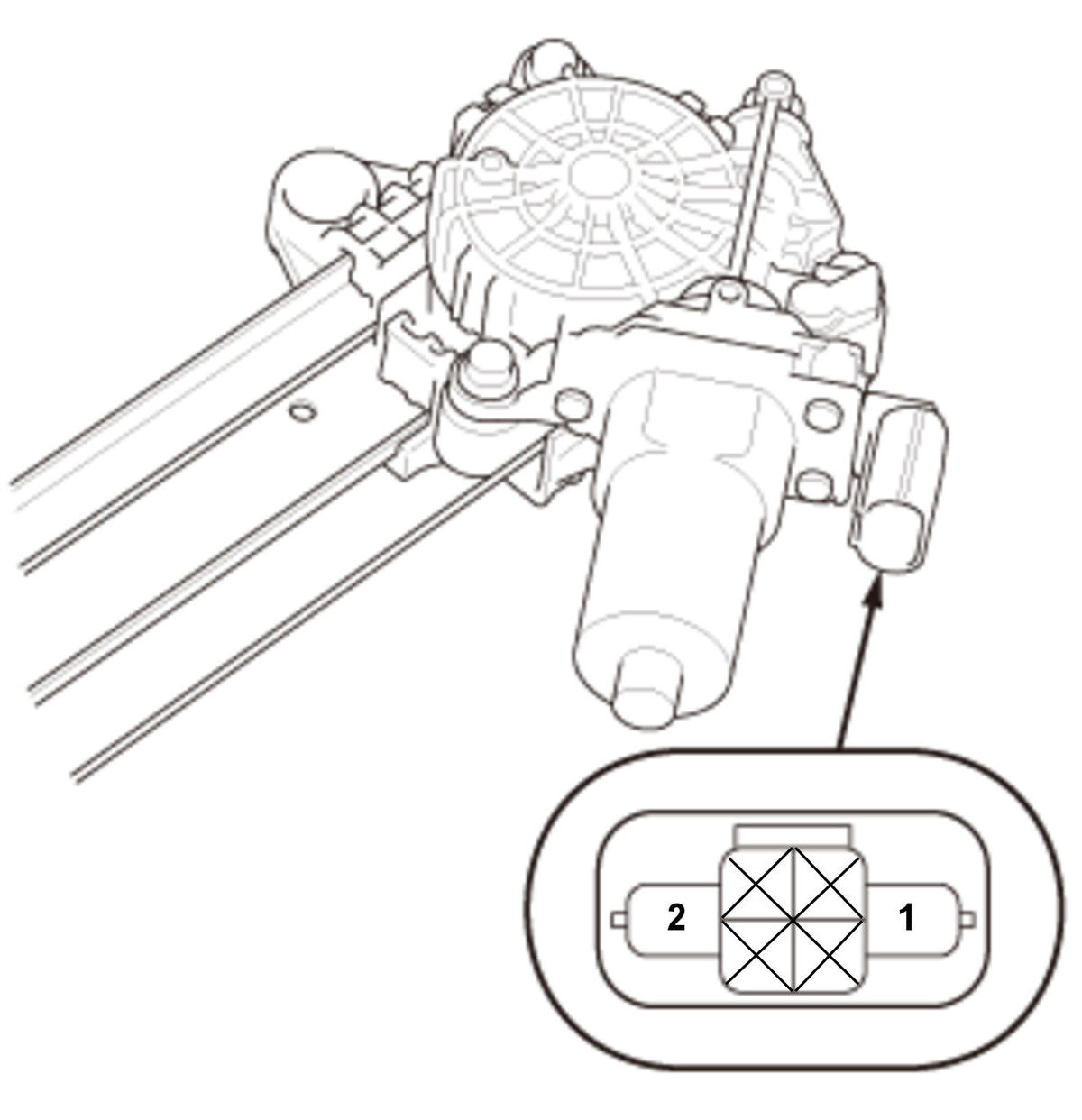

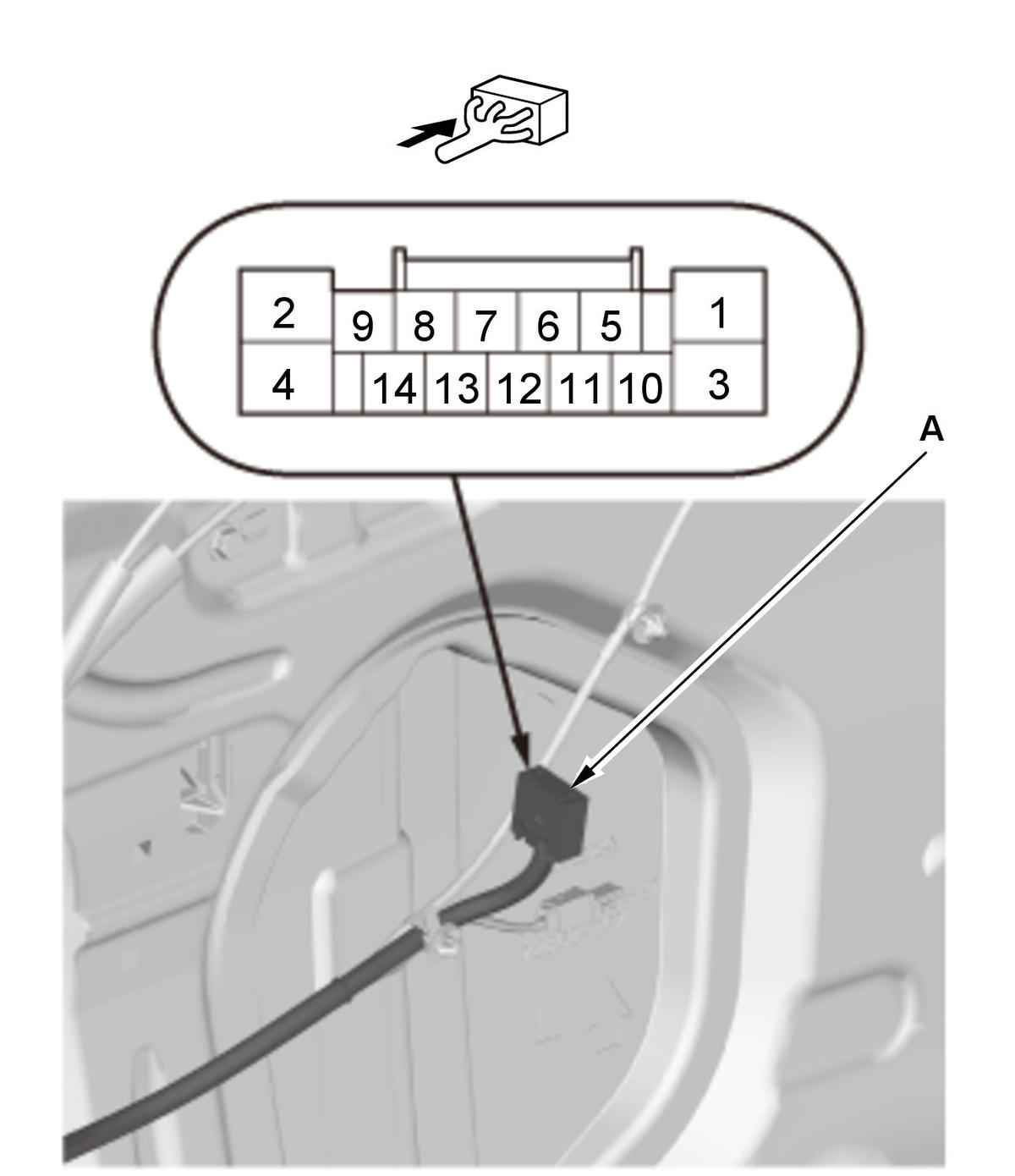

   NOTE:  Before testing, make sure not to short the power window motor circuit. 1. Test the motor in each direction by connecting 12 volt battery power and ground at the connector (A) according to the table. When the motor stops running, disconnect 12 volt battery power immediately. If the motor does not run or fails to run smoothly, remove the rear door regulator , then go to step 2.

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

   2. Test the rear power window motor by connecting 12 volt battery power and ground according to the table. When the motor stops running, disconnect 12 volt battery power immediately. 3. If the motor does not run or fails to run smoothly, the rear power window motor is faulty; replace the rear door regulator . If the motor runs smoothly, replace the wire harness or adjust the rear door glass .

7. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.

   Motor Test (Back)

8. Roof Console Module - Remove
9. Rear Power Window Motor - Test

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

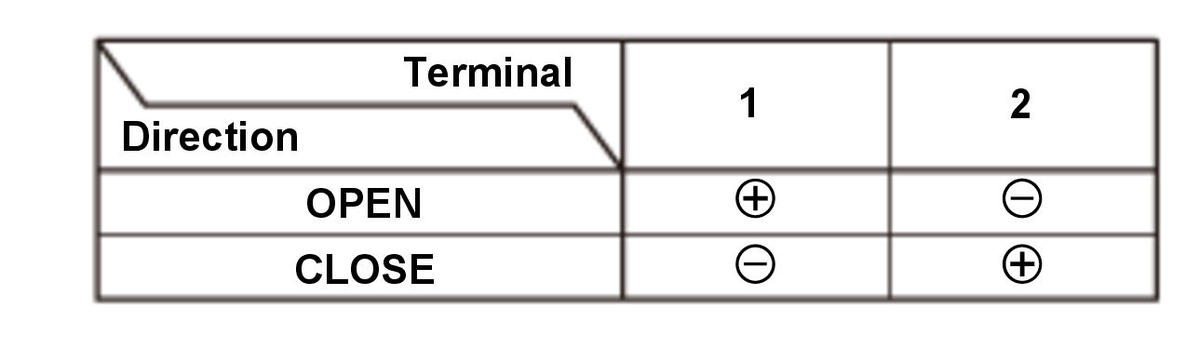

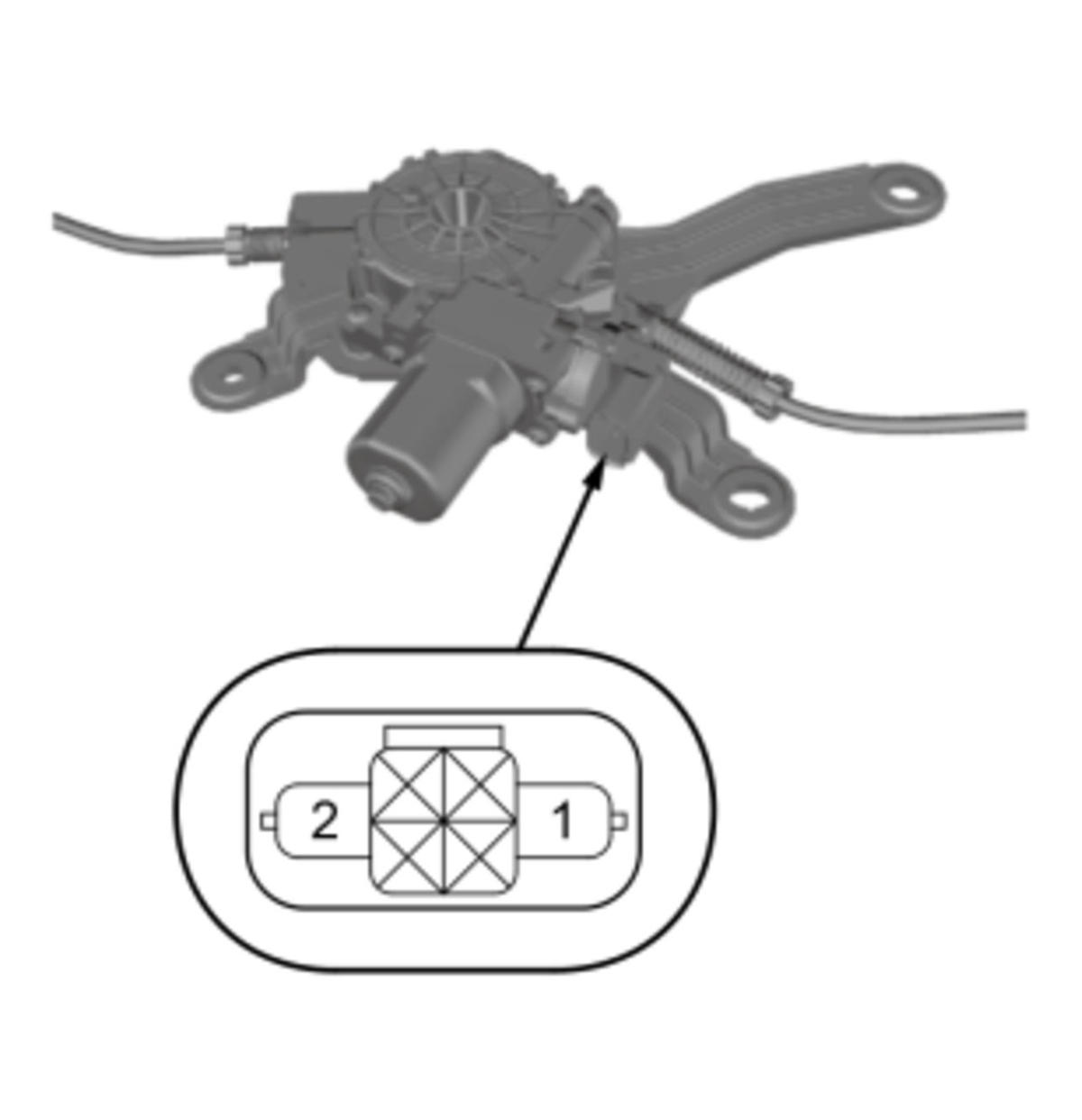

   NOTE:  Before testing, make sure not to short the power window motor circuit. 1. Test the motor in each direction by connecting 12 volt battery power and ground at the connector (A) according to the table. When the motor stops running, disconnect 12 volt battery power immediately. If the motor does not run or fails to run smoothly, remove the rear window center glass regulator , then go to step 2.

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

   2. Test the back power window motor by connecting 12 volt battery power and ground according to the table. When the motor stops running, disconnect 12 volt battery power immediately. 3. If the motor does not run or fails to run smoothly, the back power window motor is faulty; replace the rear window center glass regulator . If the motor runs smoothly, replace the wire harness.

10. All Removed Parts - Install

    1. Install the parts in the reverse order of removal.
