Driving Position Memory System (DPMS) Circuit Diagram (2020)

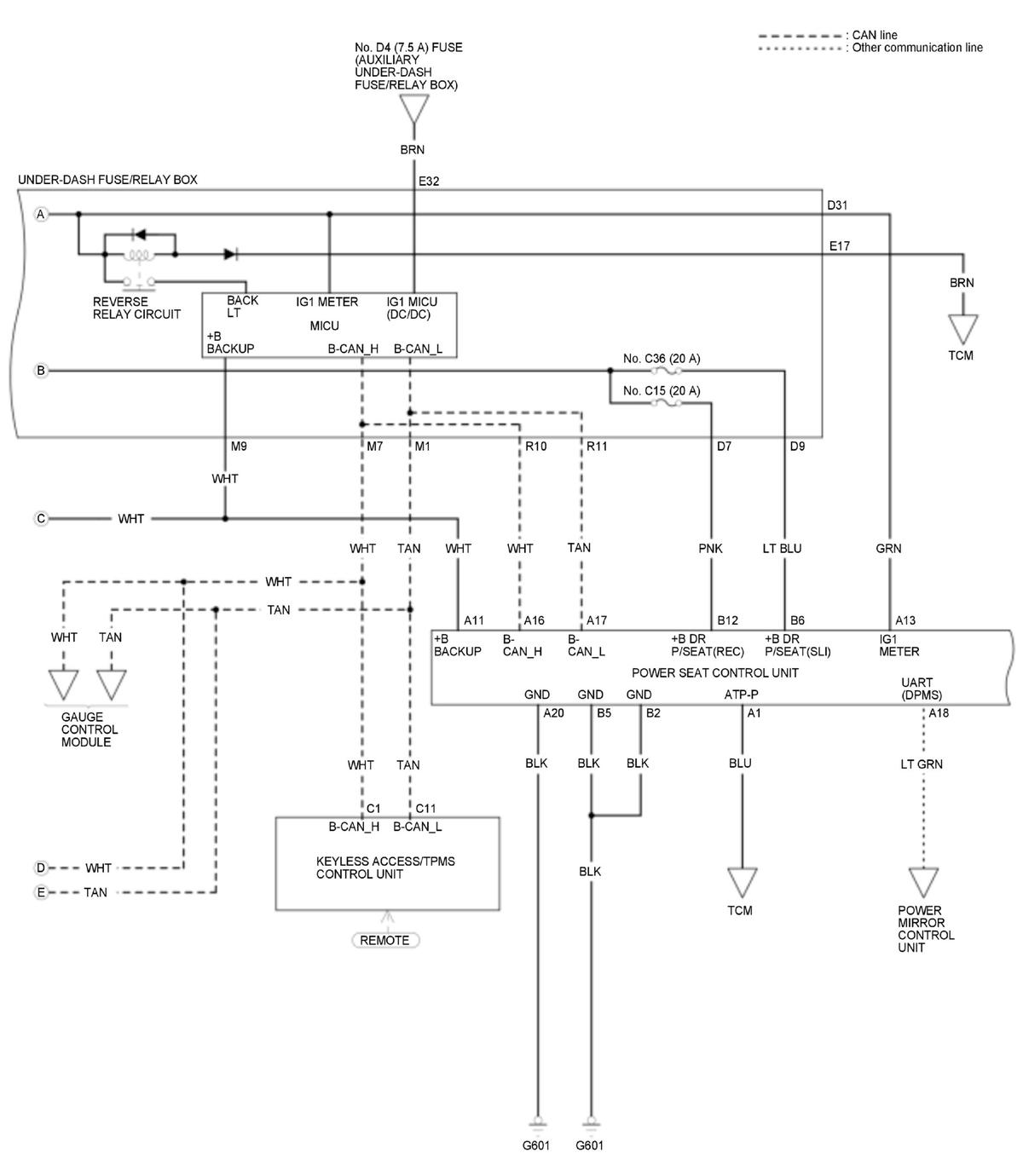

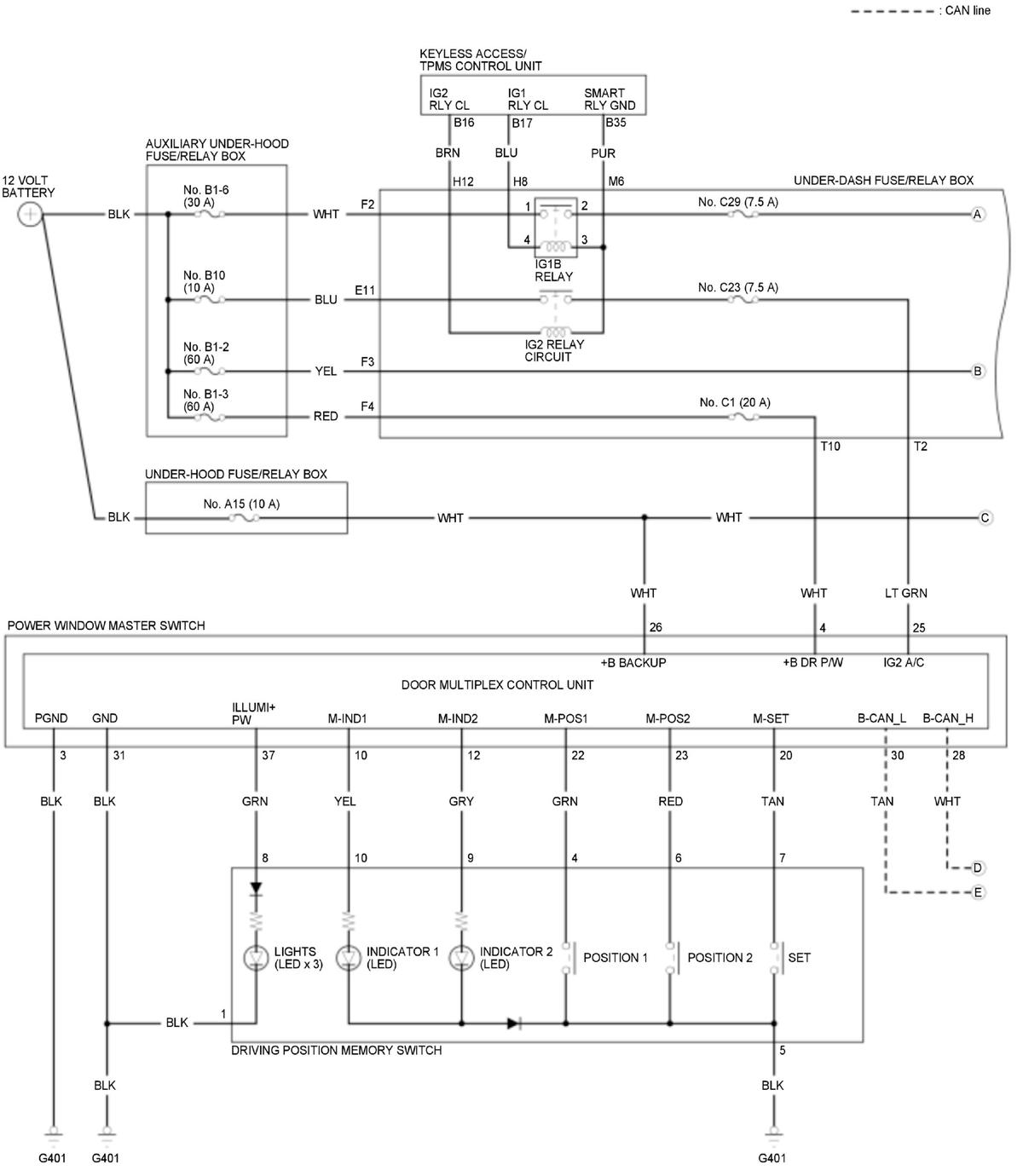

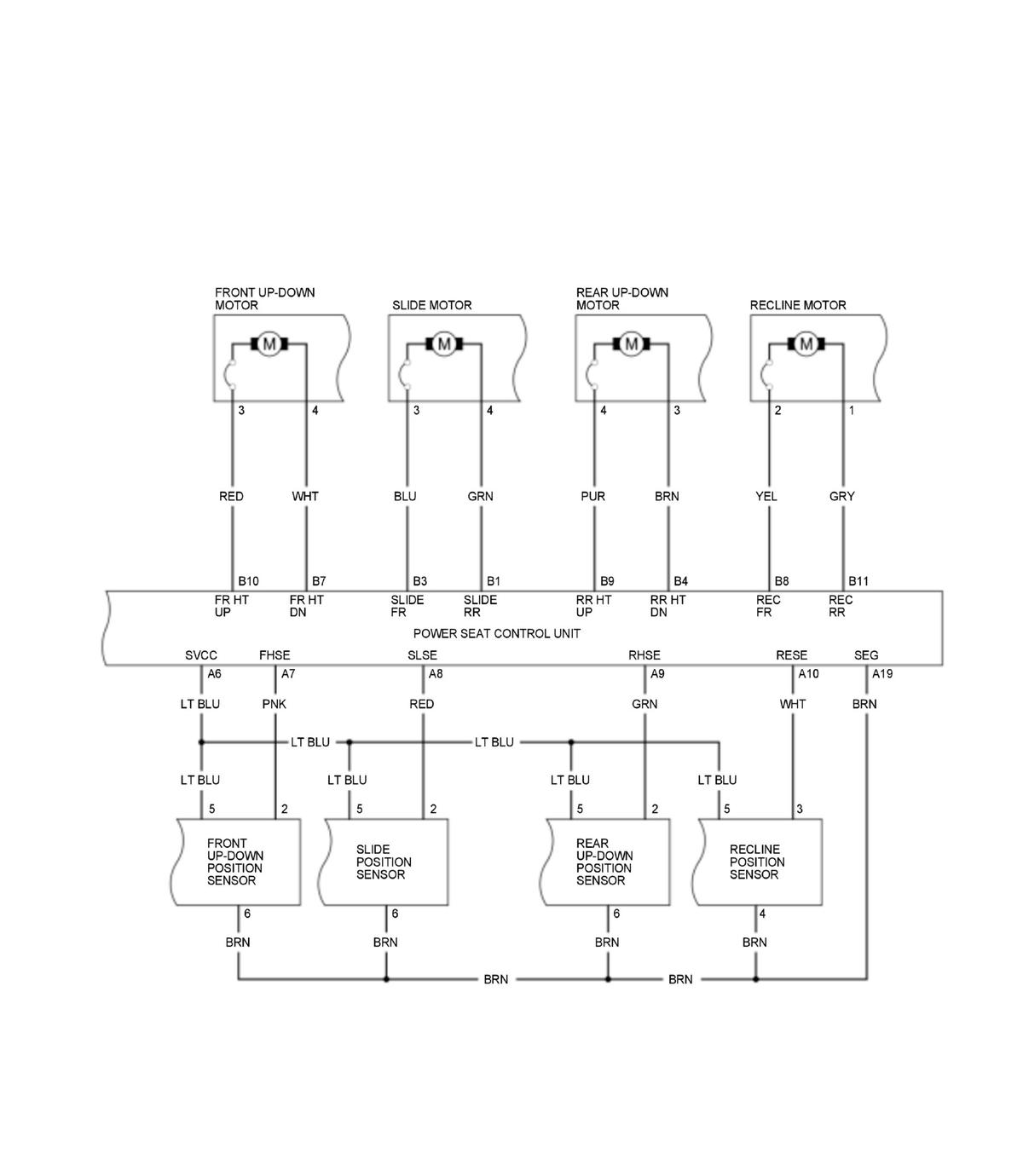

Driver's Power Seat

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

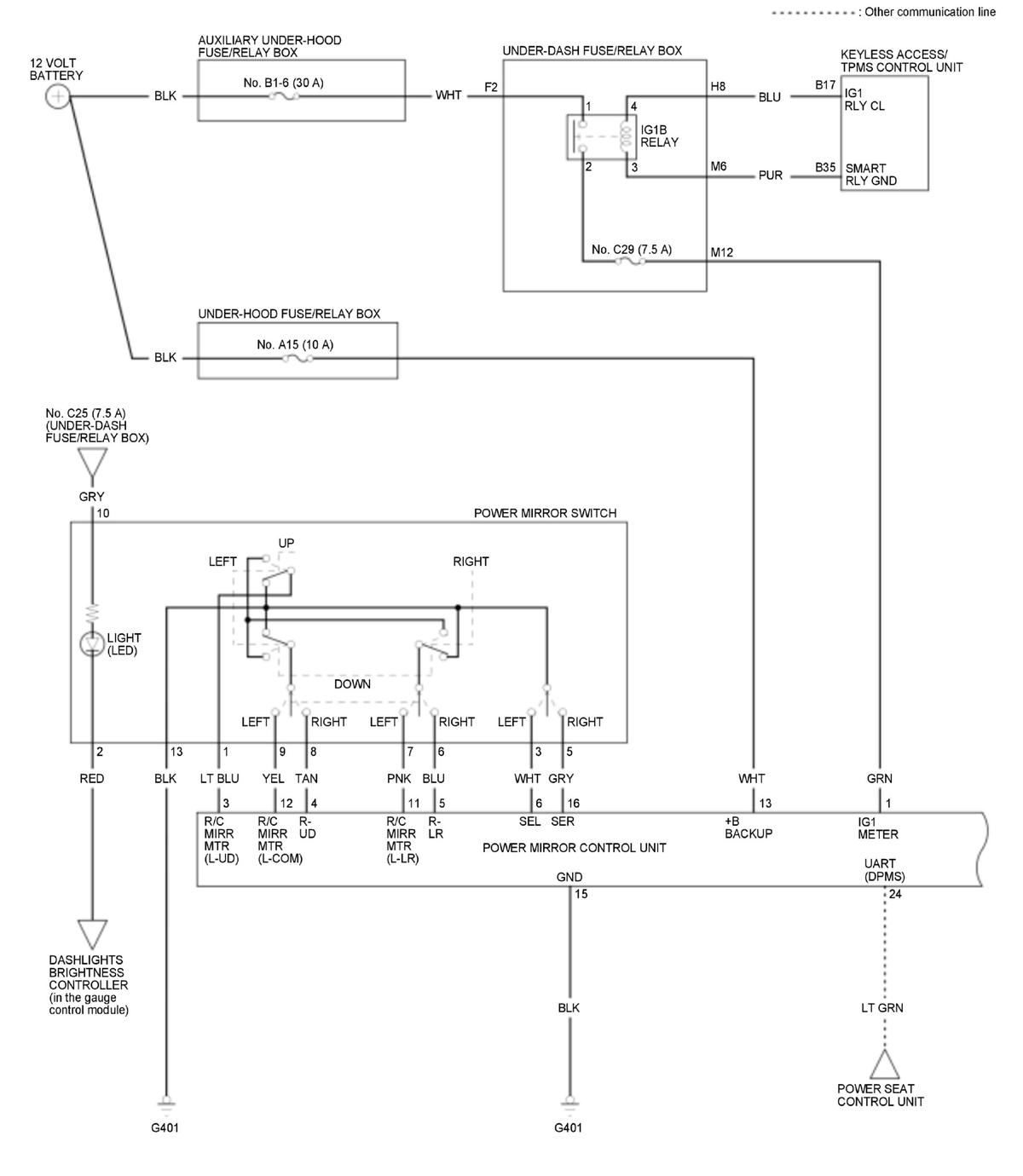

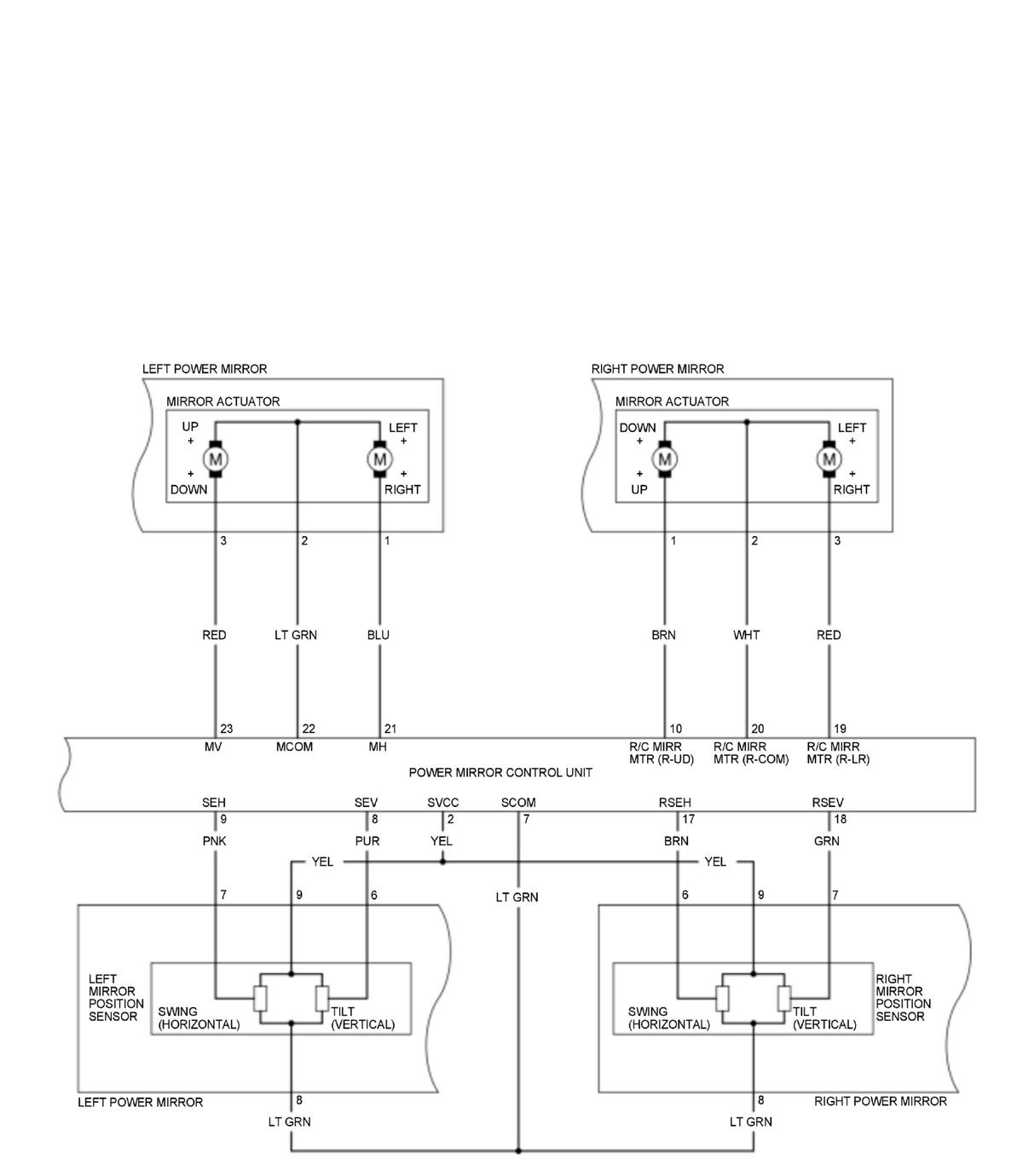

Power Mirror

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
