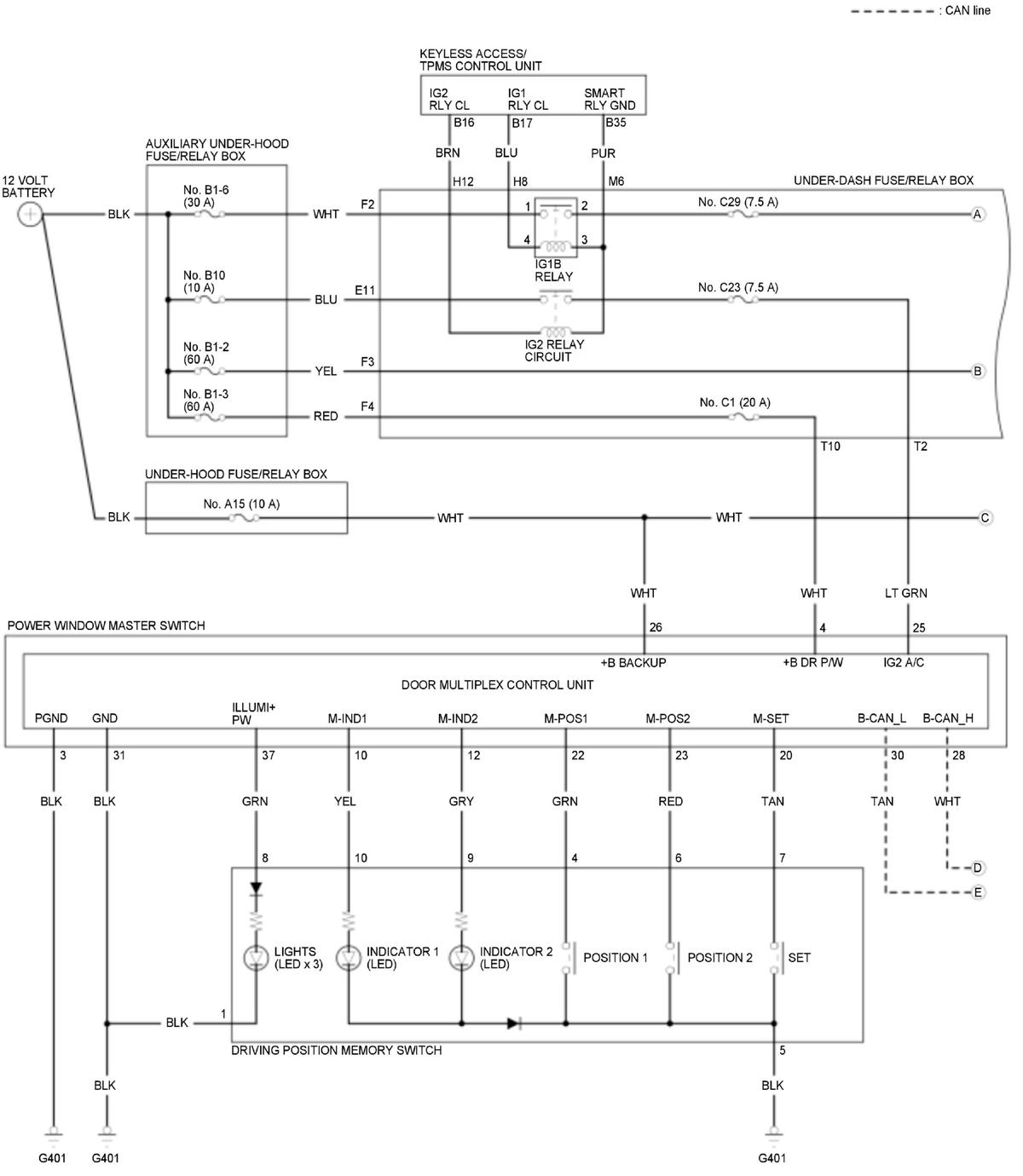

Driving Position Memory System (DPMS) Circuit Diagram (2017 2018 2019)

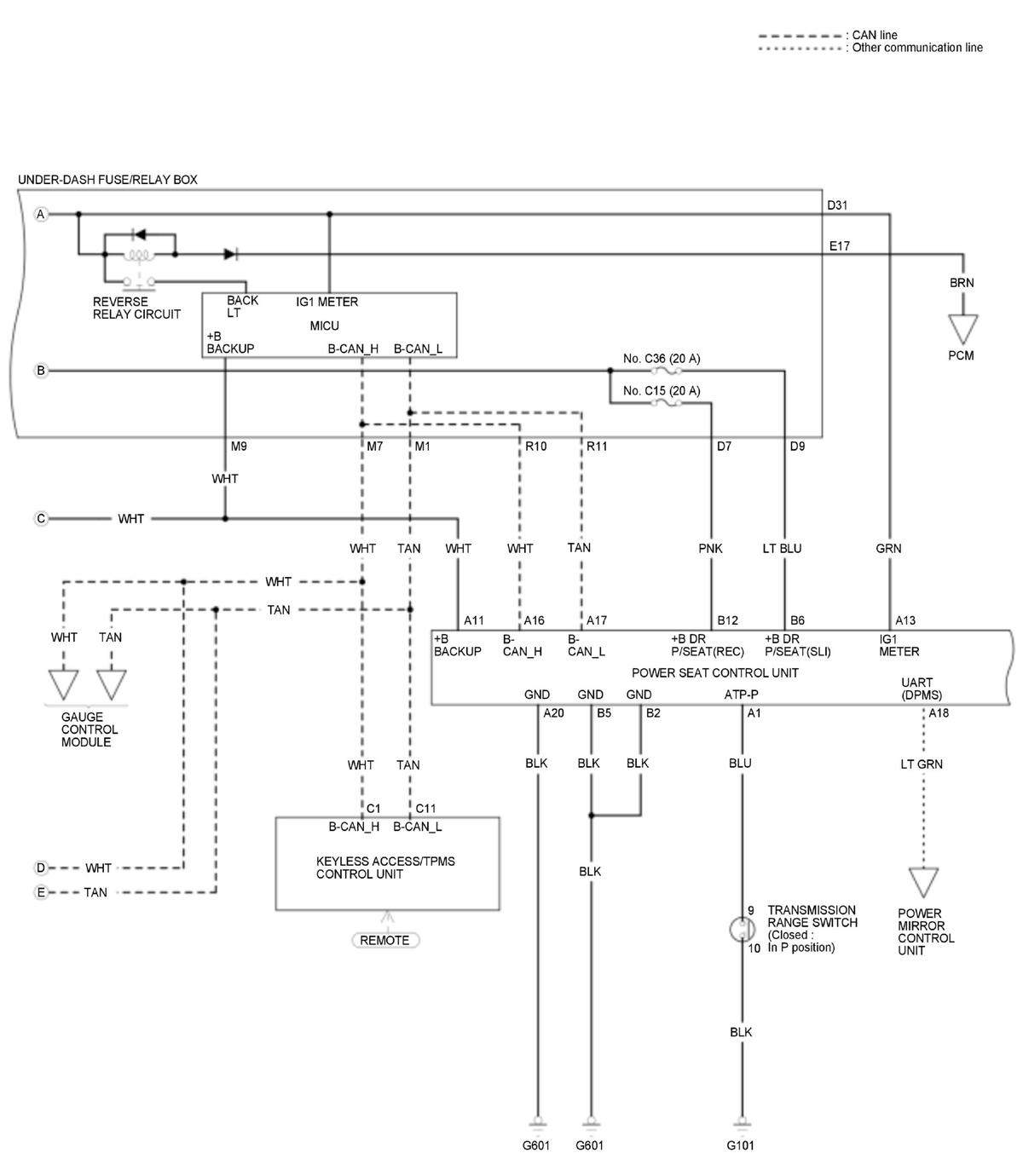

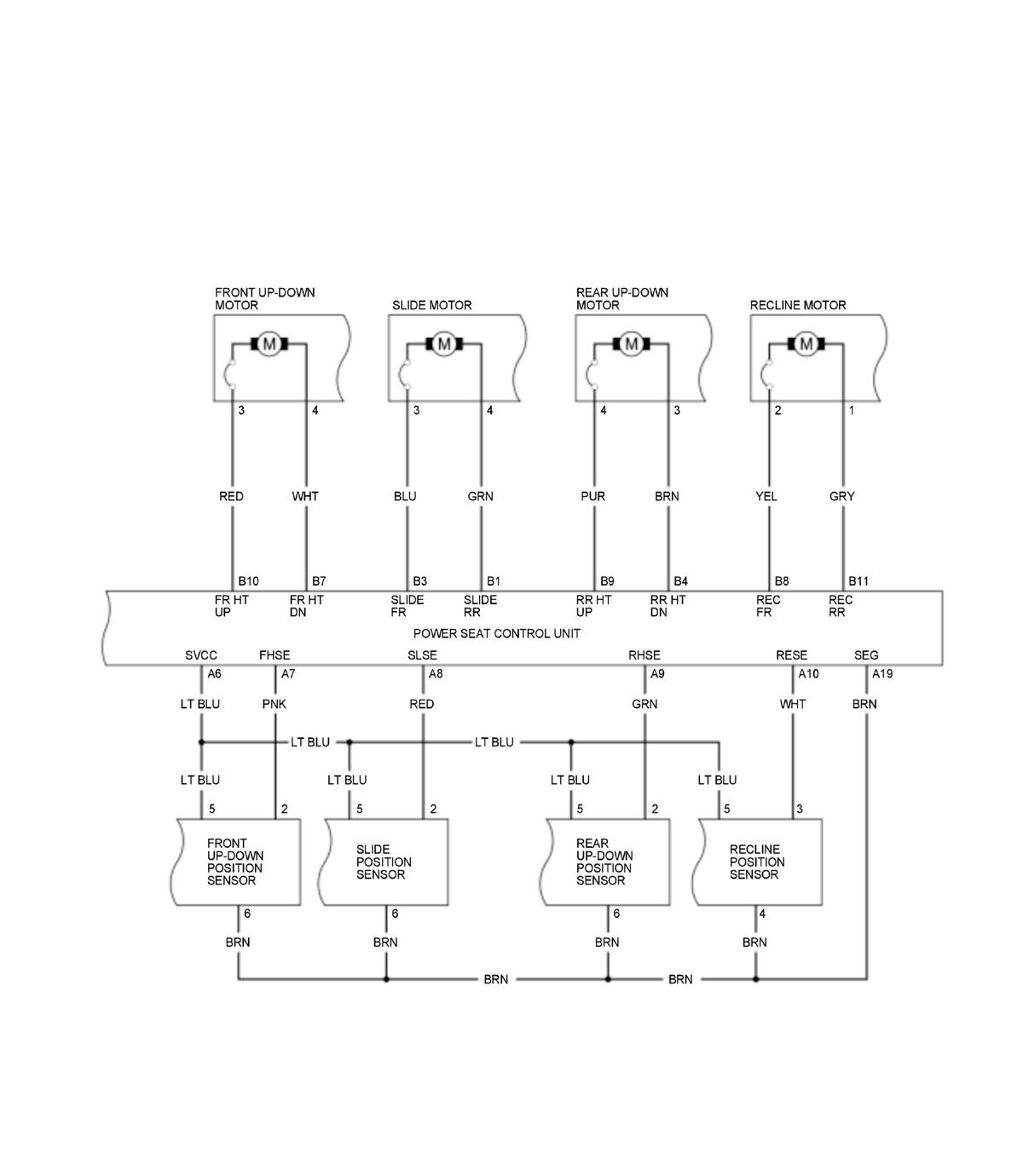

Driver's Power Seat

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

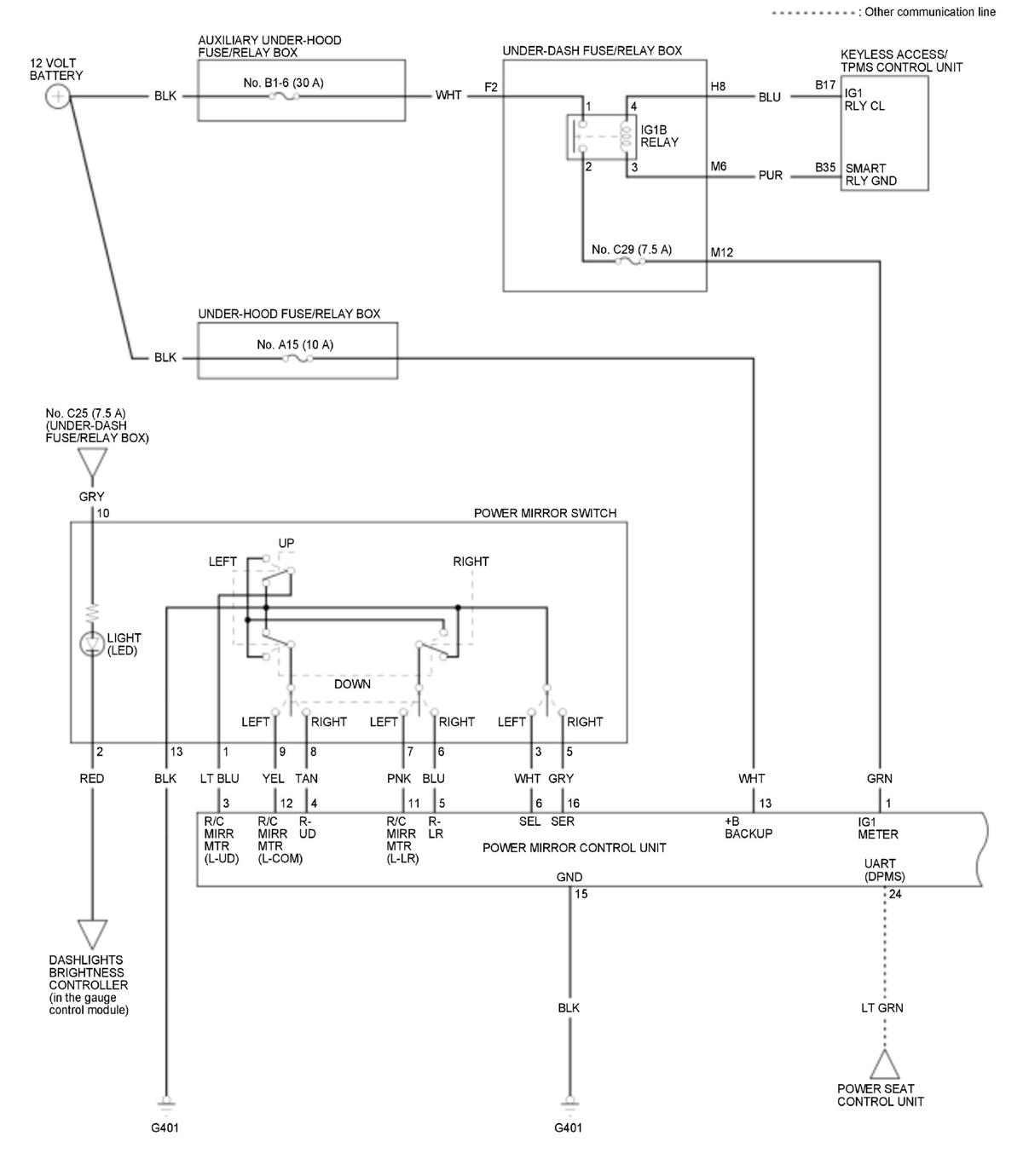

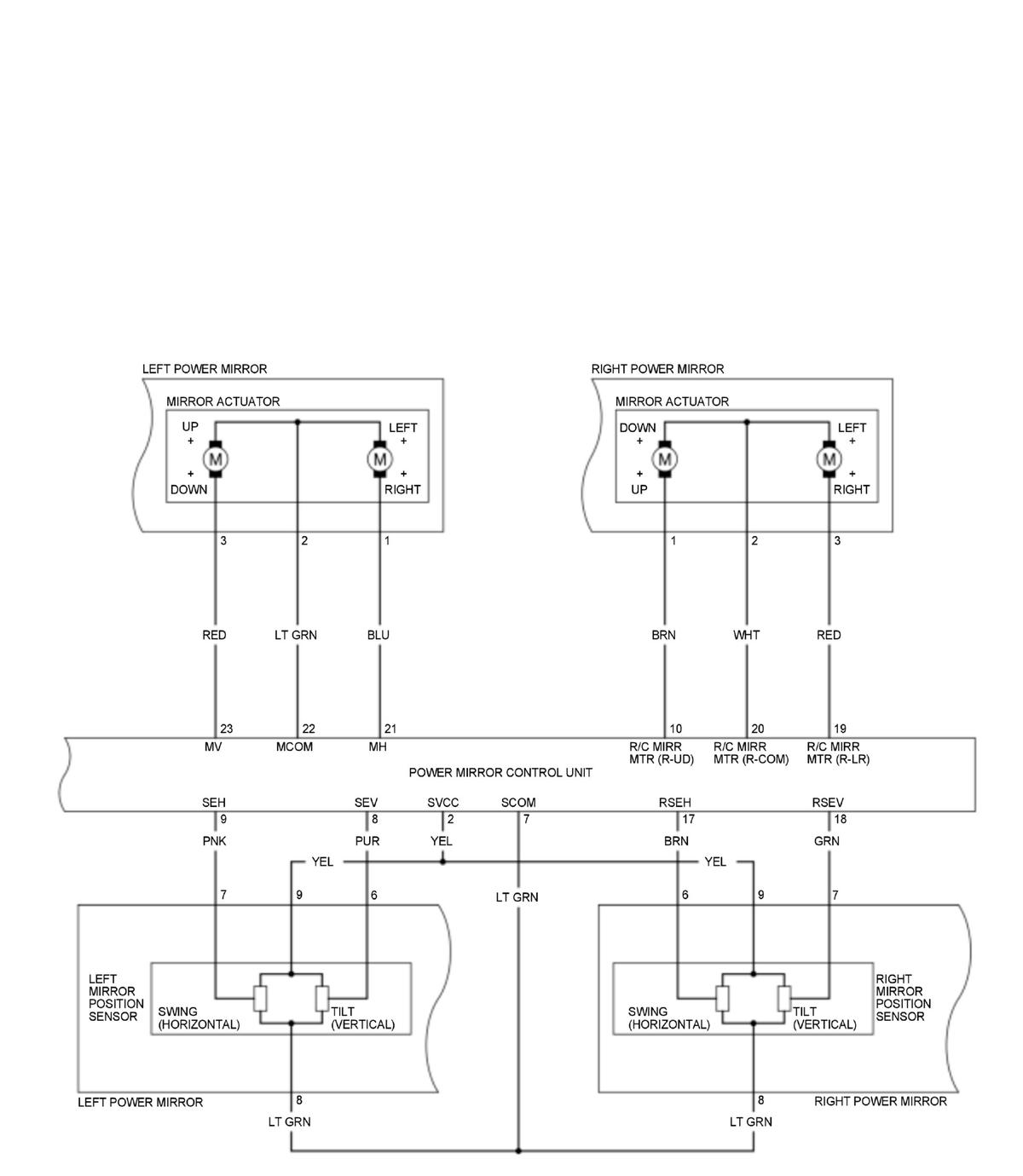

Power Mirror

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
