DTC : P0723: General Description

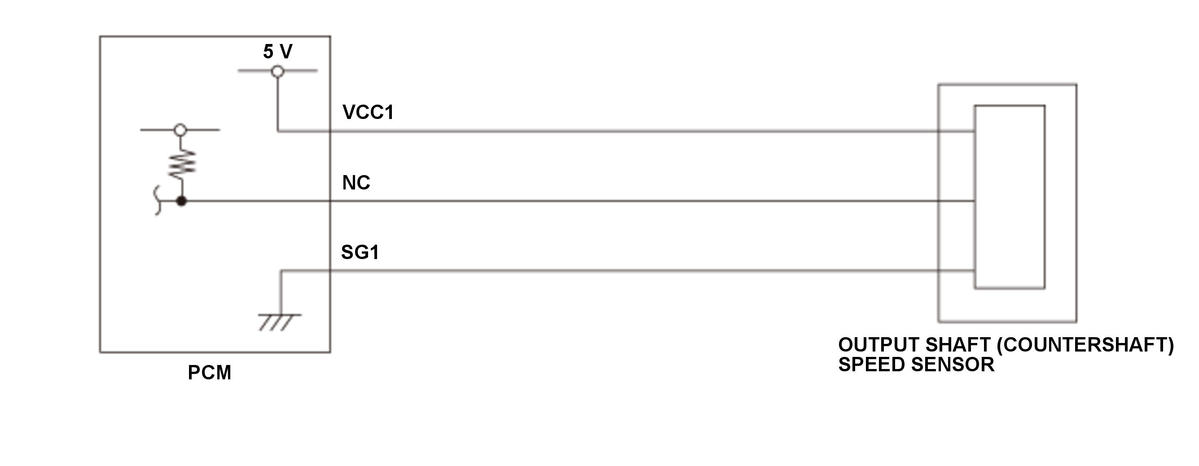

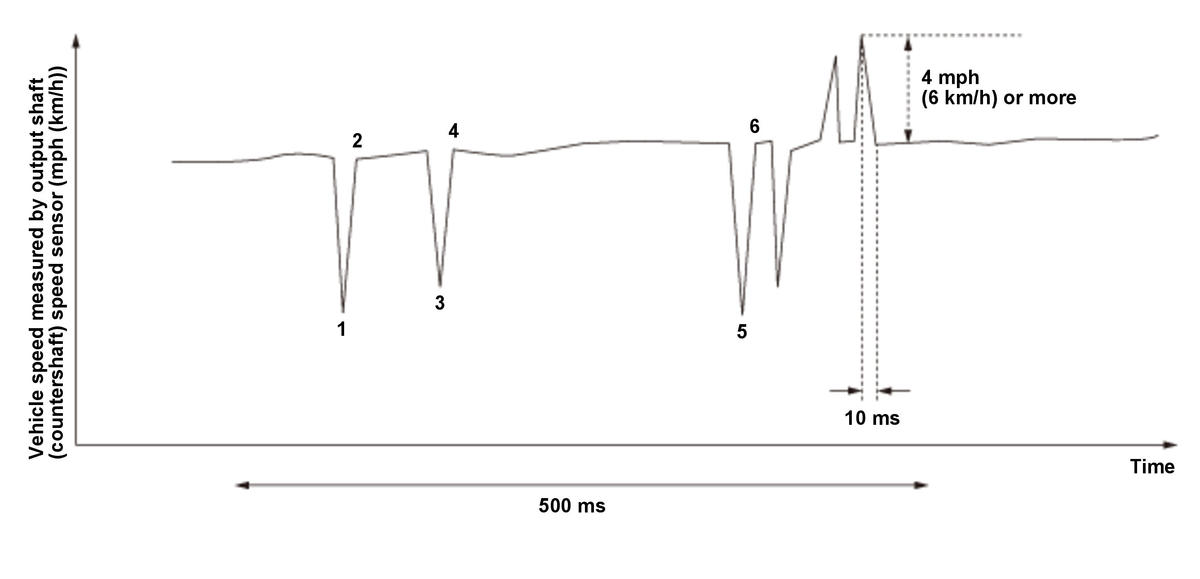

The output shaft (countershaft) speed sensor is attached to the outside of the transmission housing. The output shaft (countershaft) speed sensor generates a pulsing signal according to the speed of the park gear on the output shaft (countershaft). Using that signal, the powertrain control module (PCM) determines the speed of the output shaft (countershaft). If no pulses occur with the output shaft (countershaft) rotating, the PCM detects a malfunction that may be caused by an open, a temporary open, or a short to ground. Based on the fluctuation of the vehicle speed measured by the output shaft (countershaft) speed sensor, the PCM detects a malfunction and stores a DTC.
