DTC : P0703: General Description

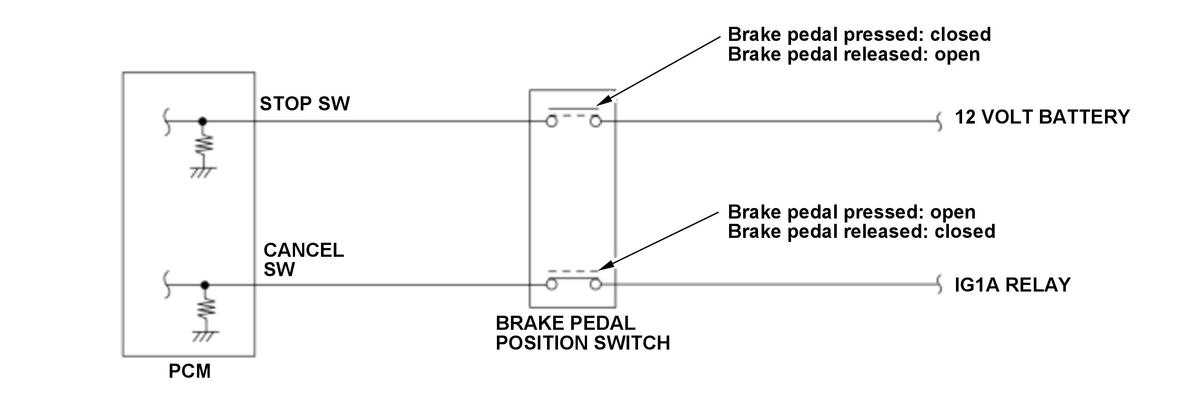

6-Speed A/T:

GHH306737Courtesy of HONDA, U.S.A., INC.

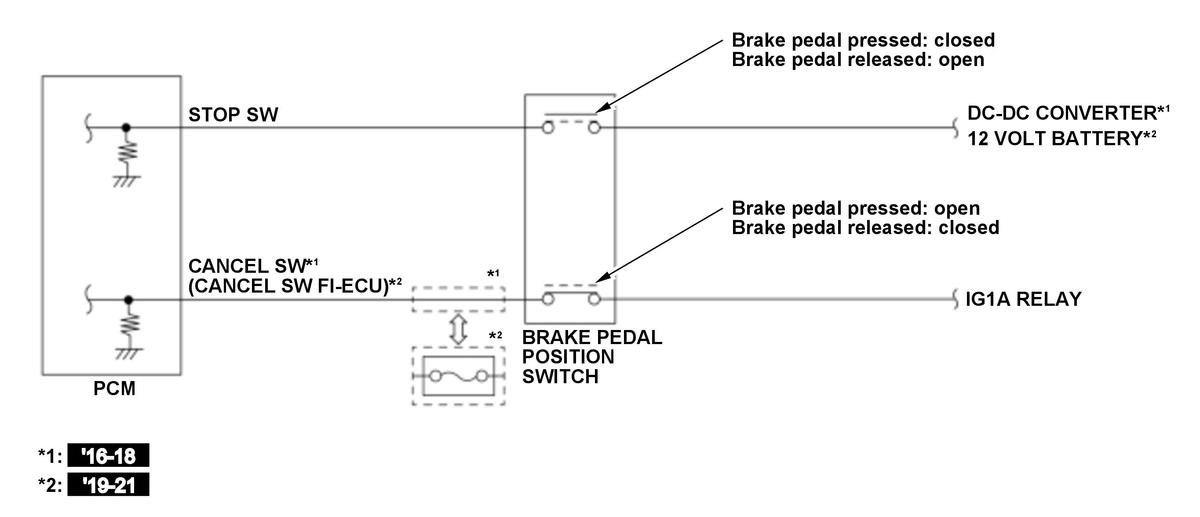

9-Speed A/T:

GHH306738Courtesy of HONDA, U.S.A., INC.

The powertrain control module (PCM) detects a brake pedal position switch malfunction by monitoring the signals from the brake pedal position switch. If the PCM continuously inputs an abnormal signal from brake pedal position switch for a specified time during a specified condition, the PCM detects a malfunction and stores a DTC.
