Mis-Fuel Inhibit Device: Installation

WARNING:

Flammable - Keep Fire Away

1. Main Flap Unit - Install (If necessary)

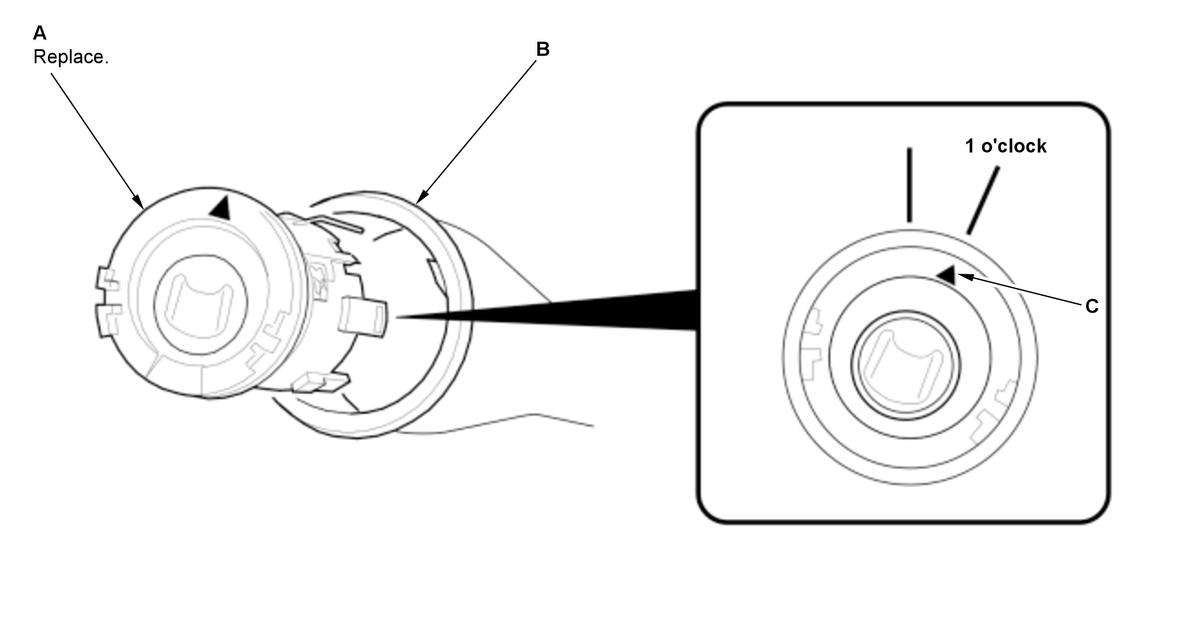

   1. Position the new main flap unit (A) onto the filler neck (B) with the top arrow (C) at the 1 o'clock position.

   Courtesy of HONDA, U.S.A., INC.

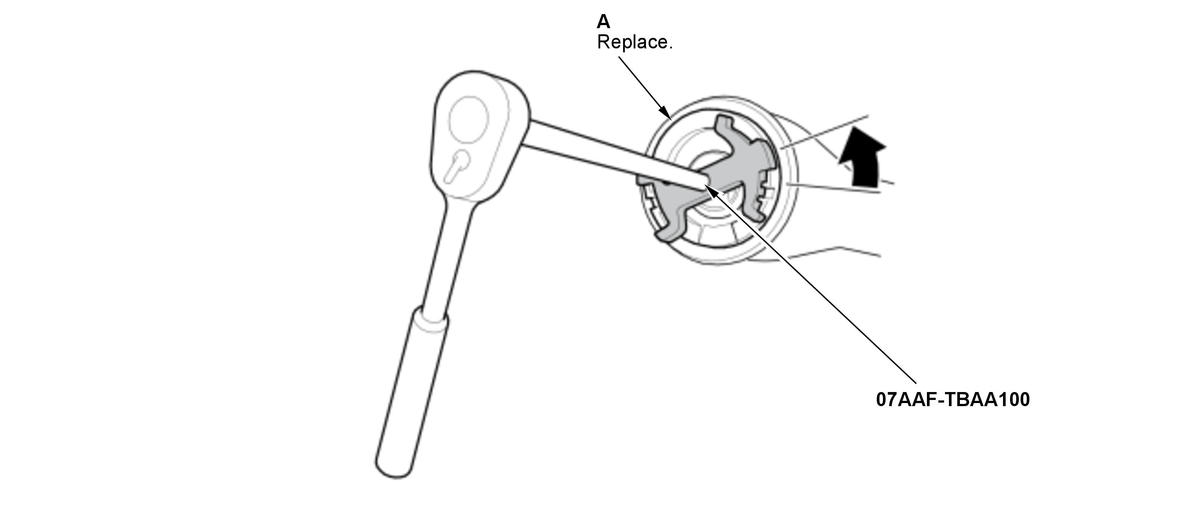

   2. Install the main flap unit (A) by doing the following:

   • Set the capless wrench onto the main flap unit.
   • While pressing down on the capless wrench, turn the main flap unit counterclockwise until you hear a click. The arrow on the main flap unit should face up.
   • Slightly turn the capless wrench clockwise to confirm that the lock tab is engaged. The main flap unit should not turn.

   Courtesy of HONDA, U.S.A., INC.

2. Mis-Fuel Inhibit Device - Install

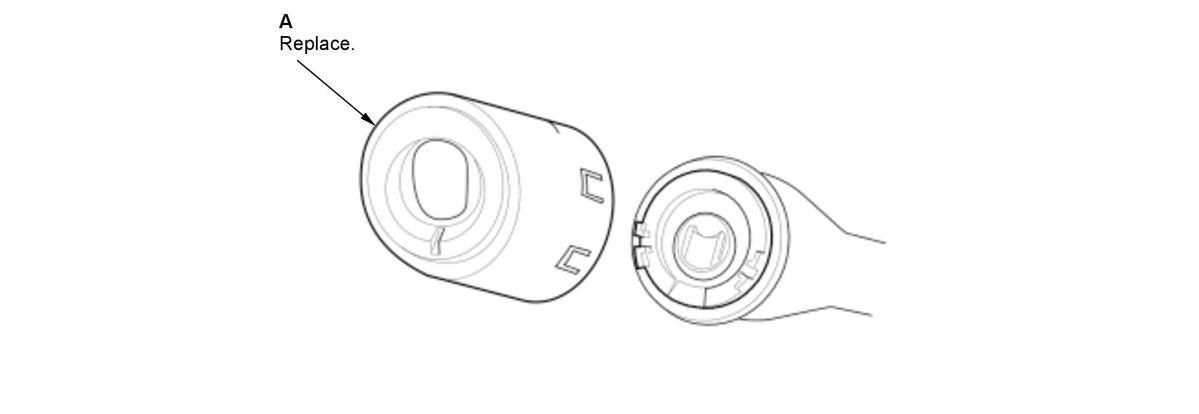

   1. Install the new mis-fuel inhibit device (A).

   Courtesy of HONDA, U.S.A., INC.

3. Fuel Cap Adapter - Install
