A/T Differential Component Location Index (6-Speed A/T)

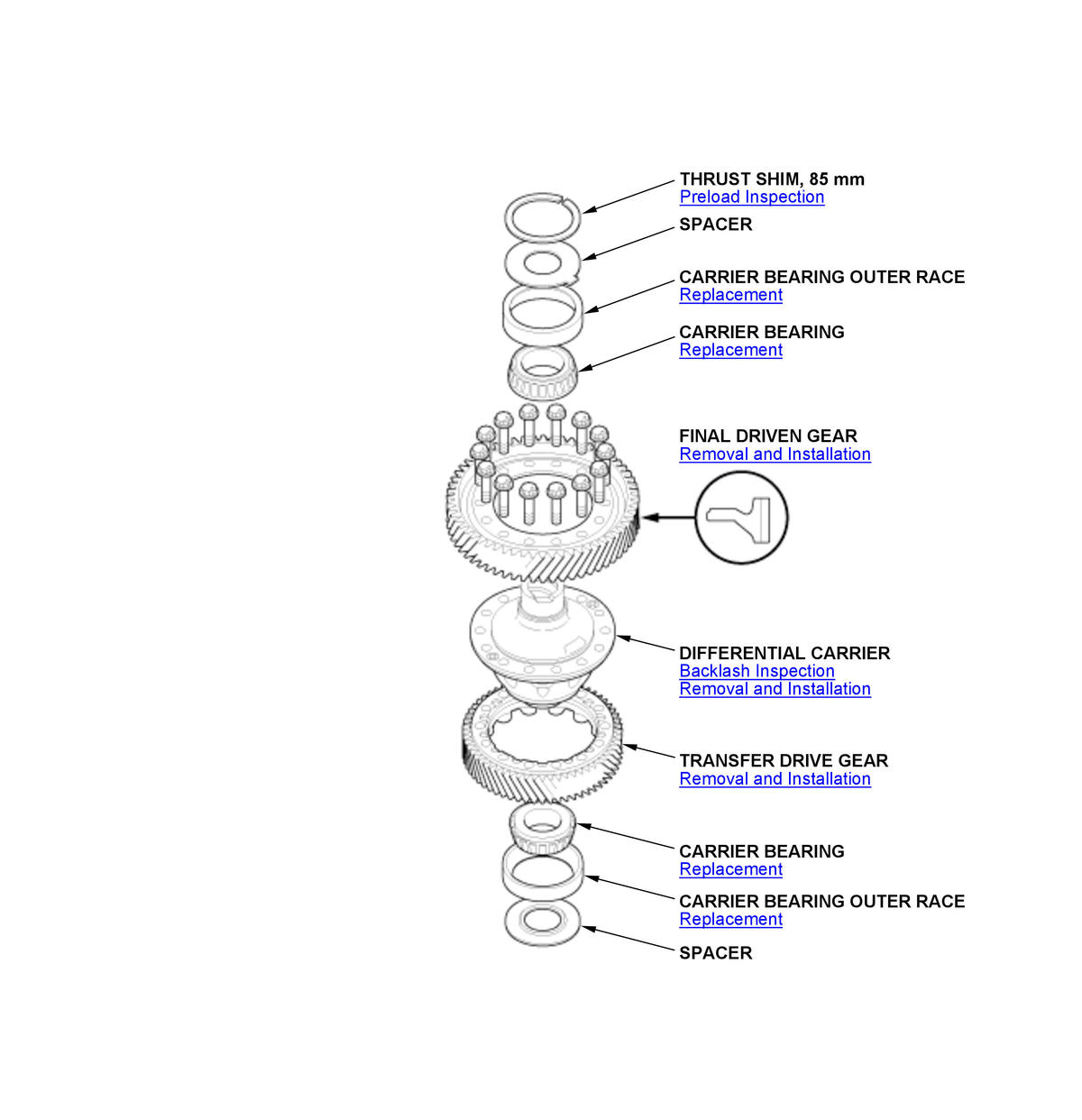

With AWD

GHH304681

Courtesy of HONDA, U.S.A., INC.

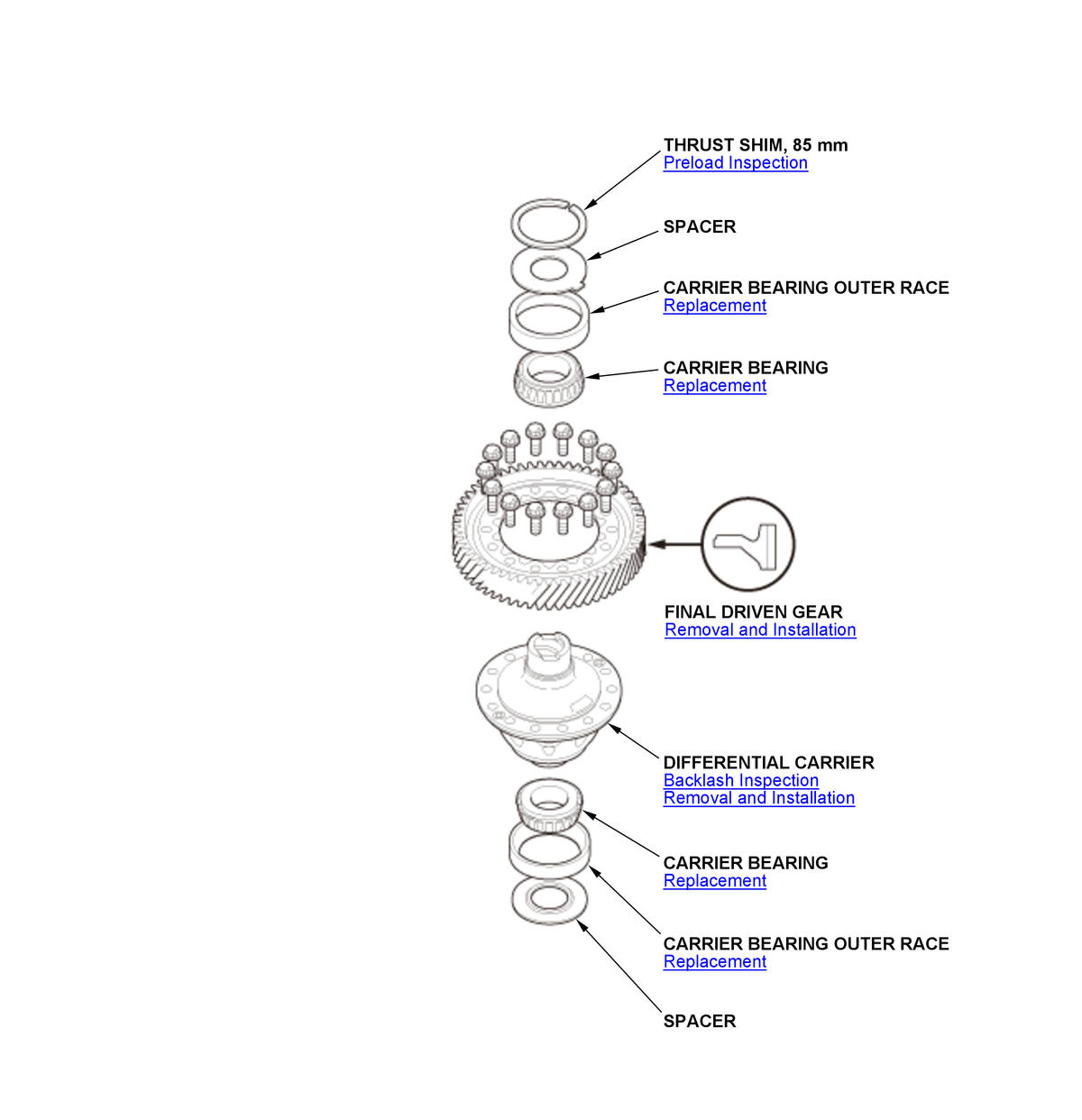

Without AWD

GHH304682

Courtesy of HONDA, U.S.A., INC.
