Rear Entertainment System (Res) Control Unit Connector For Inputs And Outputs (2019 2020 2021)
| Connector Index |
|---|
| RES Control Unit Connector A (16P) |
| RES Control Unit Connector B (3P) |
| RES Control Unit Connector C (20P) |
| RES Control Unit Connector D (2P) |
| RES Control Unit Connector E (2P) |

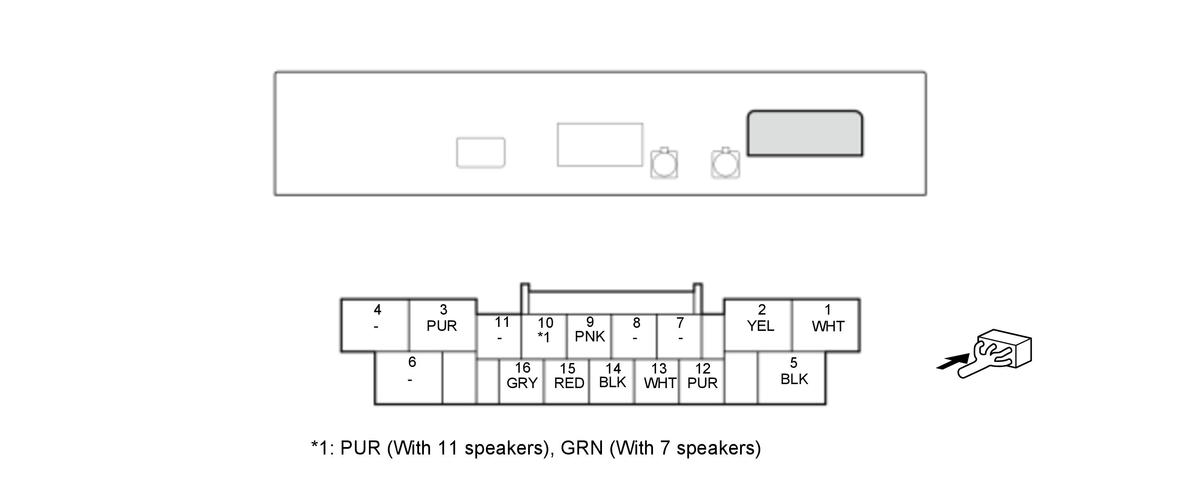

RES Control Unit Connector A (16P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| A1 | +B BACKUP | Continuous power source |
| A2 | CON CHECK1- | Ground for RES auxiliary jack assembly connection signal |
| A3 | DISP CONT RES | Outputs signal for RES screen switching on/off |
| A4 | Not used | - - - |
| A5 | GND | Ground for RES control unit (G405) |
| A6 | Not used | - - - |
| A7 | Not used | - - - |
| A8 | Not used | - - - |
| A9 | MOST ECL 7 | Inputs ECL signal |
| A10 | MOST ECL 9*1 MOST ECL 10*2 |
Outputs ECL signal |
| A11 | Not used | - - - |
| A12 | CON CHECK1+ | Detects connection for RES auxiliary jack assembly |
| A13 | HP R | Inputs sound signal from RES auxiliary jack assembly |
| A14 | HP GND | Ground for sound signal |
| A15 | HP L | Inputs sound signal from RES auxiliary jack assembly |
| A16 | HP SH | Shield for terminals No. 13, No. 14, and No. 15 |
*1: With 11 speakers
*2: With 7 speakers

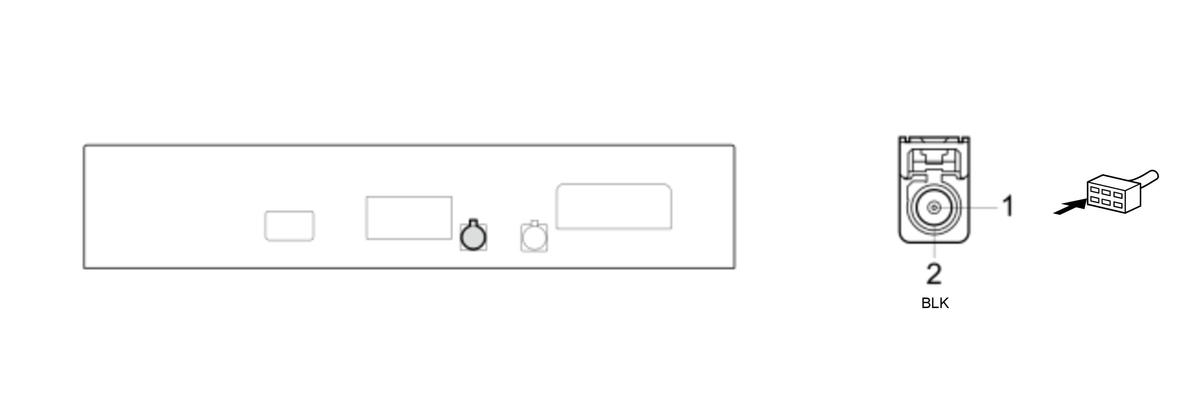

RES Control Unit Connector B (3P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| B1 | LVDS+ | Communication signal for RES screen |
| B2 | LVDS- | Communication signal for RES screen |
| B3 | LVDS SH | Shield for terminals No. 1 and No. 2 |

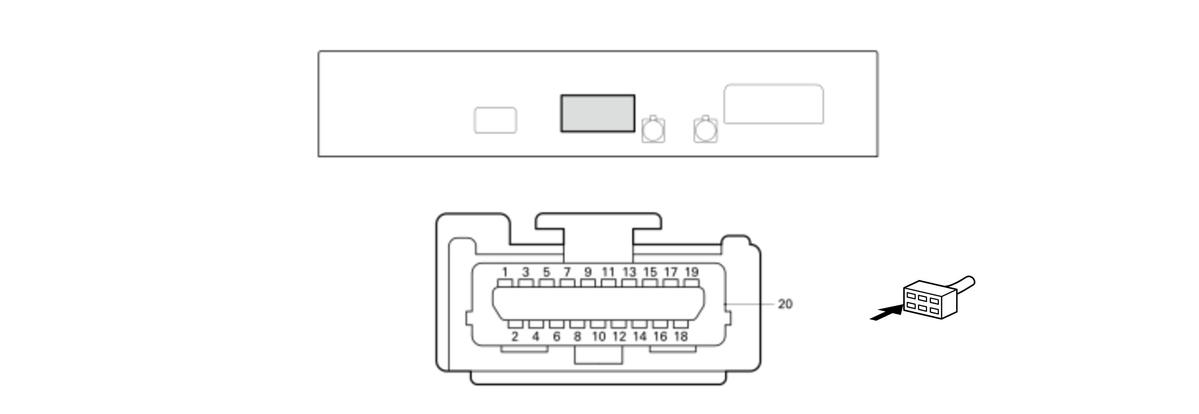

RES Control Unit Connector C (20P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| C1 | T.M.D.S DATA2+ | Inputs video/audio data signal |
| C2 | T.M.D.S DATA2 SHIELD | Shield for terminals No. 1 and No. 3 |
| C3 | T.M.D.S DATA2- | Inputs video/audio data signal |
| C4 | T.M.D.S DATA1+ | Inputs video/audio data signal |
| C5 | T.M.D.S DATA1 SHIELD | Shield for terminals No. 4 and No. 6 |
| C6 | T.M.D.S DATA1- | Inputs video/audio data signal |
| C7 | T.M.D.S DATA0+ | Inputs video/audio data signal |
| C8 | T.M.D.S DATA0 SHIELD | Shield for terminals No. 7 and No. 9 |
| C9 | T.M.D.S DATA0- | Inputs video/audio data signal |
| C10 | T.M.D.S CLOCK+ | TMDS synchronous signal |
| C11 | T.M.D.S CLOCK SHIELD | Shield for terminals No. 10 and No. 12 |
| C12 | T.M.D.S CLOCK- | TMDS synchronous signal |
| C13 | CEC | HDMI control signal |
| C14 | UTILITY | Not used |
| C15 | SCL | I2C bus synchronous signal |
| C16 | SDA | I2C bus communication signal |
| C17 | DDC/CEC GROUND | Ground for HDMI control signal |
| C18 | +5V POWER | 5 V power supply |
| C19 | HOT PLUG DETECT | Detects connection signal |
| C20 | SHIELD | Shield for all of terminals |
RES Control Unit Connector D (2P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|

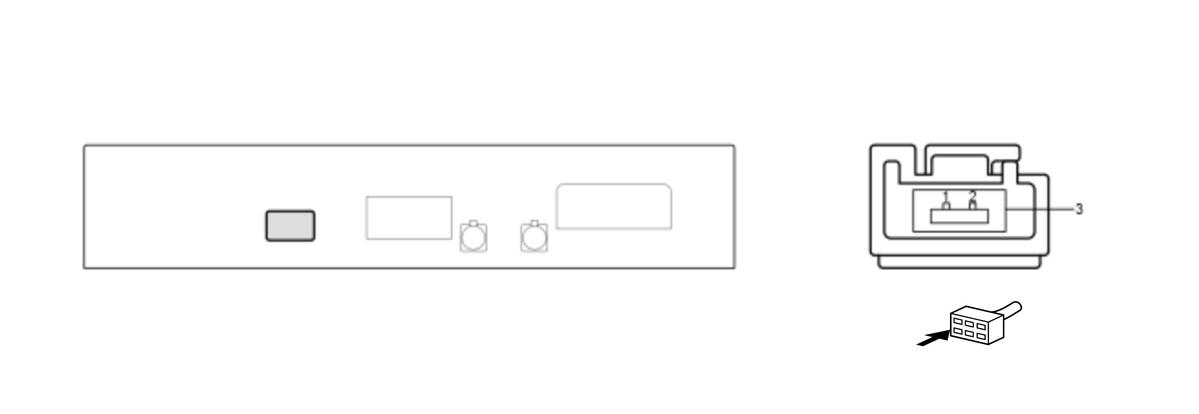

| D1 | MOST TX+ | Outputs MOST communication signal |
| D2 | MOST TX- | Shield for terminal No. 1 |
RES Control Unit Connector E (2P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|

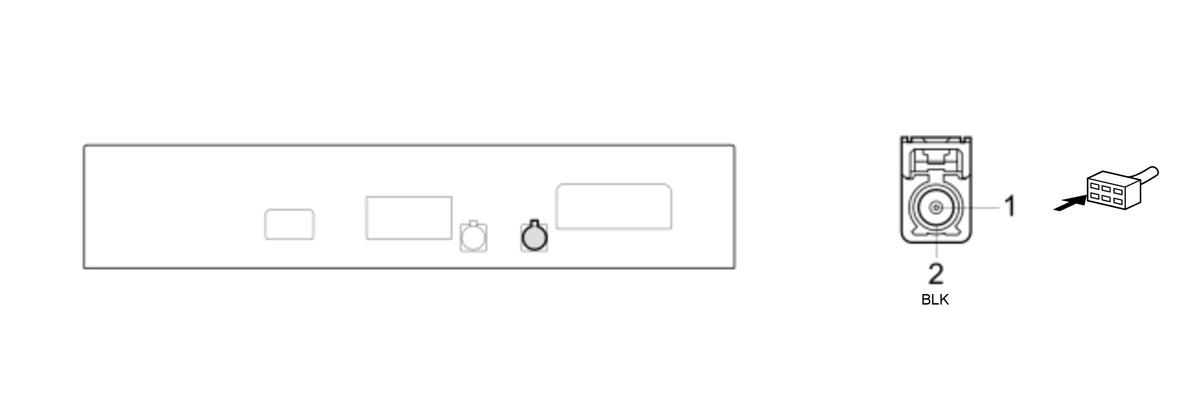

| E1 | MOST RX+ | Inputs MOST communication signal |
| E2 | MOST RX- | Shield for terminal No. 1 |
