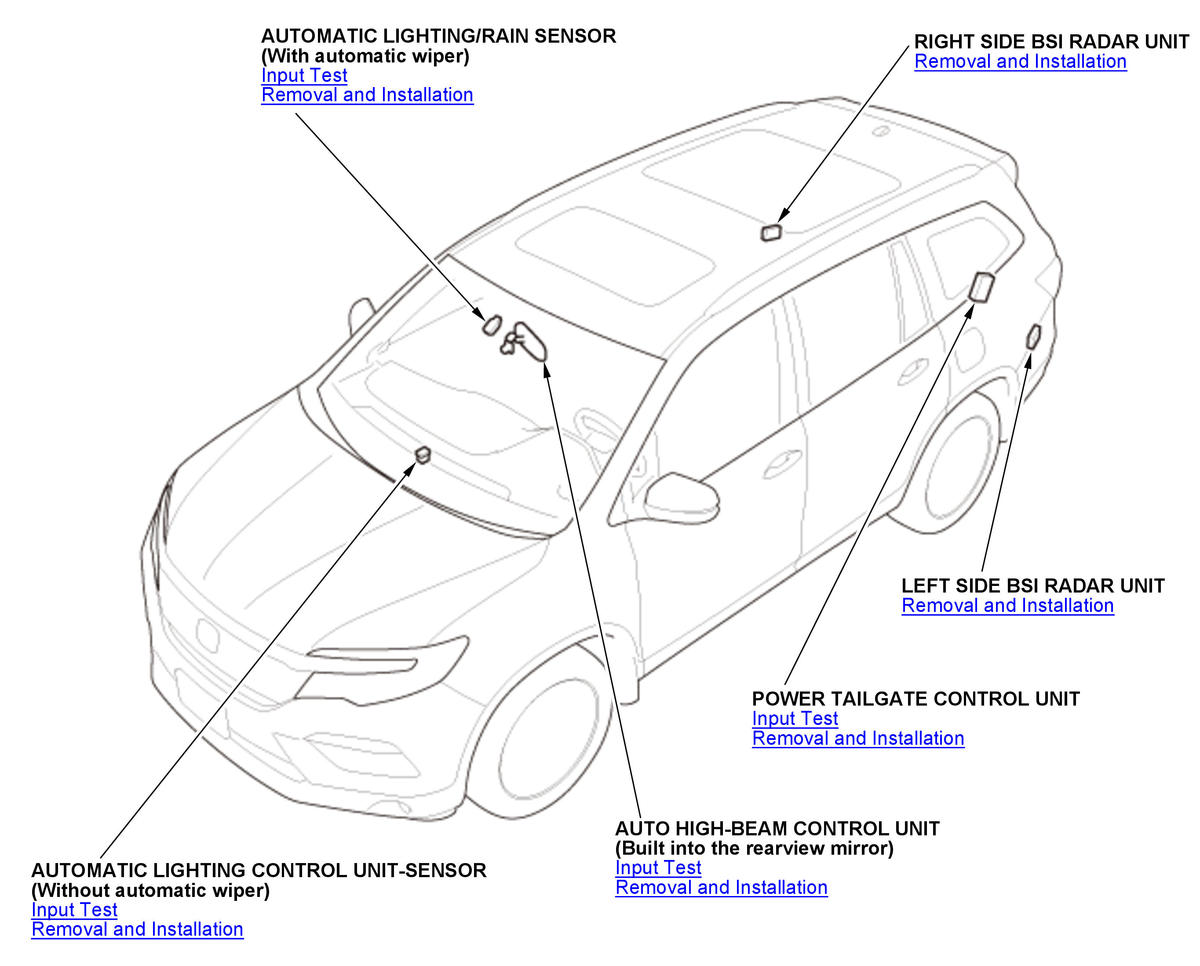

Component Location Index
>>
Multiplex Integrated Control System
Multiplex Integrated Control System

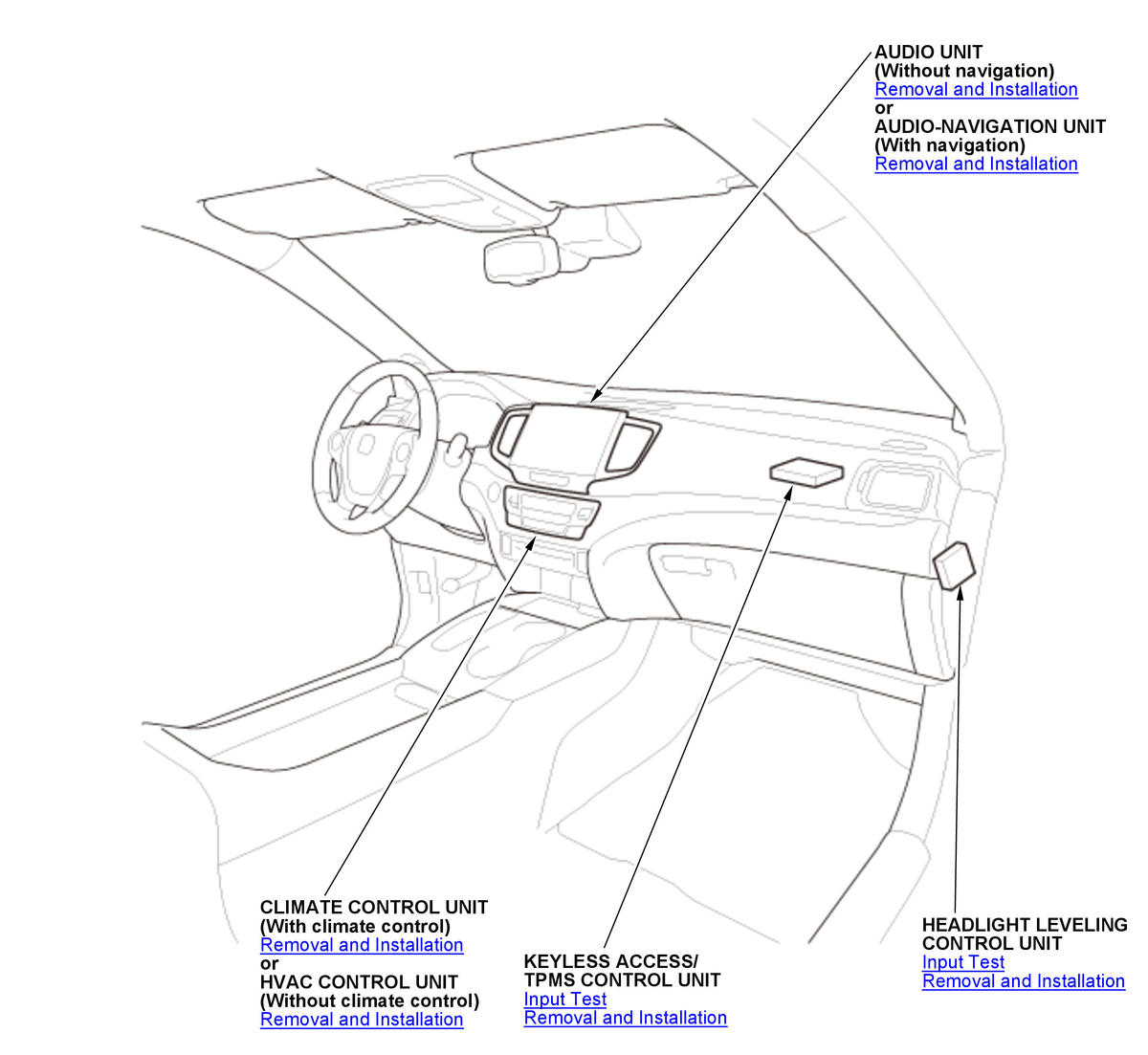

'16-18
Courtesy of HONDA, U.S.A., INC.

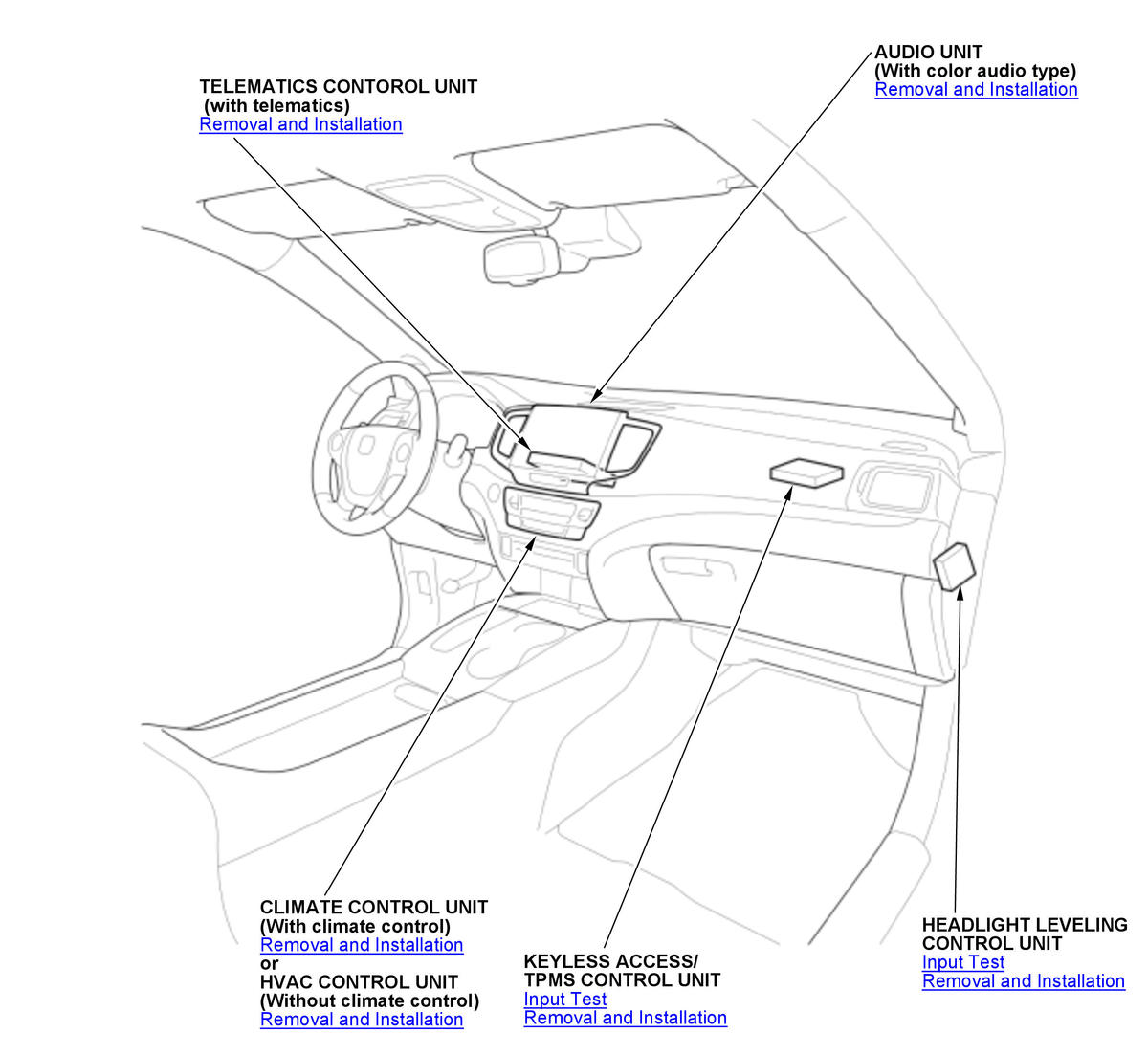

'19-21
Courtesy of HONDA, U.S.A., INC.

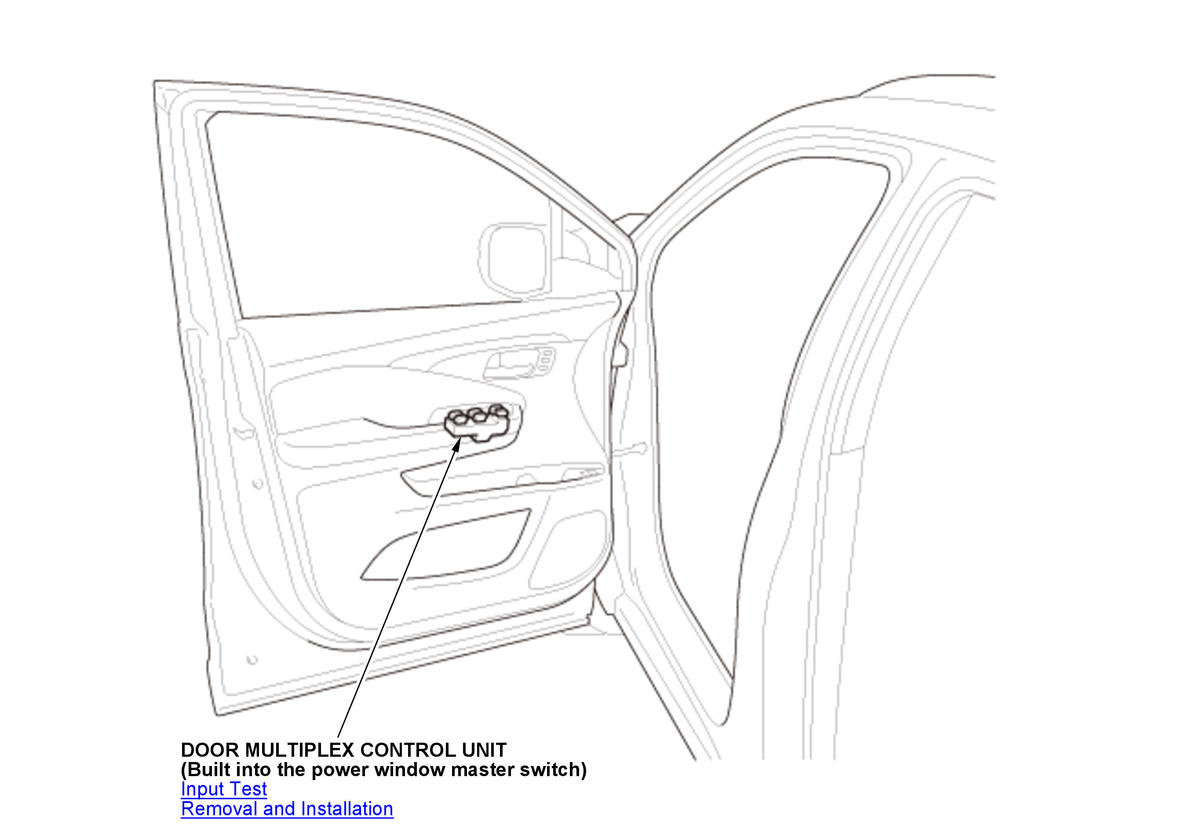

Courtesy of HONDA, U.S.A., INC.
'16-18
Courtesy of HONDA, U.S.A., INC.
'19-21
Courtesy of HONDA, U.S.A., INC.

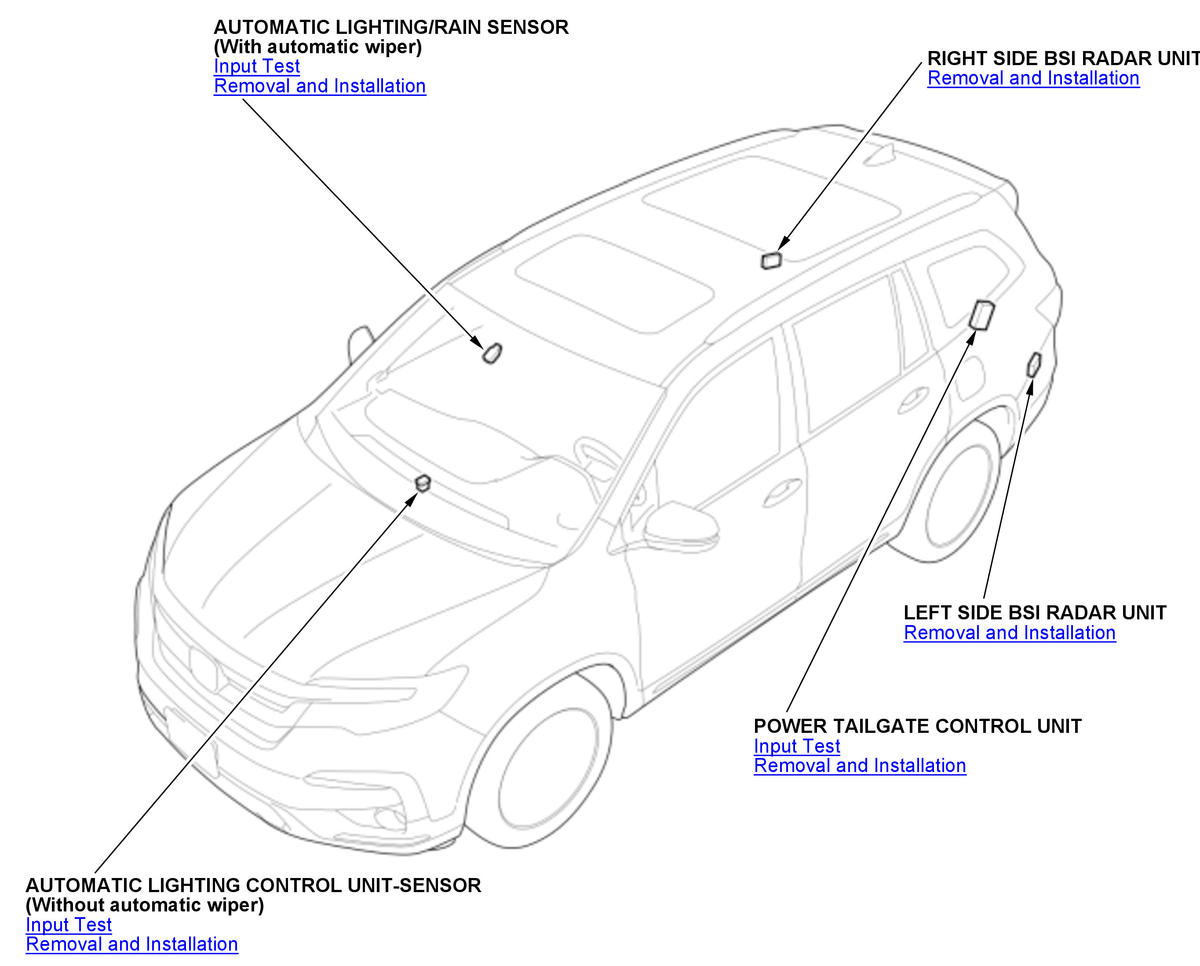

Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
