Removal & Installation

NOTE:  Unless otherwise indicated, illustrations used in the procedure are for AWD model.

Front

1. Vehicle - Lift - Refer to:Vehicle - Lift
2. Front Wheel - Remove - Refer to:Front Wheel - Remove
3. Front Wheel Speed Sensor - Remove

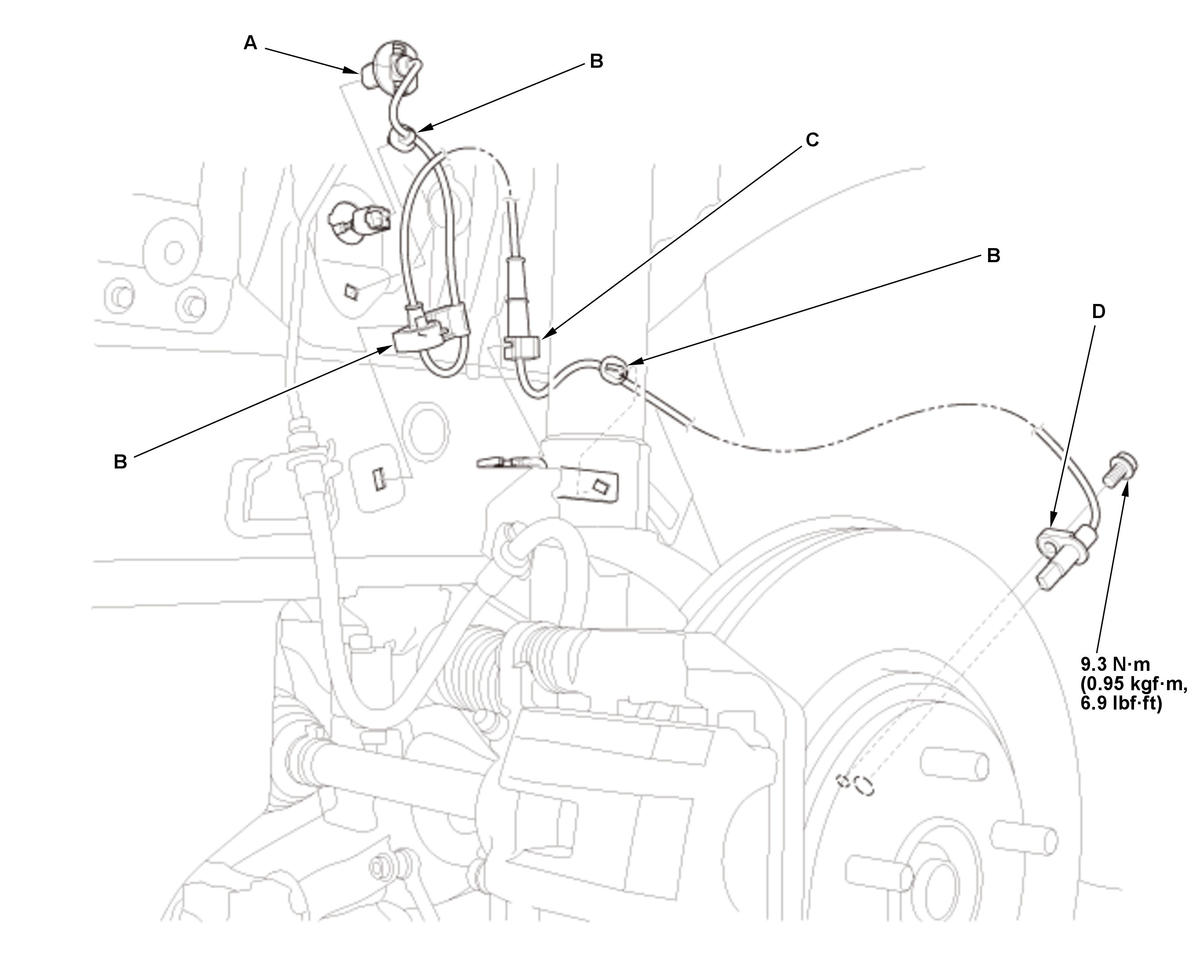

   1. Disconnect the connector (A).

   Courtesy of HONDA, U.S.A., INC.

   2. Remove the clips (B) and the wire guide rubber (C).

   3. Remove the wheel speed sensor (D).

4. All Removed Parts - Install

   1. Install the wheel speed sensor in the reverse order of removal, and look out for these instances: Install the sensor carefully to avoid twisting the wires. If the wheel speed sensor comes in contact with the hub bearing unit, it is faulty.

   Rear

5. Vehicle - Lift - Refer to:Vehicle - Lift
6. Rear Wheels - Remove - Refer to:Rear Wheels - Remove
7. Rear Wheel Speed Sensor - Remove

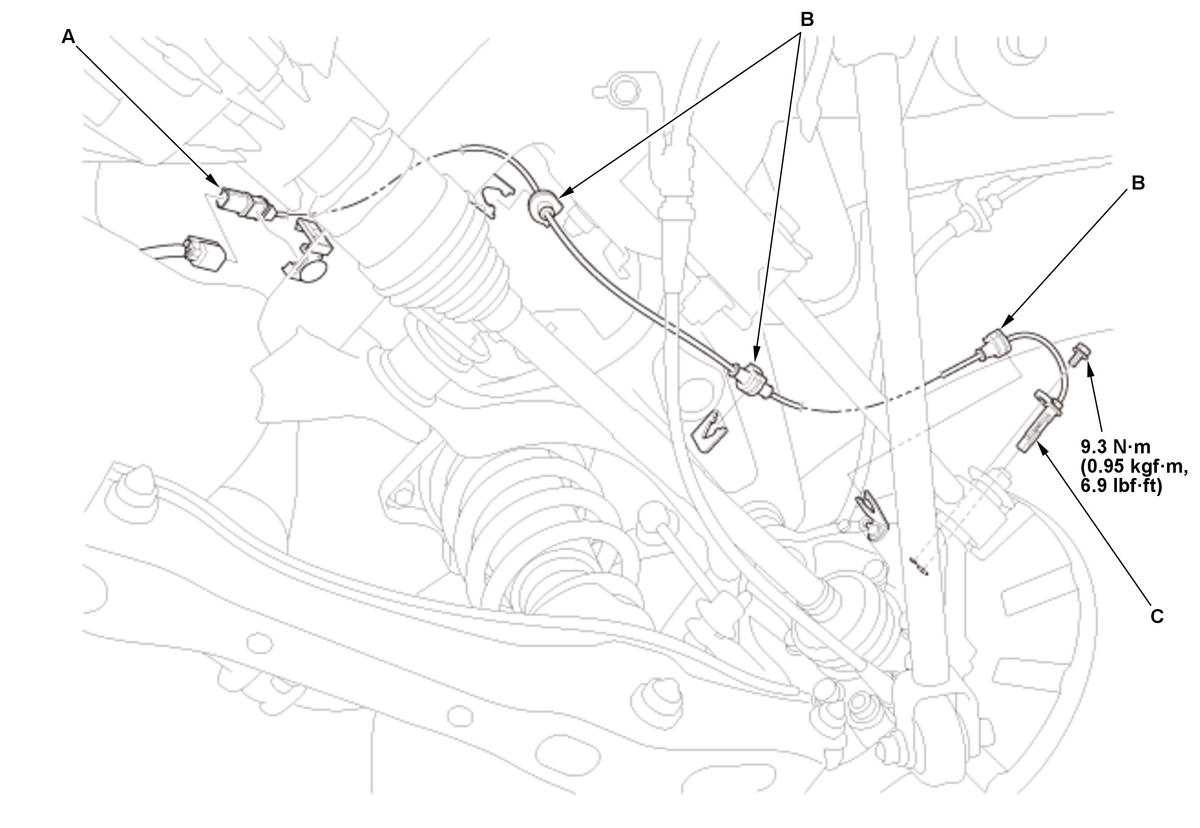

   1. Disconnect the connector (A).

   Courtesy of HONDA, U.S.A., INC.

   2. Remove the wire guide rubber (B).

   3. Remove the wheel speed sensor (C).

8. All Removed Parts - Install

   1. Install the wheel speed sensor in the reverse order of removal, and look out for these instances: Install the sensor carefully to avoid twisting the wires. If the wheel speed sensor comes in contact with the hub bearing unit, it is faulty.
