Steering Rack Guide Adjustment: Adjustment

Steering Rack Guide - Adjust

Courtesy of HONDA, U.S.A., INC.

1. Set the front wheels in the straight ahead position.

2. Loosen the locknut (A) with the lock nut wrench.

3. Remove the rack guide screw (B).

Courtesy of HONDA, U.S.A., INC.

4. Remove the old sealant from the rack guide screw.

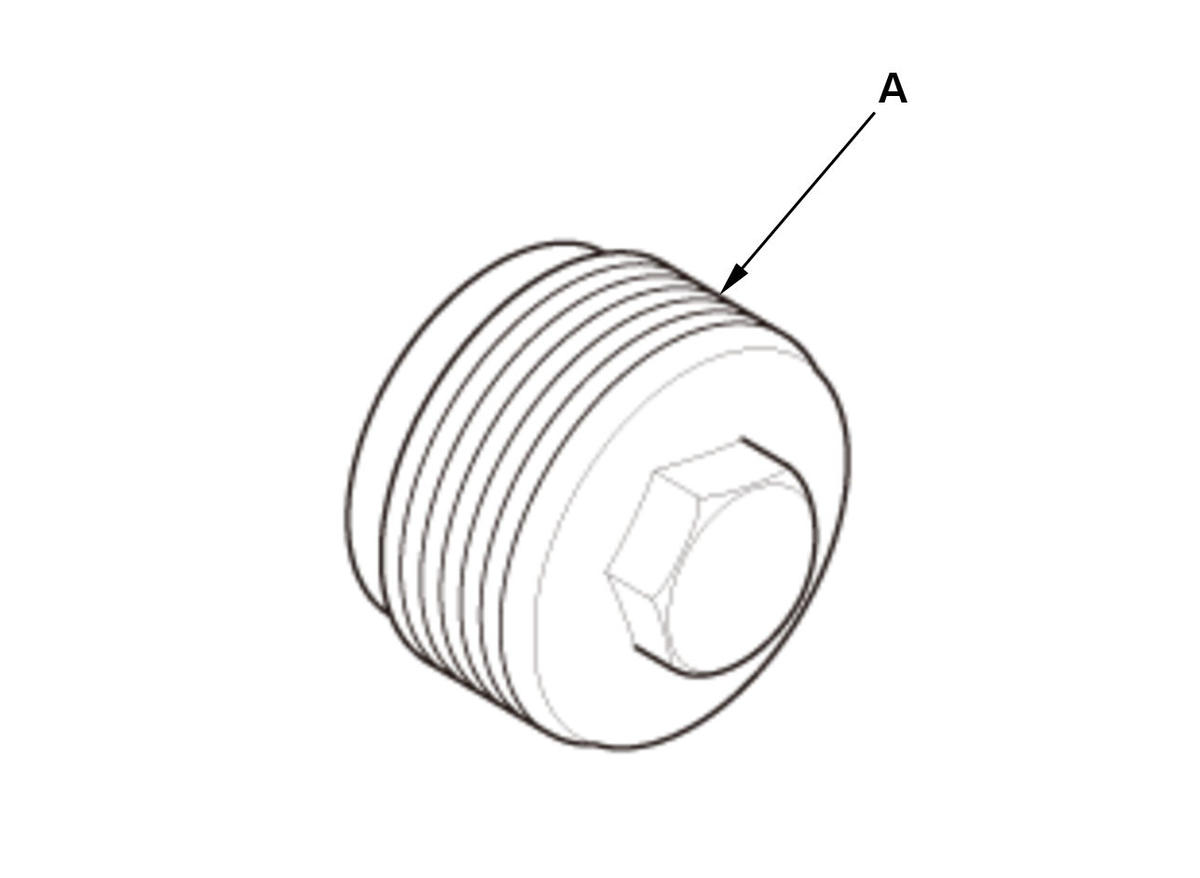

5. Apply new sealant (Three Bond 1215) to the middle of the threads (A).

NOTE:

If more than 5 minutes have passed after applying the sealant, remove the old sealant and residue, and reapply new sealant.

6. Loosely install the rack guide screw on the steering gearbox.

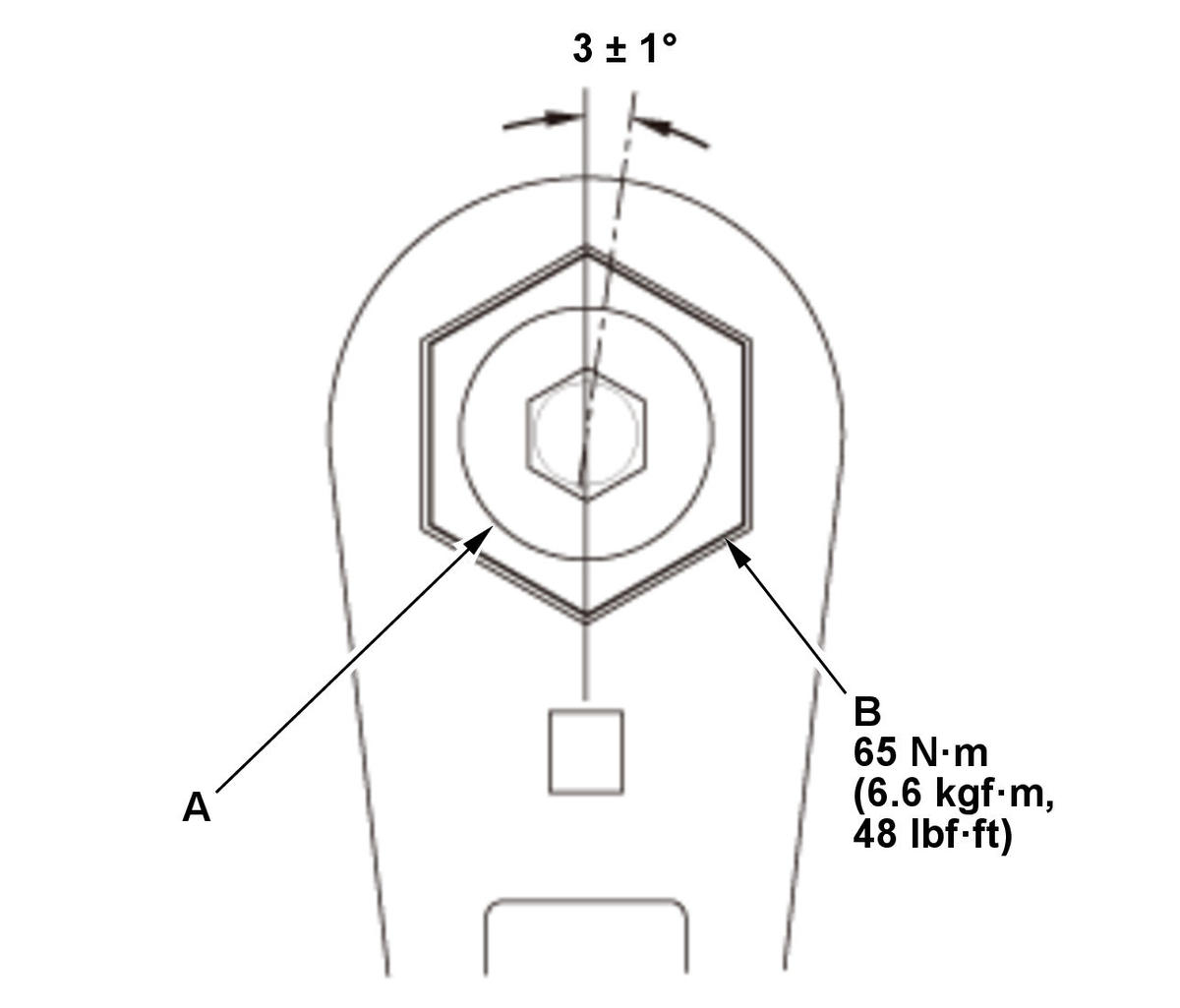

Fig 1: Rack Guide Screw With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

7. Tighten the rack guide screw (A) to 25 Nm (2.5 kg-fm, 18 lbf.ft), then loosen it.

8. Retighten the rack guide screw to 3.9 Nm (0.40 kg-fm, 2.9 lbf.ft), then back it off to the specified angle.

9. Hold the rack guide screw stationary with a wrench, and tighten the locknut (B) by hand until it's fully seated.

10. Install the lock nut wrench on the locknut, and hold the rack guide screw stationary with a wrench. Tighten the locknut to the specified torque.

11. Check for unusual steering effort through the complete turning range.

Specified return angle:

1 °
