DTC P2A03 (2016)

DTC P2A03:  Front Air Fuel Ratio (A/F) Sensor (Bank 2, Sensor 1) Circuit Range/Performance Problem

General Description

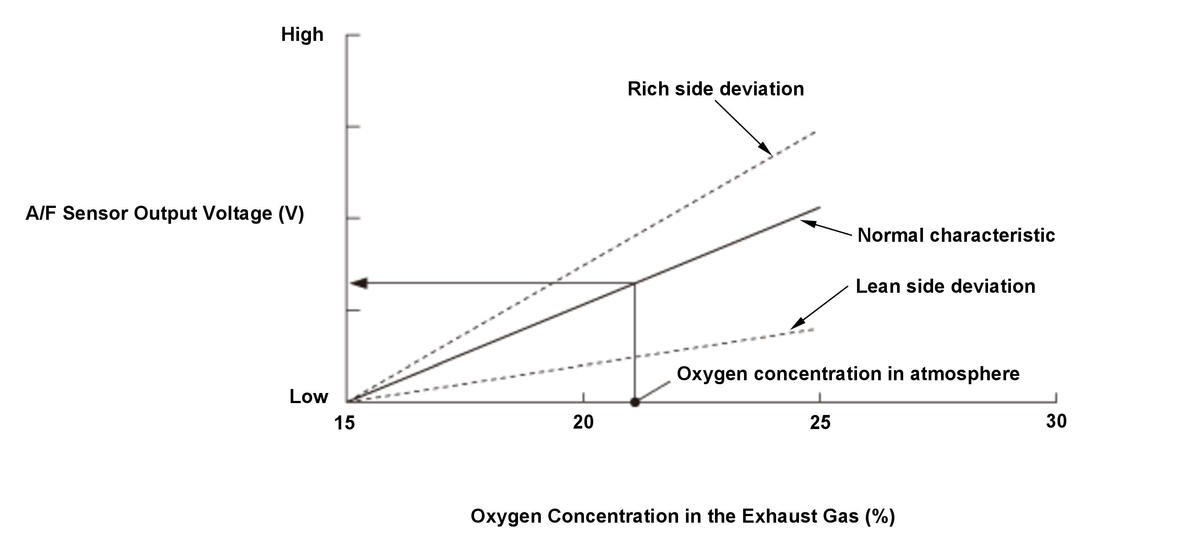

GHH306981Courtesy of HONDA, U.S.A., INC.

The front air/fuel ratio (A/F) sensor (bank 2, sensor 1) has a linear signal output in relation to the oxygen concentration. The powertrain control module (PCM) computes the air/fuel ratio from the front A/F sensor (bank 2, sensor 1) output voltage and uses the fuel feedback control to improve exhaust emissions. The PCM monitors the front A/F sensor (bank 2, sensor 1) output voltage during deceleration with the throttle fully closed, and if the output voltage deviates greatly from normal oxygen concentration levels, it detects a malfunction and stores a DTC.

NOTE:

Output to the scan tool exhibits a relationship between the front A/F sensor (bank 2, sensor 1) output and oxygen concentration, which is opposite to the characteristic shown in the graph. That is, a deviation toward the rich side increases the output voltage and one toward the lean side decreases the output voltage, as the stoichiometric ratio is 0.

Monitor Execution, Sequence, Duration, DTC Type

Execution Once per driving cycle
Sequence None
Duration 7.5 seconds or more* 1
5.3 seconds or more* 2
DTC Type Two drive cycles, MIL on

*1: 6-Speed A/T

*2: 9-Speed A/T

Enable Conditions

Condition Minimum Maximum
Elapsed time after starting the engine 5 seconds -
Engine coolant temperature [ECT SENSOR 1] 156 °F (69 °C) -
Intake air temperature [IAT SENSOR (1)] -13 °F (-25 °C) -
Engine speed [ENGINE SPEED] 500 rpm 2, 700 rpm

[ ]: HDS Parameter

Condition Minimum Maximum
Vehicle speed [VEHICLE SPEED] 30 mph (48 km/h)* 1 -
19 mph (30 km/h)* 2
Fuel feedback During deceleration

[ ]: HDS Parameter

Malfunction Threshold

The front A/F sensor (bank 2, sensor 1) output voltage is 2.55 V or less, or 4.50 V or more.

Possible Cause

NOTE:  The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.

Confirmation Procedure

Operating Condition

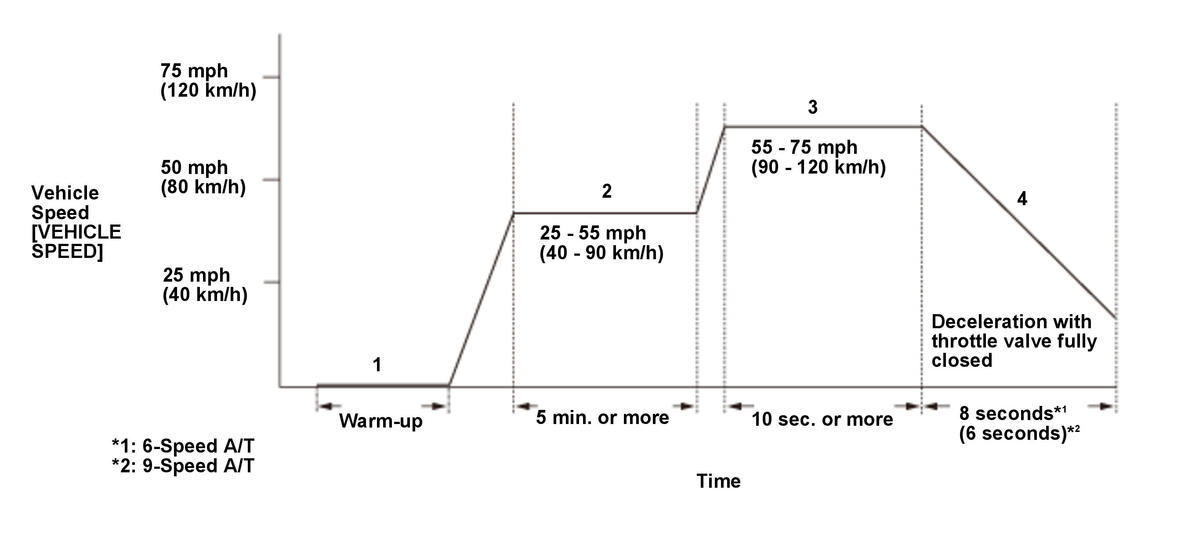

GHH306982Courtesy of HONDA, U.S.A., INC.

With the HDS

None.

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC and the freeze data are stored.

Conditions for clearing the DTC

The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the 12 volt battery.
