Home >> Honda >> 2017 >> Pilot EX, AWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - Advanced Diagnostics (2 Of 3) >> Engine Control System - Advanced Diagnostics (2 Of 3) >> DTC : P0706 >> Confirmation Procedure >> Operating Condition

Operating Condition

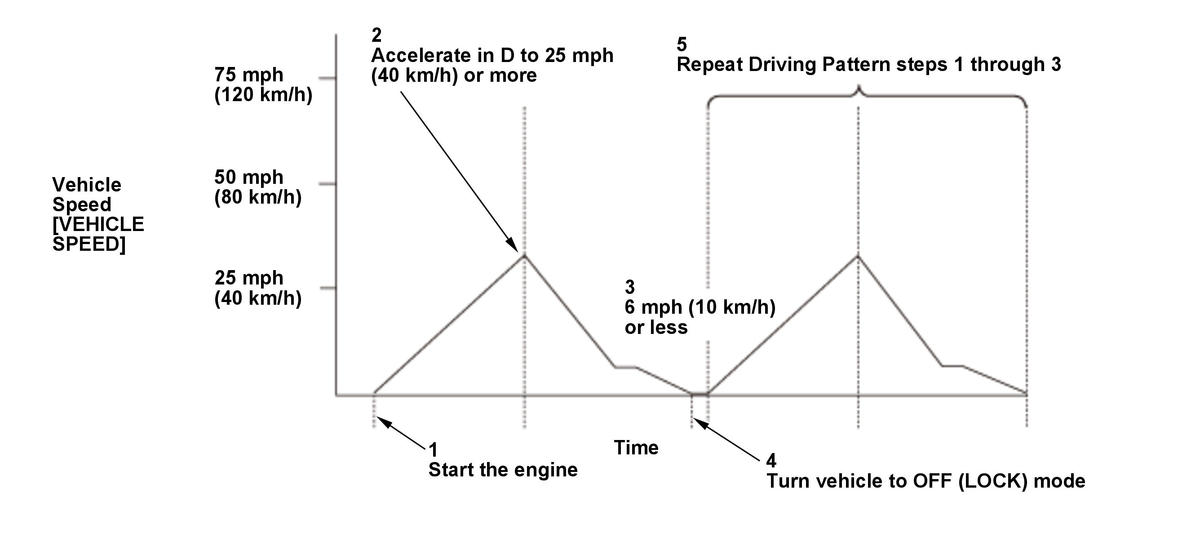

GHH306741Courtesy of HONDA, U.S.A., INC.
  1. Start the engine.
  2. Accelerate the vehicle in D to 25 mph (40 km/h) or more.
  3. Slow down to 6 mph (10 km/h) for several seconds.
  4. Stop the vehicle, and turn the vehicle to the OFF (LOCK) mode.
  5. Repeat Driving Pattern steps 1 through 3.
