DTC : P0451: General Description

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

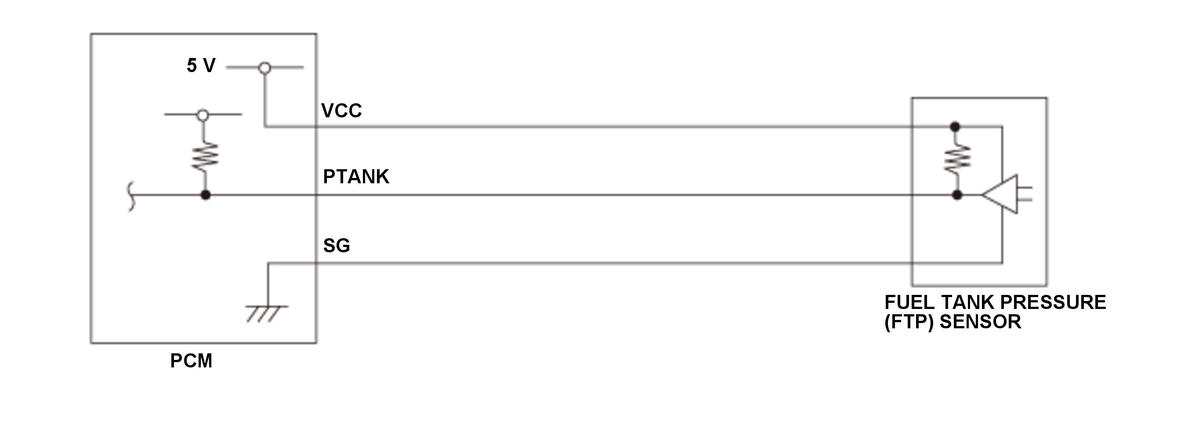

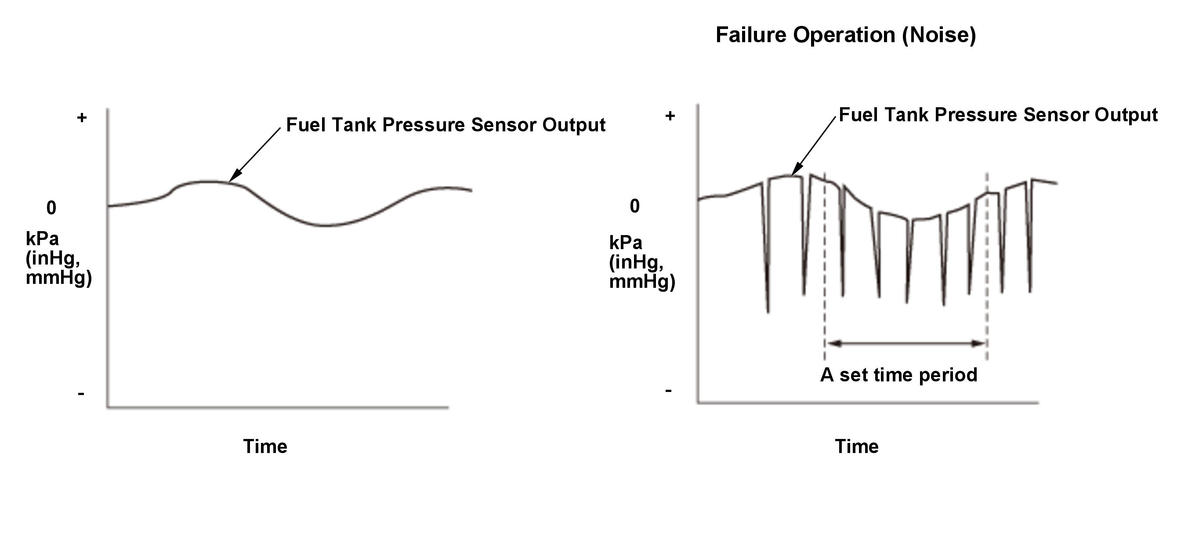

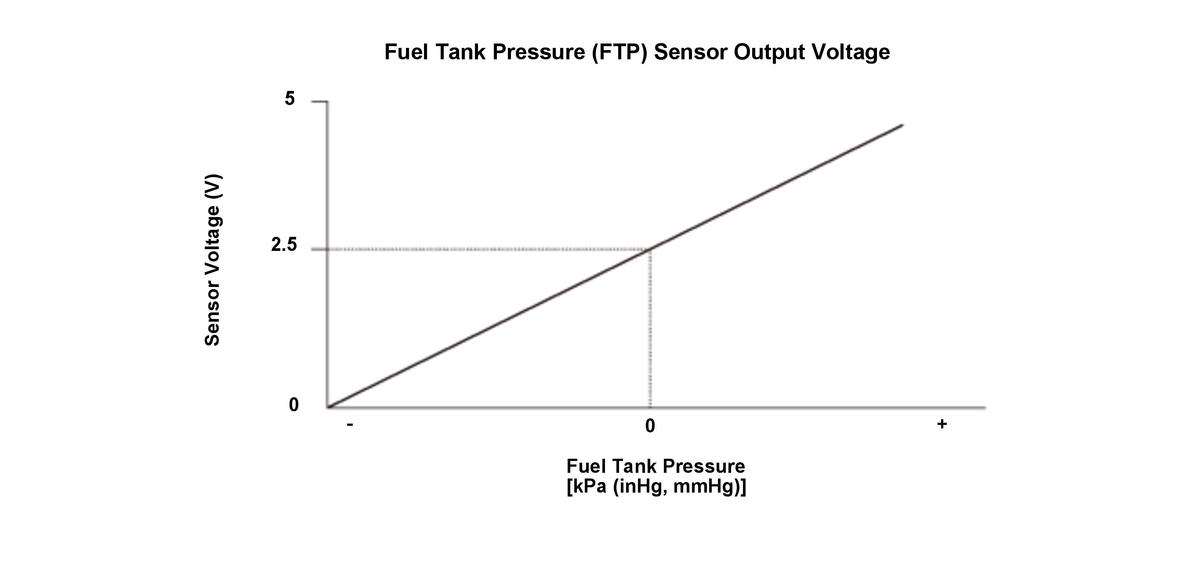

The fuel tank pressure (FTP) sensor is installed on the evaporative emission (EVAP) canister. The FTP sensor is used to detect leaks in the EVAP system. The powertrain control module (PCM) monitors the FTP sensor output voltage. The FTP sensor output voltage rises as the fuel tank pressure increases. Conversely, the FTP sensor output voltage drops as the fuel tank pressure decreases. Rapid changes in the FTP sensor output voltage due to electrical noise or an intermittent open during the EVAP leak detection may cause incorrect leak detection, so abnormal output is monitored. If the FTP sensor output voltage change occurs for specified ratio within a set time, the PCM detects a malfunction and stores a DTC.
