Operating Condition

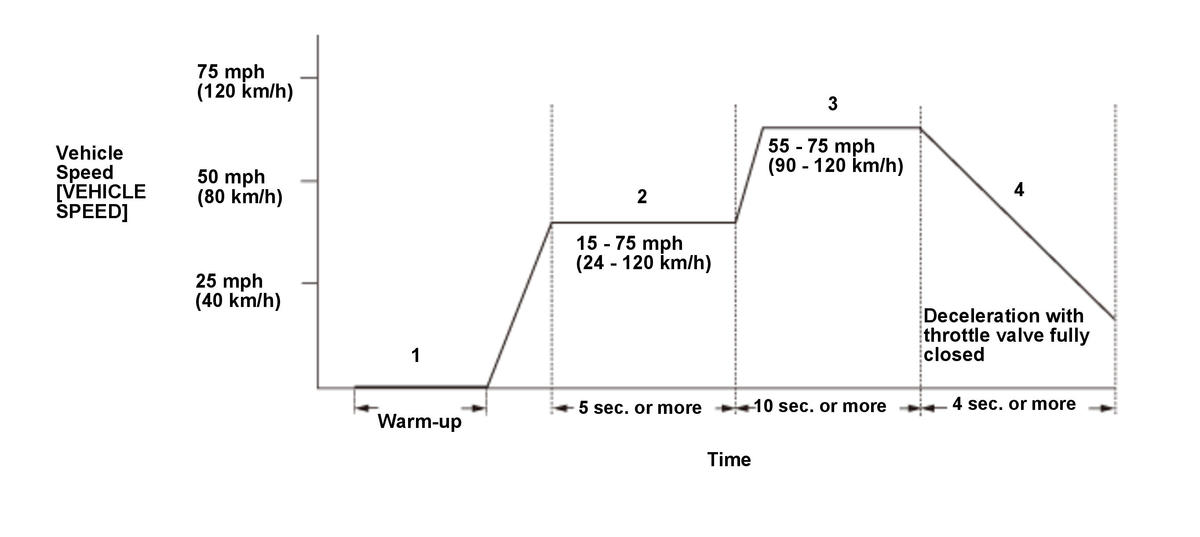

GHH306630Courtesy of HONDA, U.S.A., INC.
  1. Start the engine. Hold the engine speed [ENGINE SPEED] at 3, 000 RPM without load (in P or N) until the radiator fan comes on.
  2. Drive the vehicle at a speed between 15 - 75 mph (24 - 120 km/h) for at least 5 seconds.
  3. Drive at a steady speed between 55 - 75 mph (90 - 120 km/h) for at least 10 seconds.
  4. Decelerate with the throttle valve fully closed for at least 4 seconds.
