Operating Condition

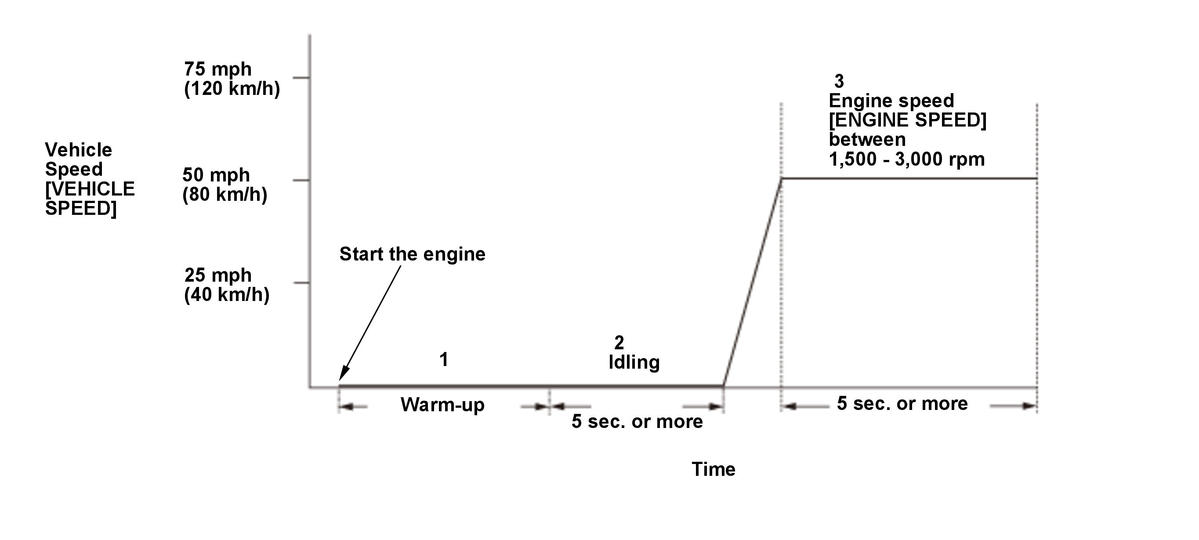

- Start the engine, and let it idle until the radiator fan comes on.
- Let the engine idle for at least 5 seconds.
- When the diagnosis does not finish at idle, drive immediately at a steady engine speed [ENGINE SPEED] between 1, 500 - 3, 000 RPM for at least 5 seconds.
- When the on-board snapshot is stored, drive the vehicle under those conditions instead of Driving Pattern step 3.
- Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.
