Operating Condition

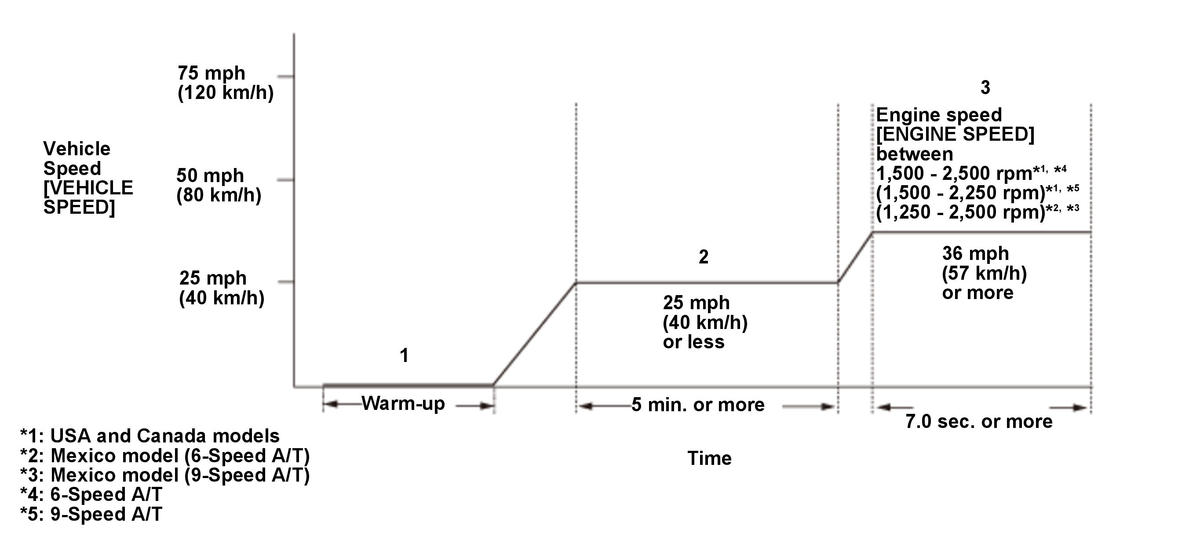

GHH306550Courtesy of HONDA, U.S.A., INC.
  1. Start the engine. Hold the engine speed [ENGINE SPEED] at 3, 000 RPM without load (in P or N) until the radiator fan comes on.
  2. Drive the vehicle at a steady speed of 25 mph (40 km/h) or less, for at least 5 minutes.
  3. Drive immediately at a steady speed of 36 mph (57 km/h) or more and engine speed [ENGINE SPEED] between 1, 500 - 2, 500 RPM*1, *4 (1, 500 - 2, 250 RPM)*1, *5 (1, 250 - 2, 500 RPM)*2, *3 for at least 7.0 seconds.
