Operating Condition

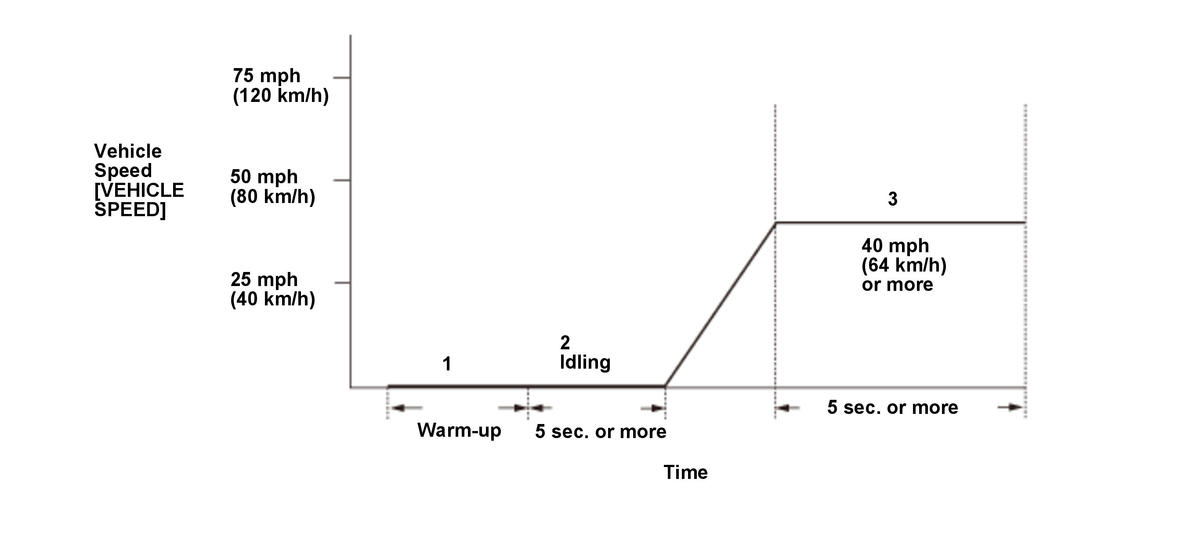

GHH306511Courtesy of HONDA, U.S.A., INC.
  1. Start the engine. Hold the engine speed [ENGINE SPEED] at 3, 000 RPM without load (in P or N) until the radiator fan comes on.
  2. Let the engine idle for at least 5 seconds.
  3. Drive the vehicle at a steady speed of 40 mph (64 km/h) or more for at least 5 seconds.
