DTC : P0088: General Description

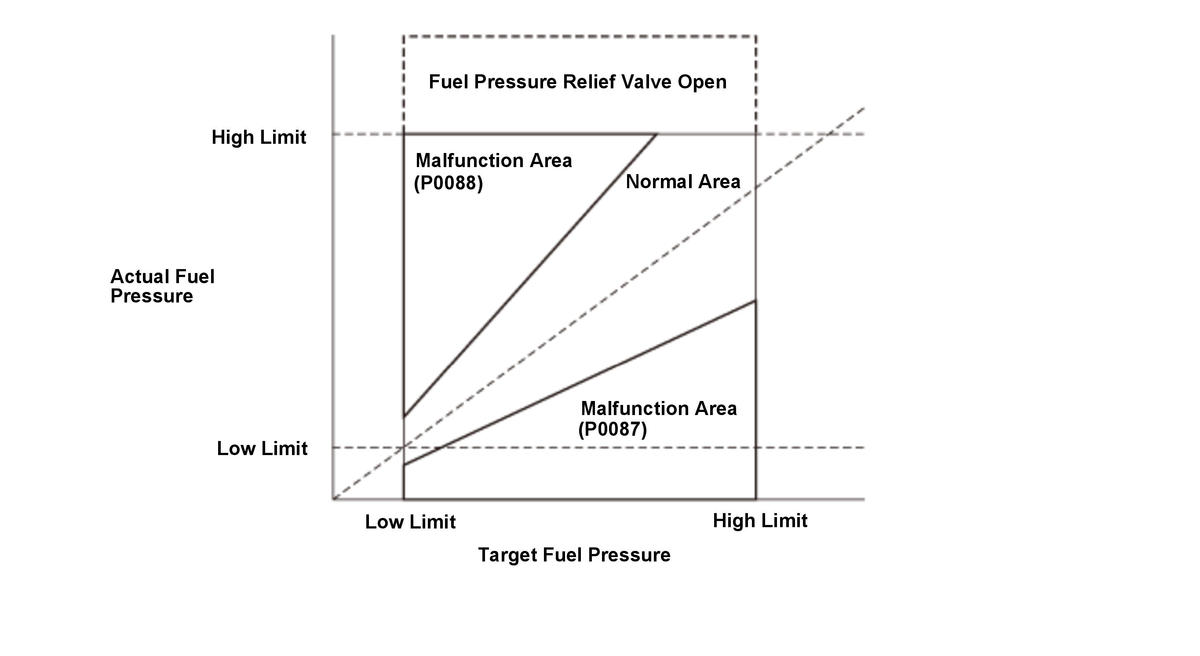

GHH306505Courtesy of HONDA, U.S.A., INC.

The powertrain control module (PCM) controls fuel pressure delivered by the high pressure fuel pump. If the actual fuel pressure deviates from the target fuel pressure for a set time, the PCM detects a malfunction. The DTC is also stored when the fuel pressure relief valve is opened to protect the fuel hose when the fuel reaches an abnormally high pressure.
