PGM-FI System - Ignition Timing Control

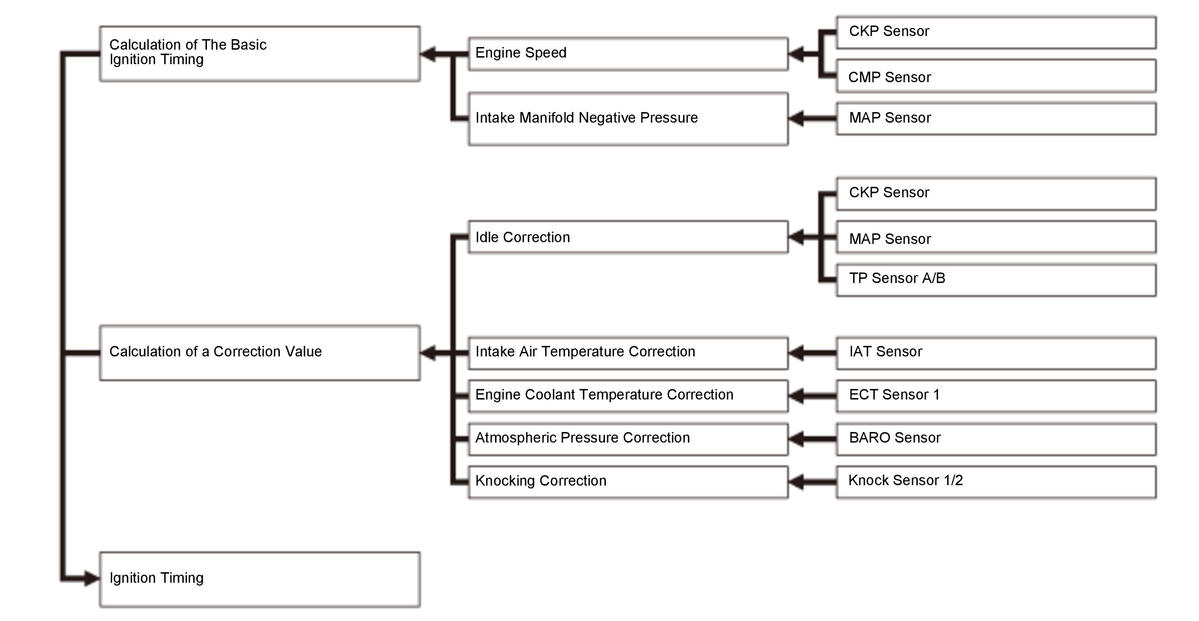

The powertrain control module (PCM) contains programming for basic ignition timing at various engine speeds and manifold absolute pressures. It also adjusts the ignition timing according to engine coolant temperature and intake air temperature.

Courtesy of HONDA, U.S.A., INC.
