Removal and Installation

  1. Air Cleaner Element - Remove

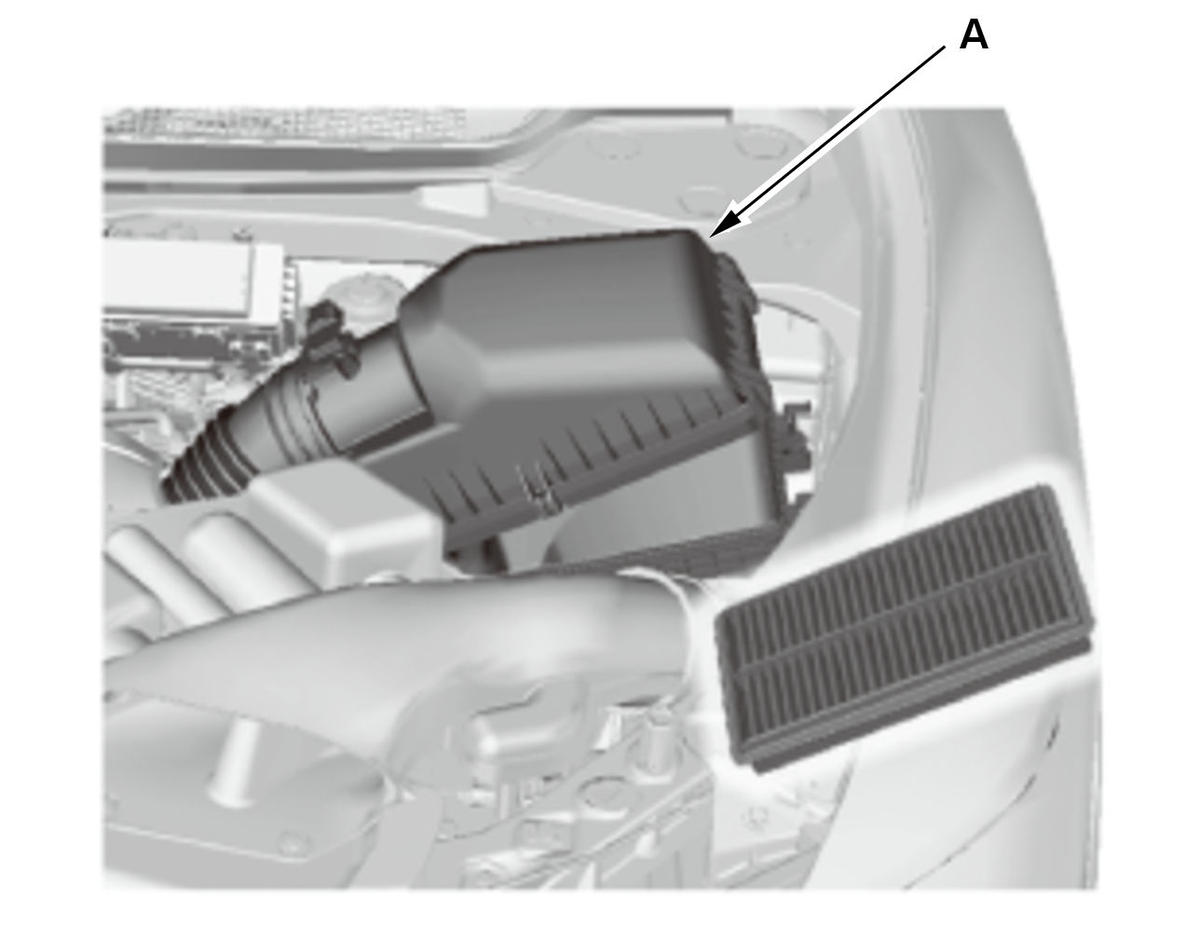

    GHH308354Courtesy of HONDA, U.S.A., INC.
    		 1. Open the air cleaner housing cover (A).

    2. Remove the air cleaner element.
  2. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.

    NOTE:  If the idle speed fluctuates, do the idle speed inspection .
  3. Maintenance Minder - Reset (With Maintenance Minder System)
    1. If the Maintenance Minder™ required to replace the air cleaner element, reset the Maintenance Minder™ with the gauge - Refer to:
    Resetting the Maintenance Minder™ (2016 2017 2018) or
    Resetting the Maintenance Minder™ (2019 2020 2021) .
