Piston, Ring, Pin, And Connecting Rod: Removal

Engine/Transmission - Remove - Refer to:
Engine Removal and Installation (6-Speed A/T) ('16-'18 9-Speed A/T) or

Engine Removal and Installation (9-Speed A/T) (2019 2020 2021)
Transmission - Remove - Refer to:
Automatic Transmission Removal and Installation (9-Speed A/T) or

Automatic Transmission Removal and Installation (6-Speed A/T) .
Drive Plate - Remove - Refer to:
Drive Plate (9-Speed A/T) (2019 2020 2021) or

Drive Plate (6-Speed A/T) [(9-Speed A/T) (2016 2017 2018] .
Cylinder Head - Remove - Refer to:
Cylinder Head Removal and Installation (9-Speed A/T) (2019 2020 2021) or

Cylinder Head Removal and Installation
Oil Pan - Remove
Oil Filter Base/Oil Filter Assembly - Remove
Oil Strainer - Remove
Baffle Plate - Remove

Metal or Hard Carbon - Remove

Courtesy of HONDA, U.S.A., INC.

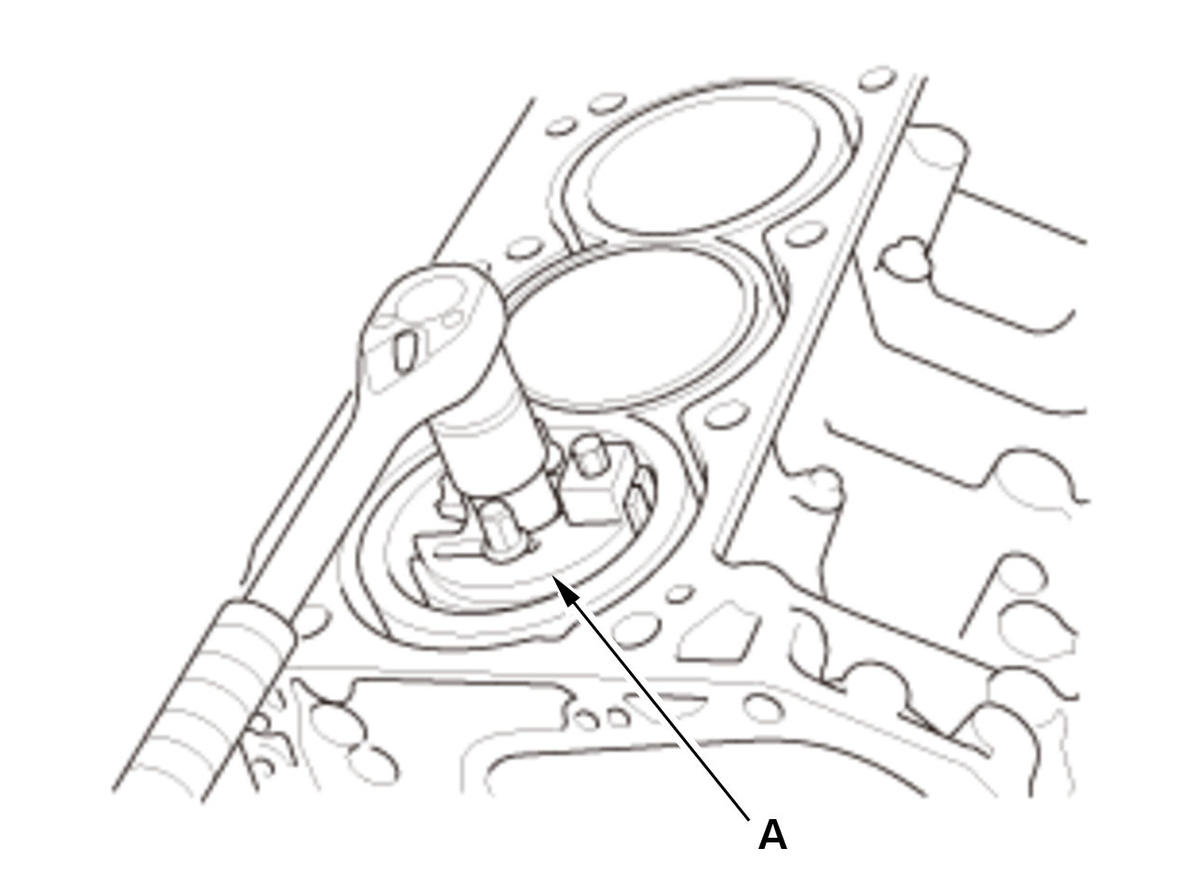

1. If you can feel a ridge of metal or hard carbon around the top of each cylinder, remove it with a ridge reamer (A). Follow the reamer manufacturer's instructions. If the ridge is not removed, it may damage the piston as it is pushed out.

Piston/Connecting Rod Assembly - Remove

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

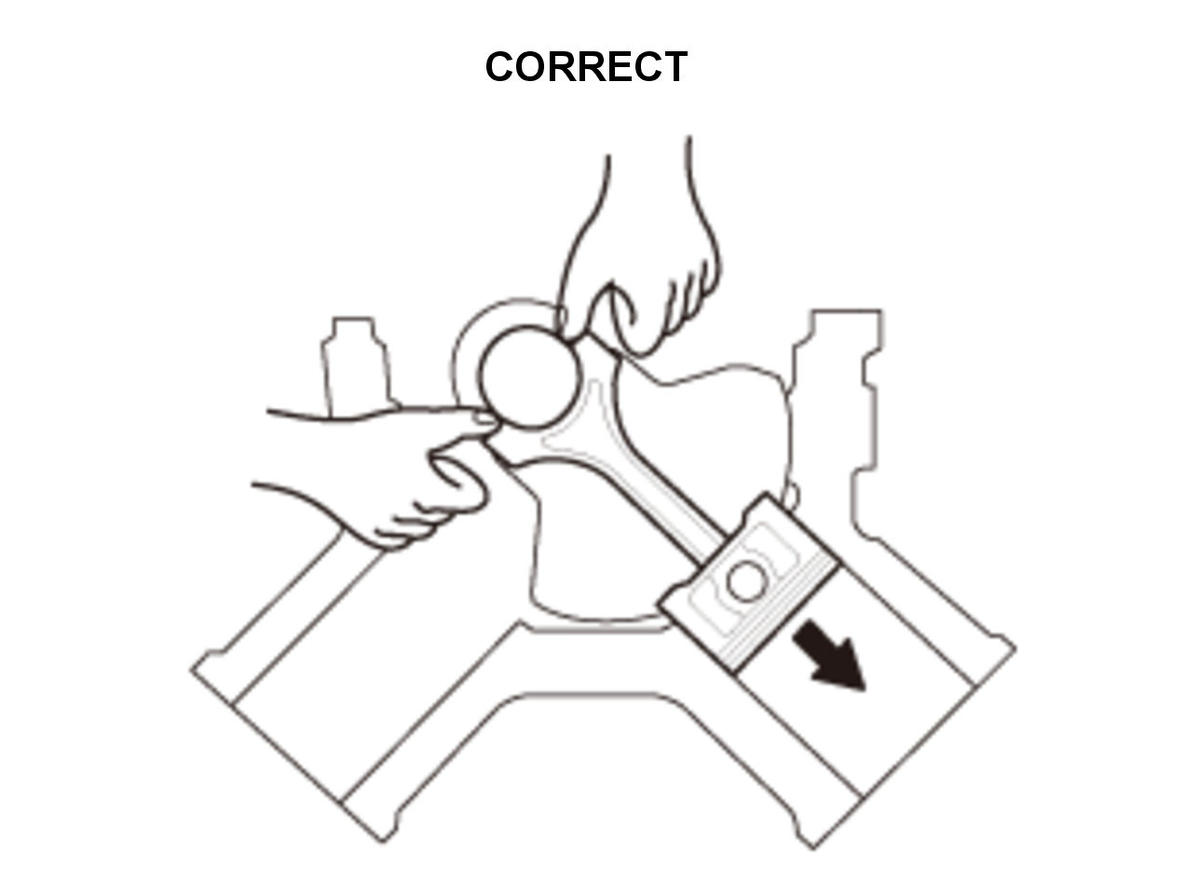

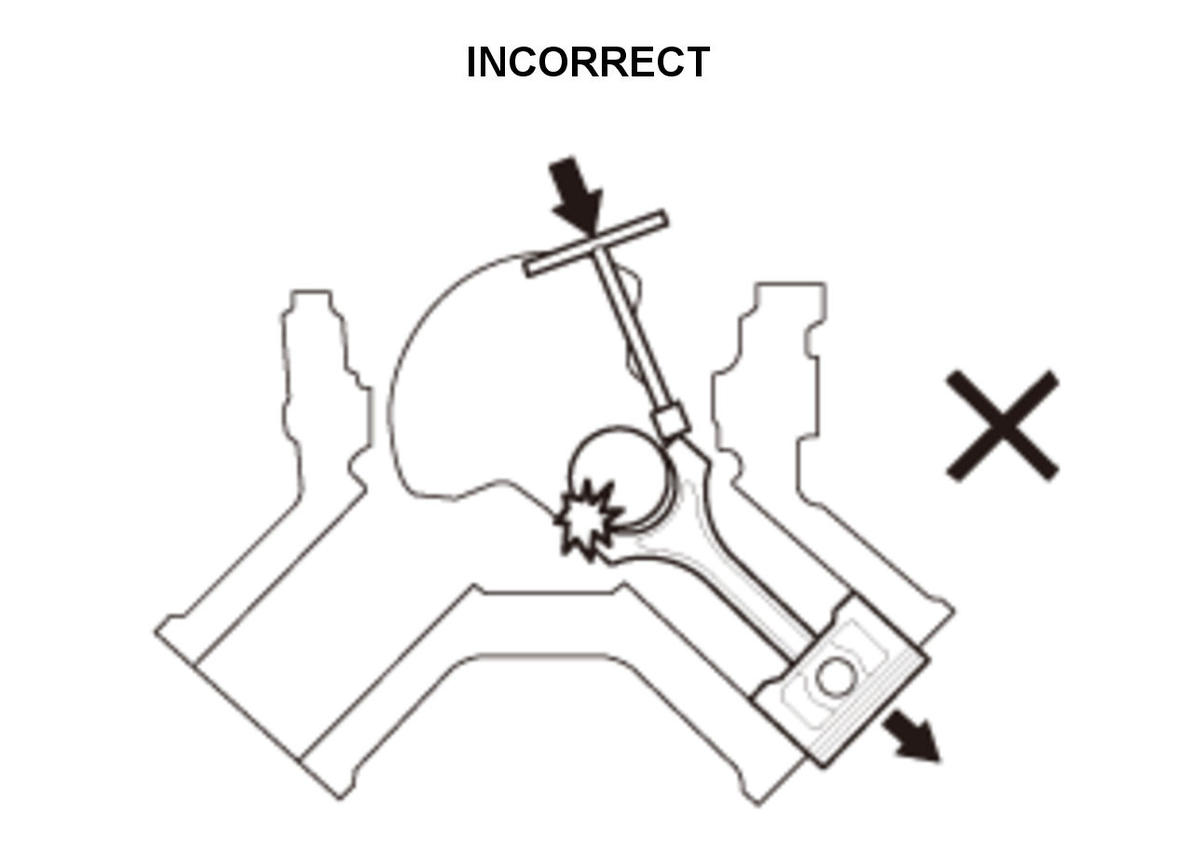

1. Remove the connecting rod caps after setting the connecting rod journal at bottom dead center (BDC) for each cylinder. Remove the piston/connecting rod assembly by pushing on the connecting rod. Take care not to damage the oil jets, the connecting rod journal, or the cylinder with the connecting rod.

2. Remove the bearing from the rod cap. Keep all caps/bearings in order.

3. Remove the upper bearing halves from the connecting rods, and set them aside with their respective caps.

4. After removing a piston/connecting rod assembly, reinstall the rod cap on the rod.

NOTE:

Mark the cylinder number on the connecting rod and the connecting rod bearing cap to avoid mixing them up during reassembly.
The factory markings on the connecting rods do not indicate cylinder position.

Piston Ring - Remove

Courtesy of HONDA, U.S.A., INC.

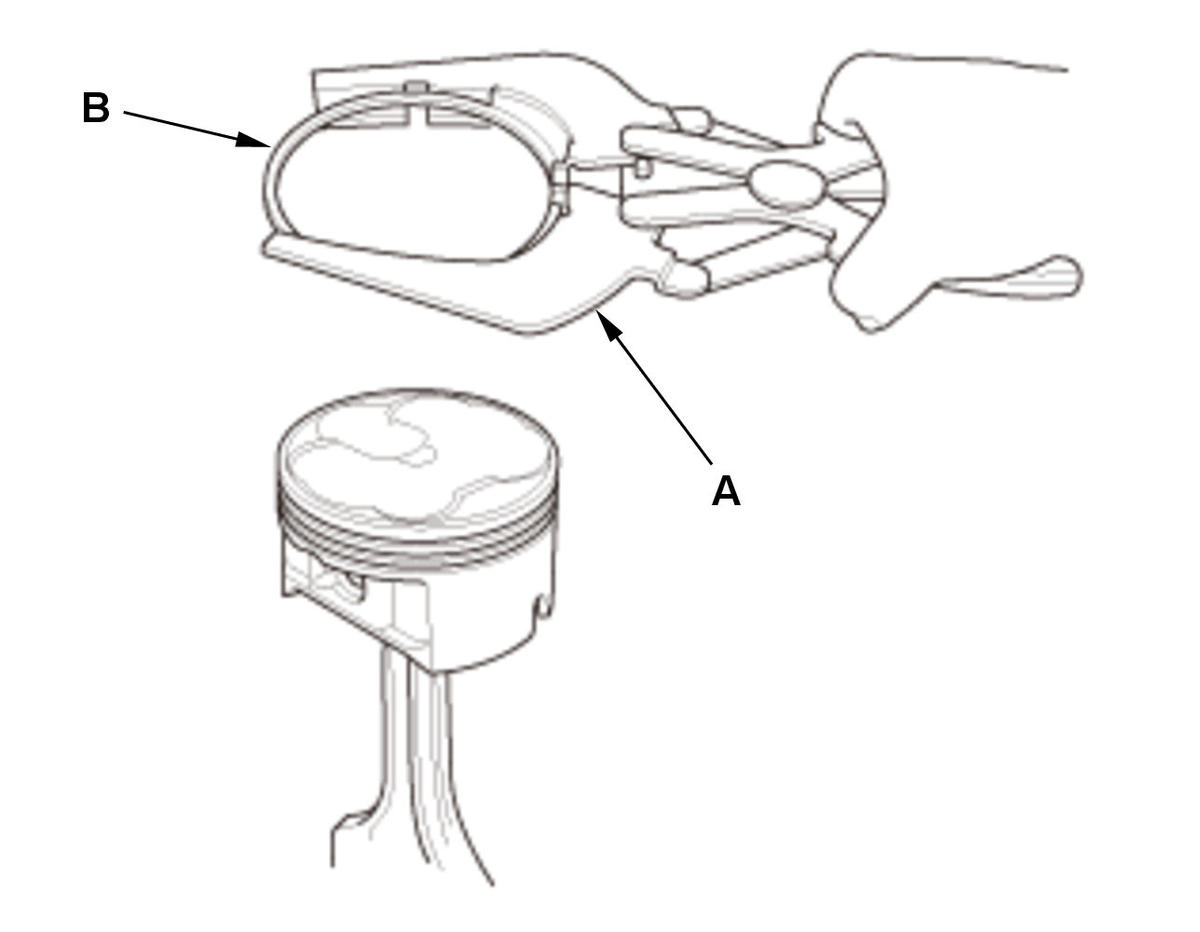

1. Using a ring expander (A), remove the old piston rings (B).

2. Clean all the ring grooves thoroughly with a squared-off broken ring, or a ring groove cleaner with a blade to fit the piston grooves. File down the blade, if necessary. The top ring and second ring grooves are 1.2 mm (0.047 in) wide, and the oil ring groove is 2.0 mm (0.079 in) wide. Do not use a wire brush to clean the ring grooves, or cut the ring grooves deeper with the cleaning tool.

NOTE: If the piston is to be separated from the connecting rod, do not install new rings yet.

Piston Ring End Gap - Inspect

Courtesy of HONDA, U.S.A., INC.

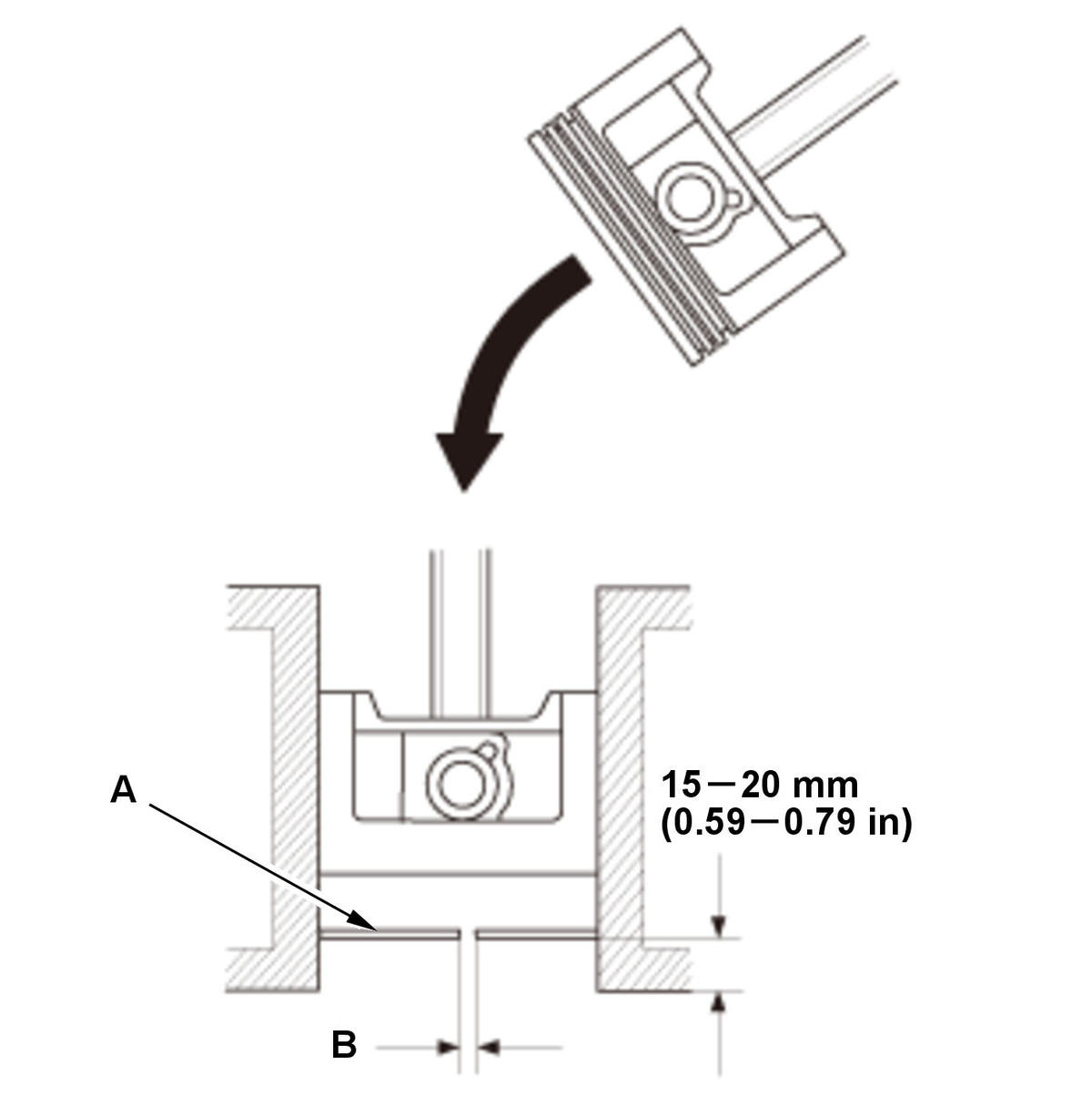

1. Using a piston, push a new ring (A) into the cylinder bore 15-20 mm (0.59-0.79 in) from the bottom.

2. Measure the piston ring end-gap (B) with a feeler gauge:

If the gap is too small, check to see if you have the proper rings for your engine.
If the gap is too large, recheck the cylinder bore diameter against the wear limits . If the bore is over the service limit, the engine block must be rebored.

Piston Ring End-Gap
Top Ring:
Standard (New): 0.20-0.35 mm (0.008-0.013 in)
Service Limit: 0.6 mm (0.024 in)
Second Ring:
Standard (New): 0.40-0.55 mm (0.016-0.021 in)
Service Limit: 0.7 mm (0.028 in)
Oil Ring:
Standard (New): 0.20-0.70 mm (0.008-0.027 in)
Service Limit: 0.8 mm (0.031 in )

Piston Pin - Remove

Courtesy of HONDA, U.S.A., INC.

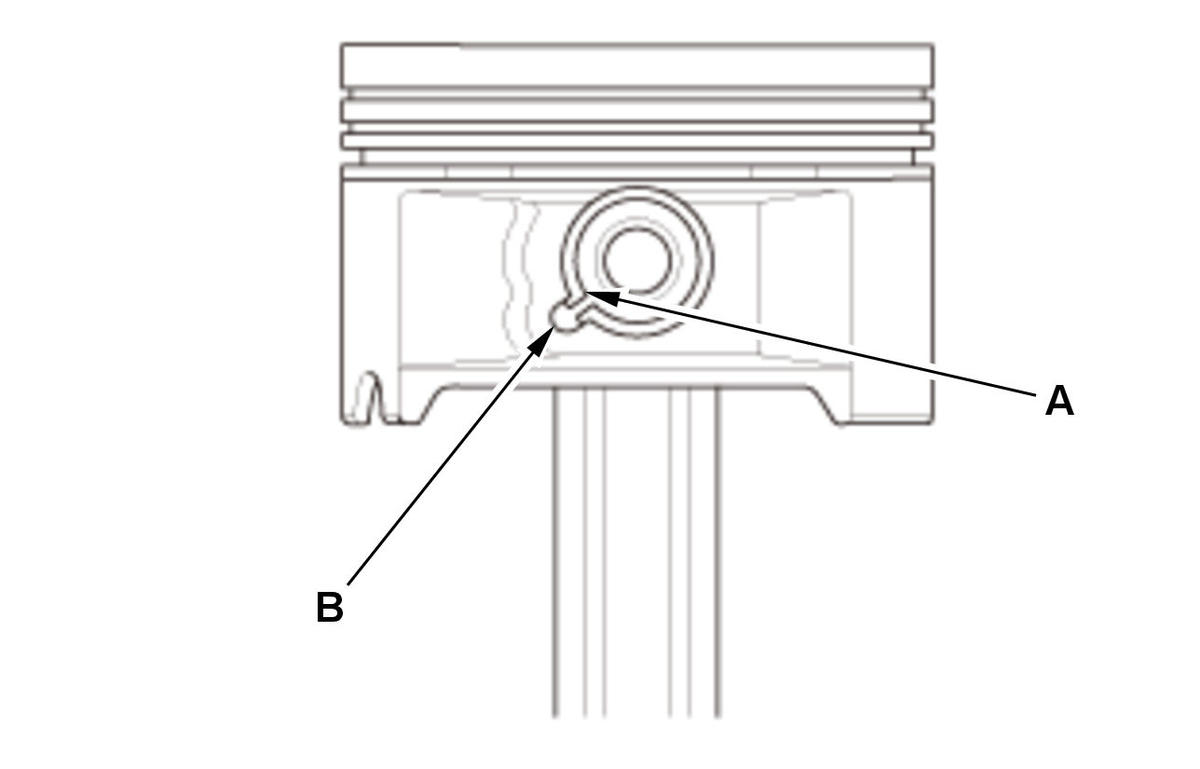

1. Apply new engine oil to the piston pin snap rings (A) and turn them in the ring grooves until the end gaps are lined up with the cutouts in the piston pin bores (B).

NOTE: Take care not to damage the ring grooves.

Courtesy of HONDA, U.S.A., INC.

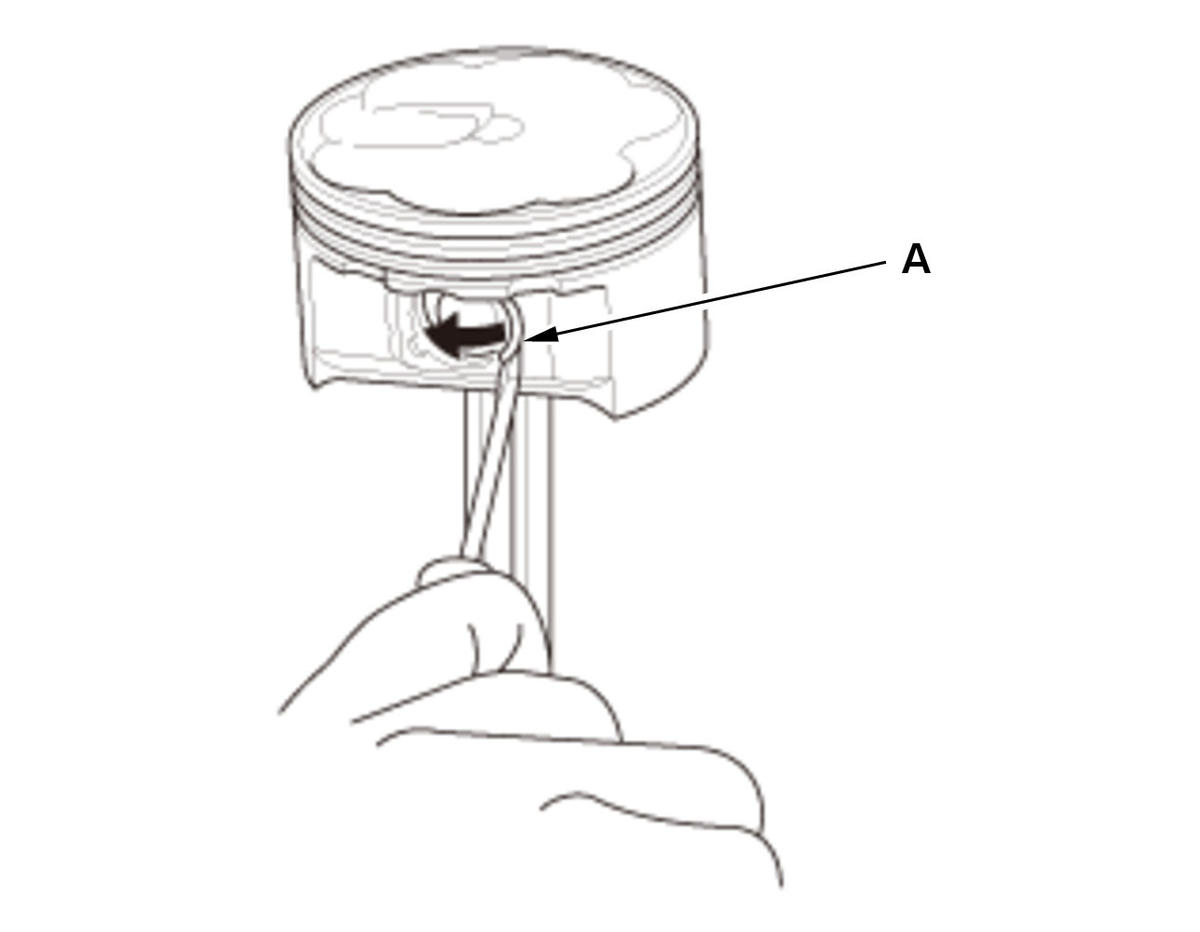

2. Remove the snap rings (A) from both sides of each piston. Start at the cutout in the piston pin bore. Remove the snap rings carefully so they do not go flying or get lost. Wear eye protection.

Courtesy of HONDA, U.S.A., INC.

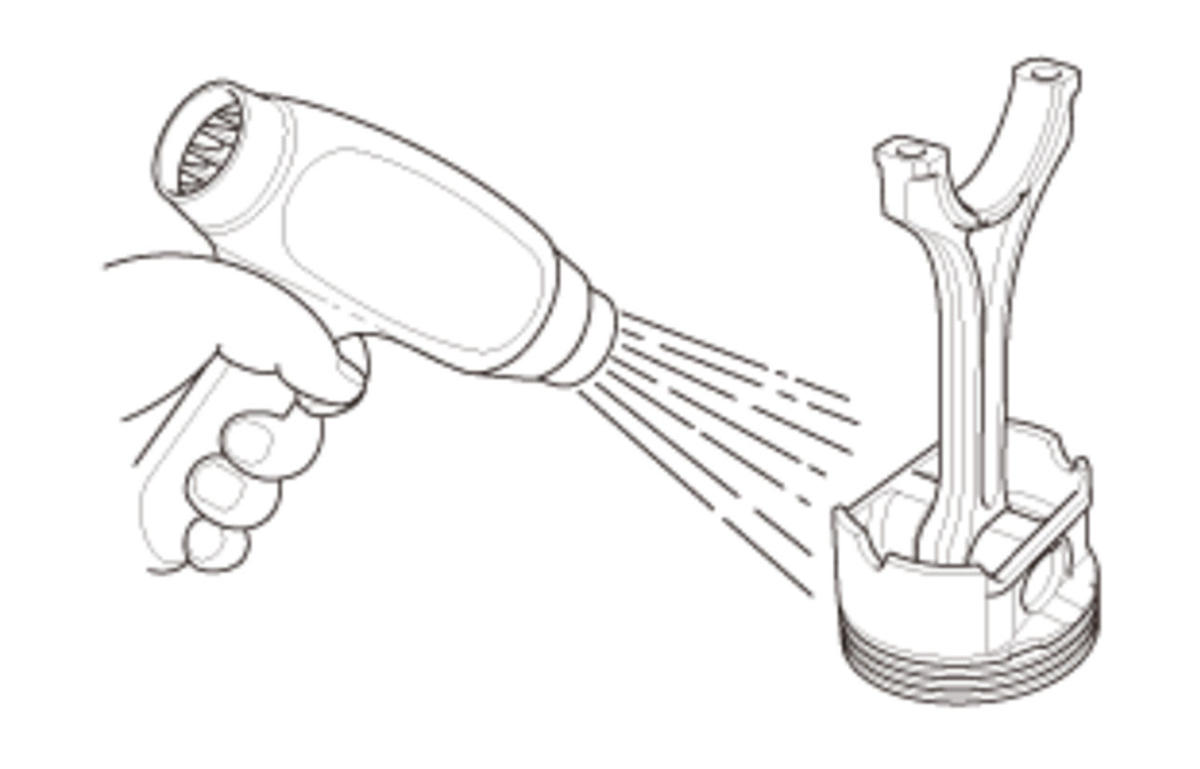

3. Separately heat each piston and connecting rod assembly to about 158 °F (70 °C), then remove the piston pin.

Piston Pin - Inspect

Courtesy of HONDA, U.S.A., INC.

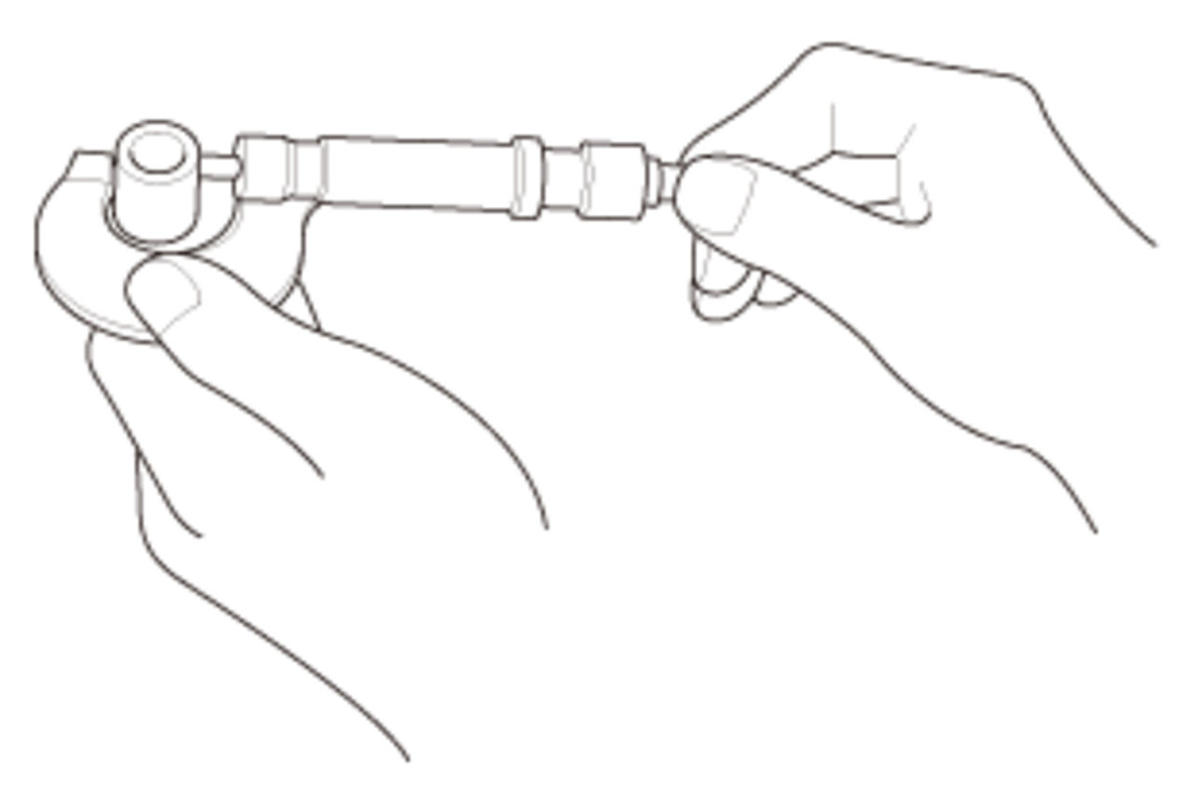

1. Measure the diameter of the piston pin.

Piston Pin Diameter
Standard (New): 21.961-21.965 mm (0.86460-0.86476 in)
Service Limit: 21.954 mm (0.86433 in)

Courtesy of HONDA, U.S.A., INC.

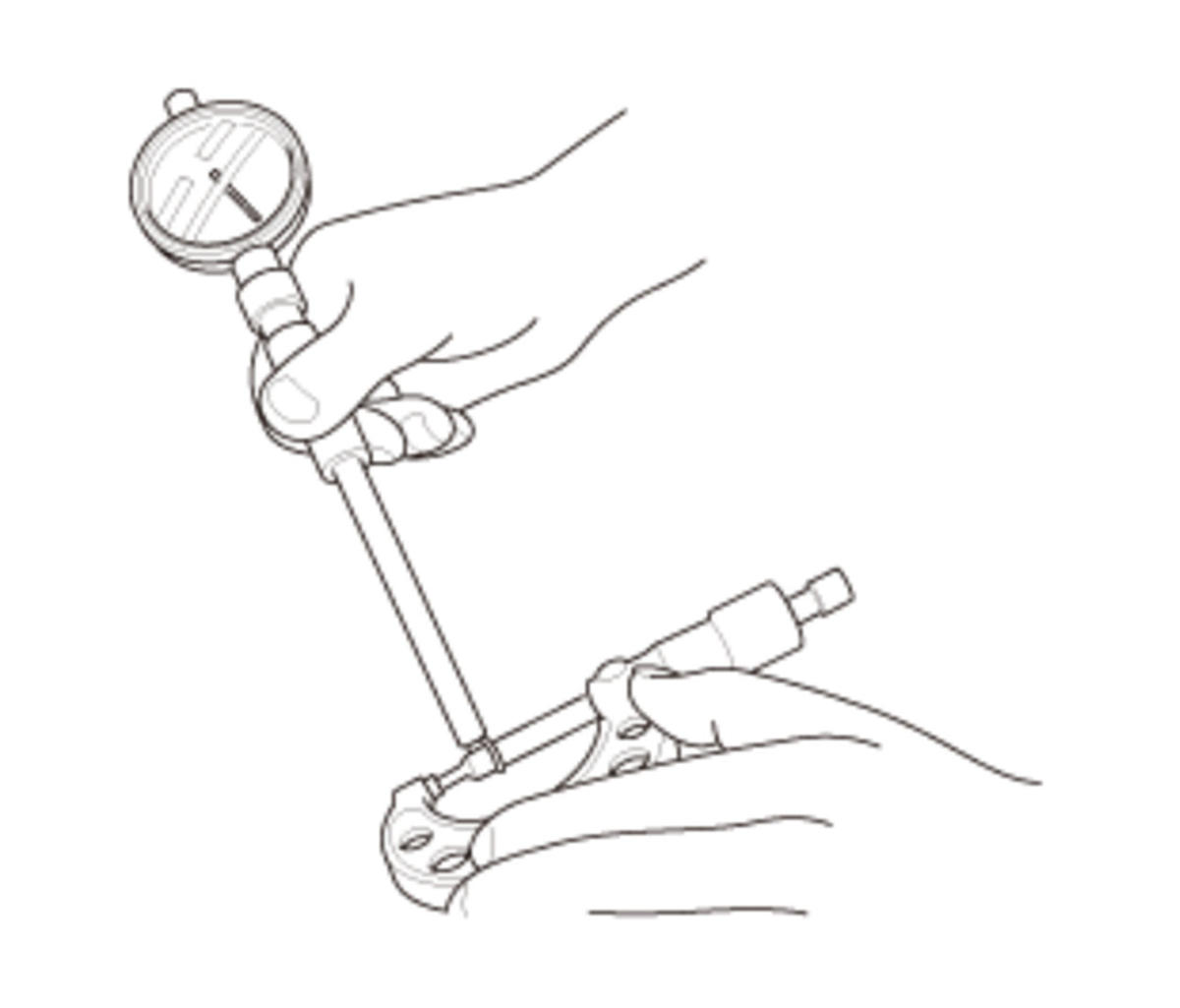

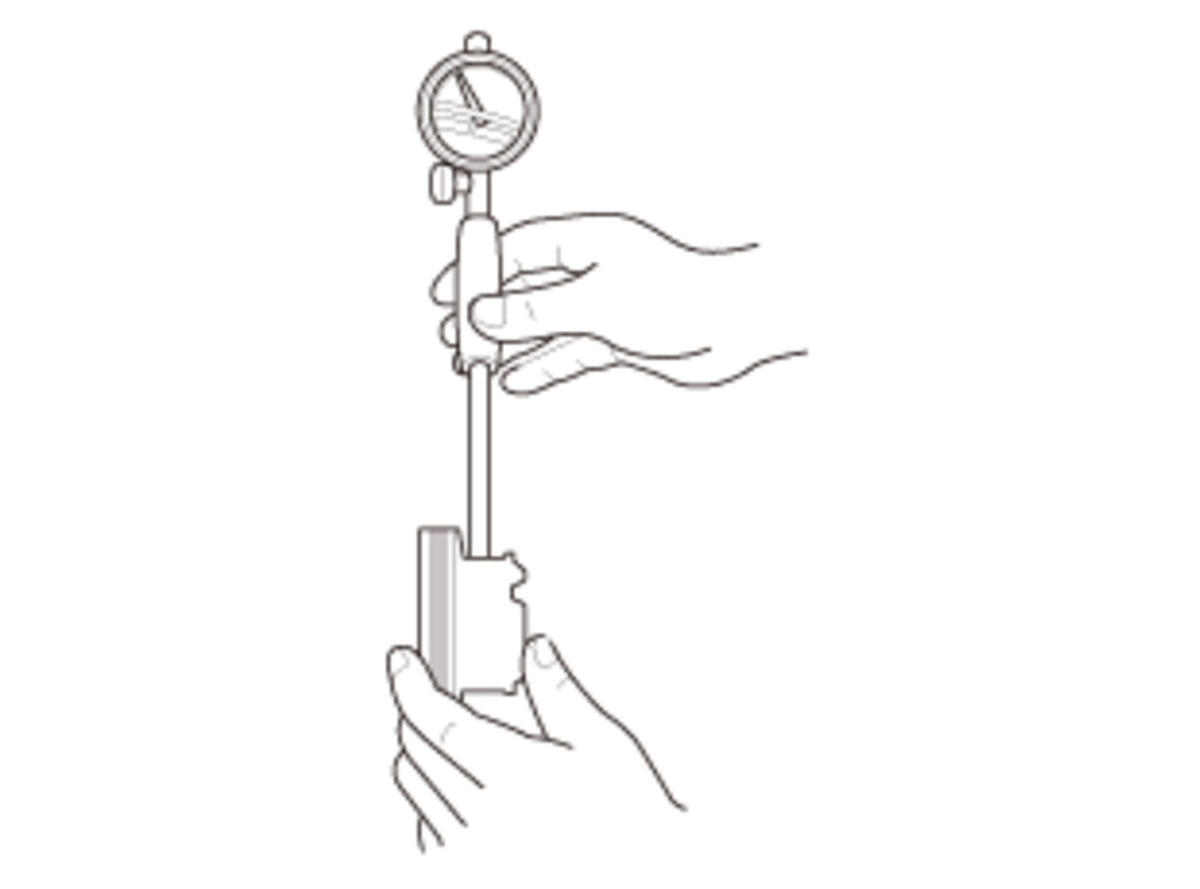

2. Zero the dial indicator to the piston pin diameter.

Courtesy of HONDA, U.S.A., INC.

3. Check the difference between the piston pin diameter and the piston pin hole diameter on the piston.

Piston Pin-to-Piston Clearance
Standard (New): -0.005-0.002 mm (-0.00020-0.00008 in)
Service Limit: 0.004 mm (0.00016 in)

Courtesy of HONDA, U.S.A., INC.

4. Measure the piston pin-to-connecting rod clearance.

Piston Pin-to-Connecting Rod Clearance
Standard (New): 0.005-0.015 mm (0.00020-0.00059 in)
Service Limit: 0.019 mm (0.00075 in)

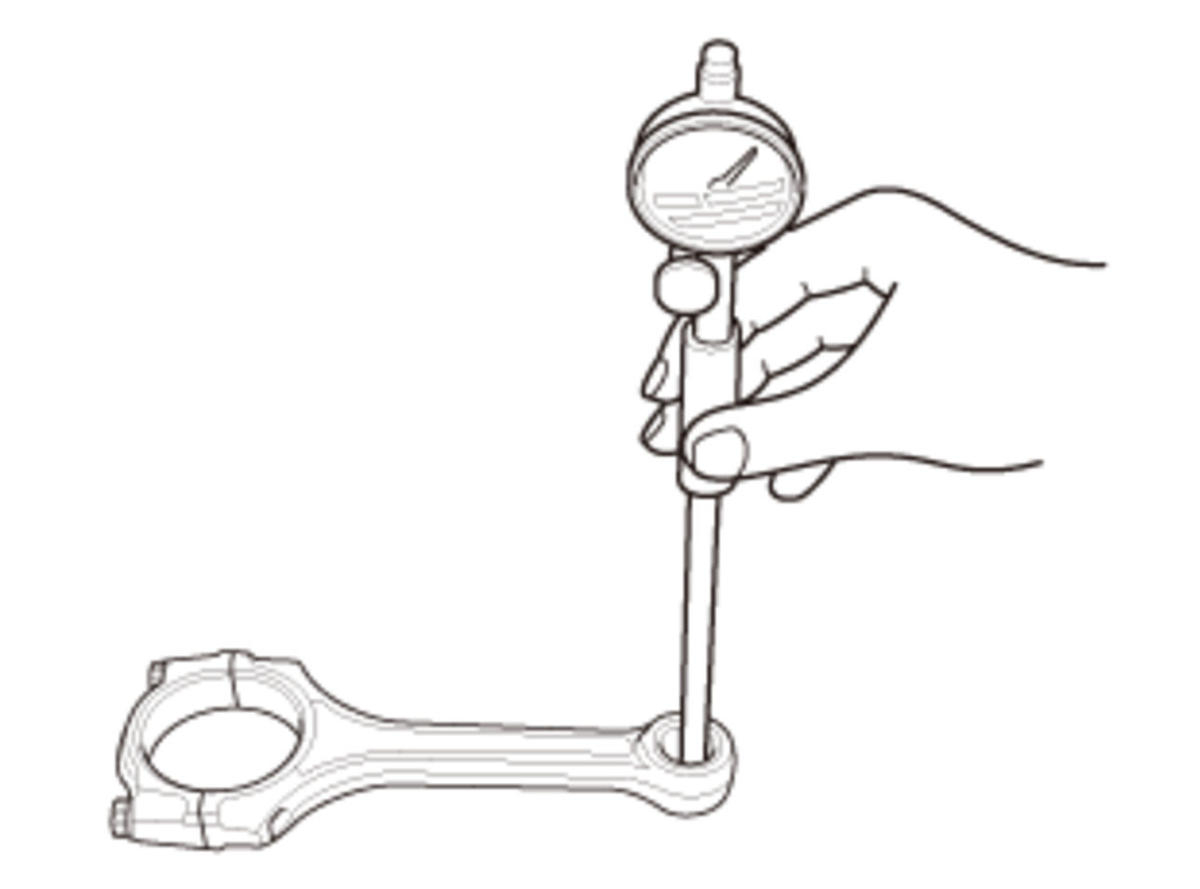

5. Measure the connecting rod small end bore diameter.

Connecting Rod Small End Bore Diameter
Standard (New): 21.970-21.976 mm (0.86496-0.86520 in)
