Intake Manifold (2019 2020 2021): Installation

NOTE:

• How to read the torque Specifications .
• Refer to the Exploded View if needed during this procedure.

1. Intake Manifold Base - Install

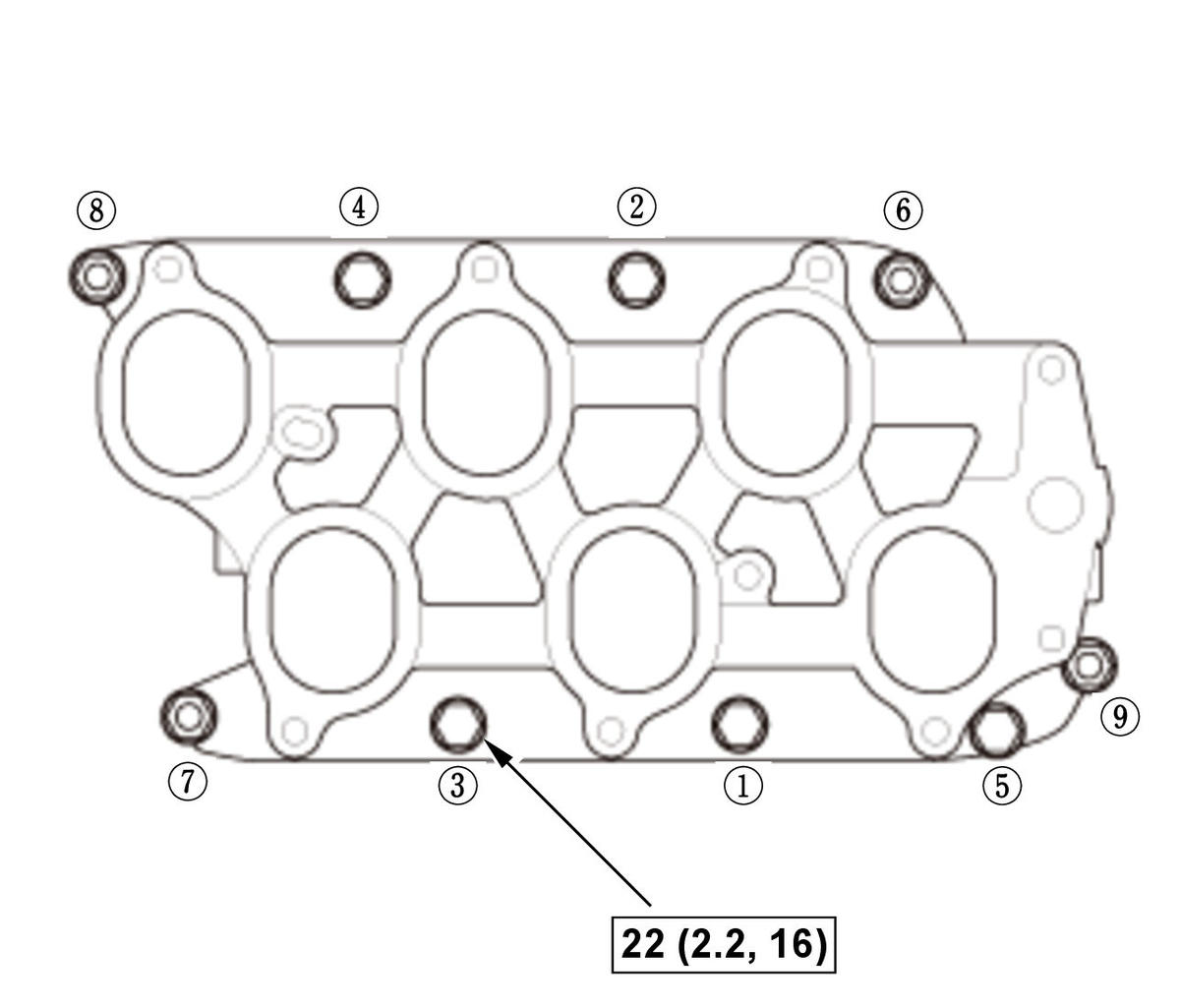

   Fig 1: Intake Manifold Base Tightening Sequence

   Courtesy of HONDA, U.S.A., INC.

   1. Install the intake manifold base. Tighten the bolts/nuts in three steps; tighten the bolts/nuts until the bolts/nuts sit on the intake manifold base, tighten the bolts/nuts until the gasket is compressed, tighten the bolts/nuts to specified torque.   NOTE:  Always use new gaskets.

2. Intake Manifold - Install

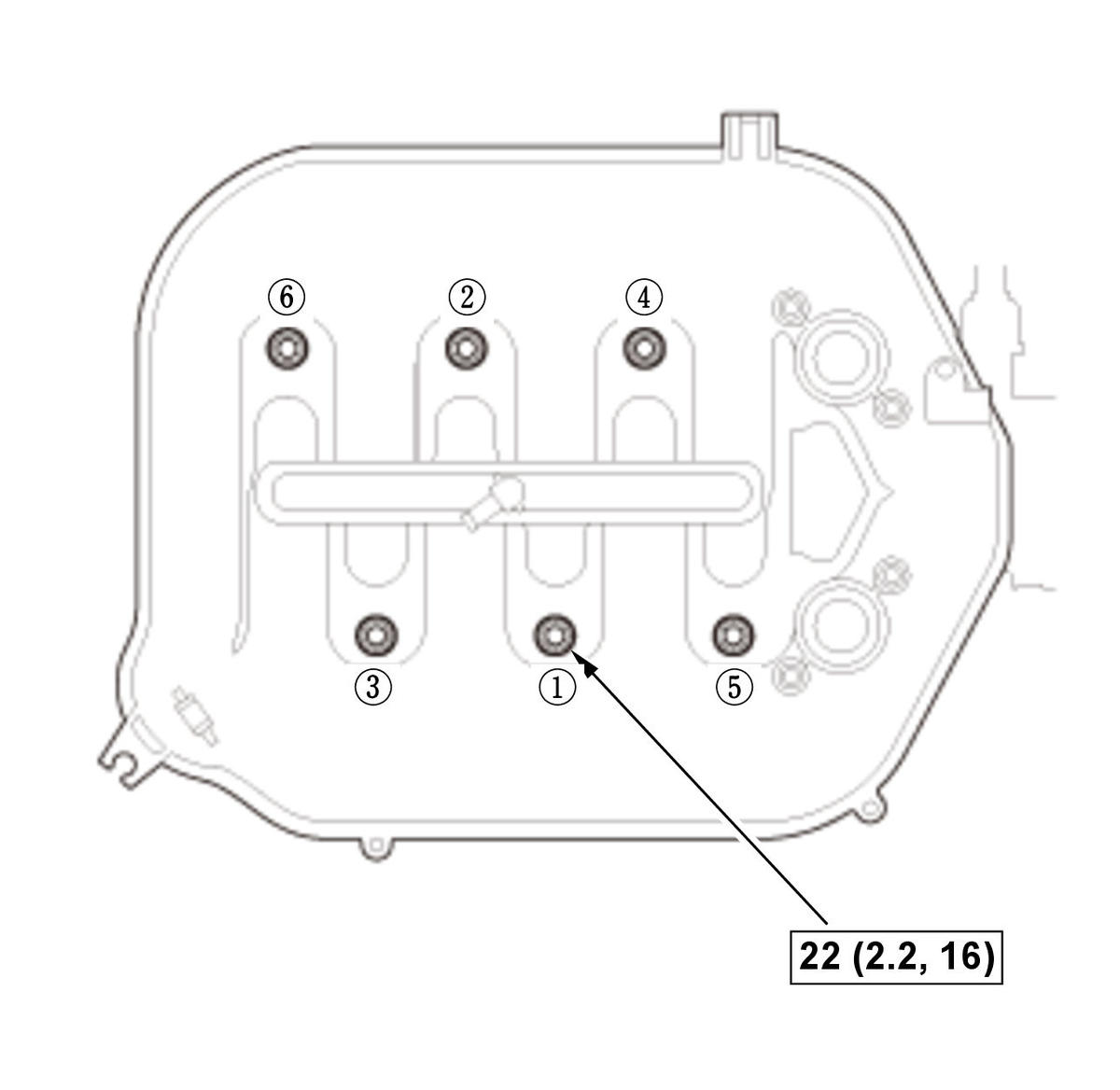

   Fig 2: Intake Manifold Tightening Sequence

   Courtesy of HONDA, U.S.A., INC.

   1. Install the intake manifold. Tighten the bolts/nuts in three steps; tighten the bolts/nuts until the bolts/nuts sit on the intake manifold, tighten the bolts/nuts until the gasket is compressed, tighten the bolts/nuts to specified torque.   NOTE:  Always use new gaskets.

3. EGR Pipe B - Install
4. Brake Booster Vacuum Hose and PCV Hose - Connect

   Courtesy of HONDA, U.S.A., INC.

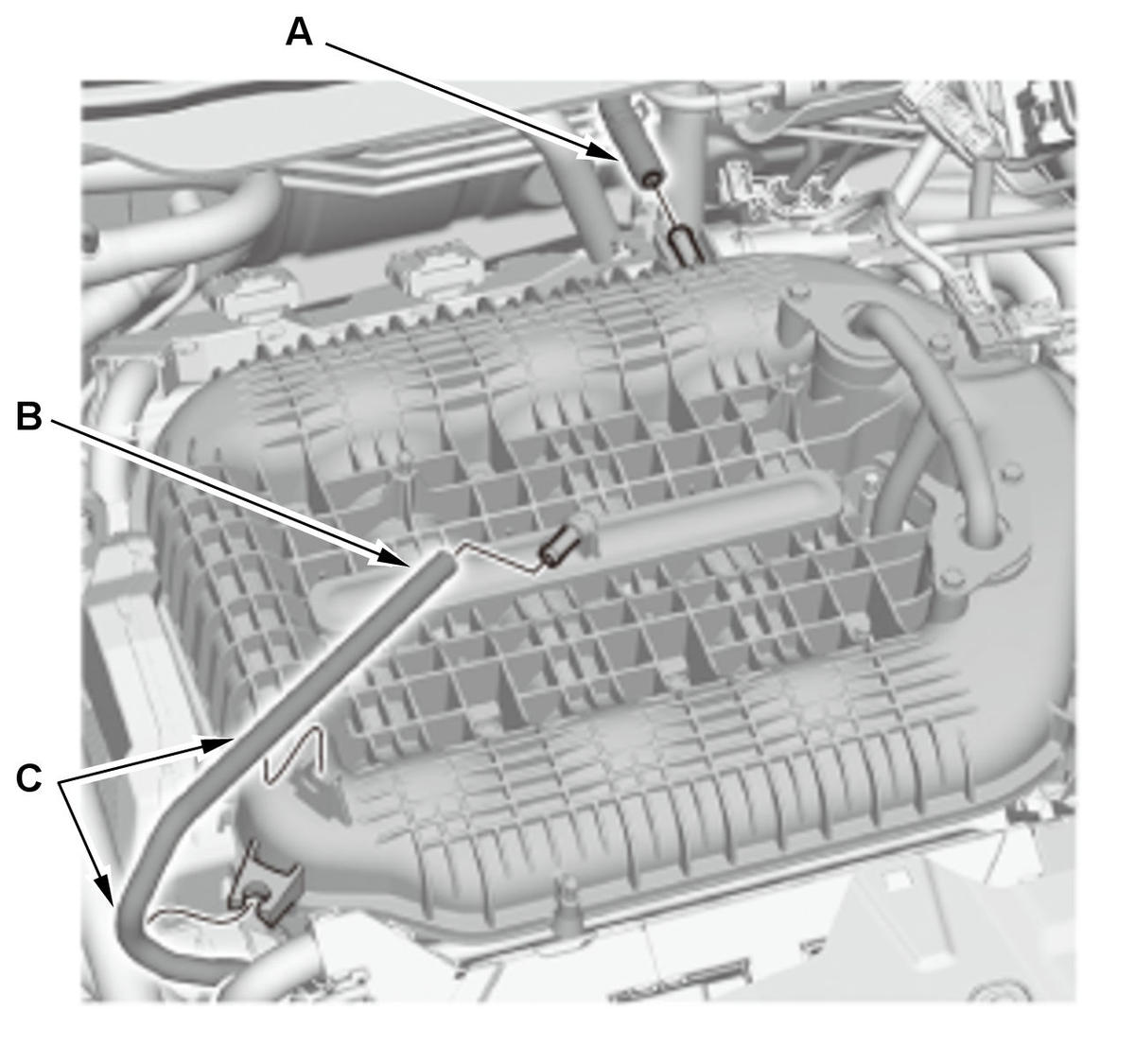

   1. Connect the brake booster vacuum hose (A) and the PCV hose (B). 2. Install the hose clamps (C).

5. Throttle Body and Intake Air Duct - Install

   NOTE:  Always use a new throttle body gasket.

6. EVAP Canister Purge Hose and Connector (EVAP Canister Purge Valve) - Connect
7. Air Cleaner - Install
