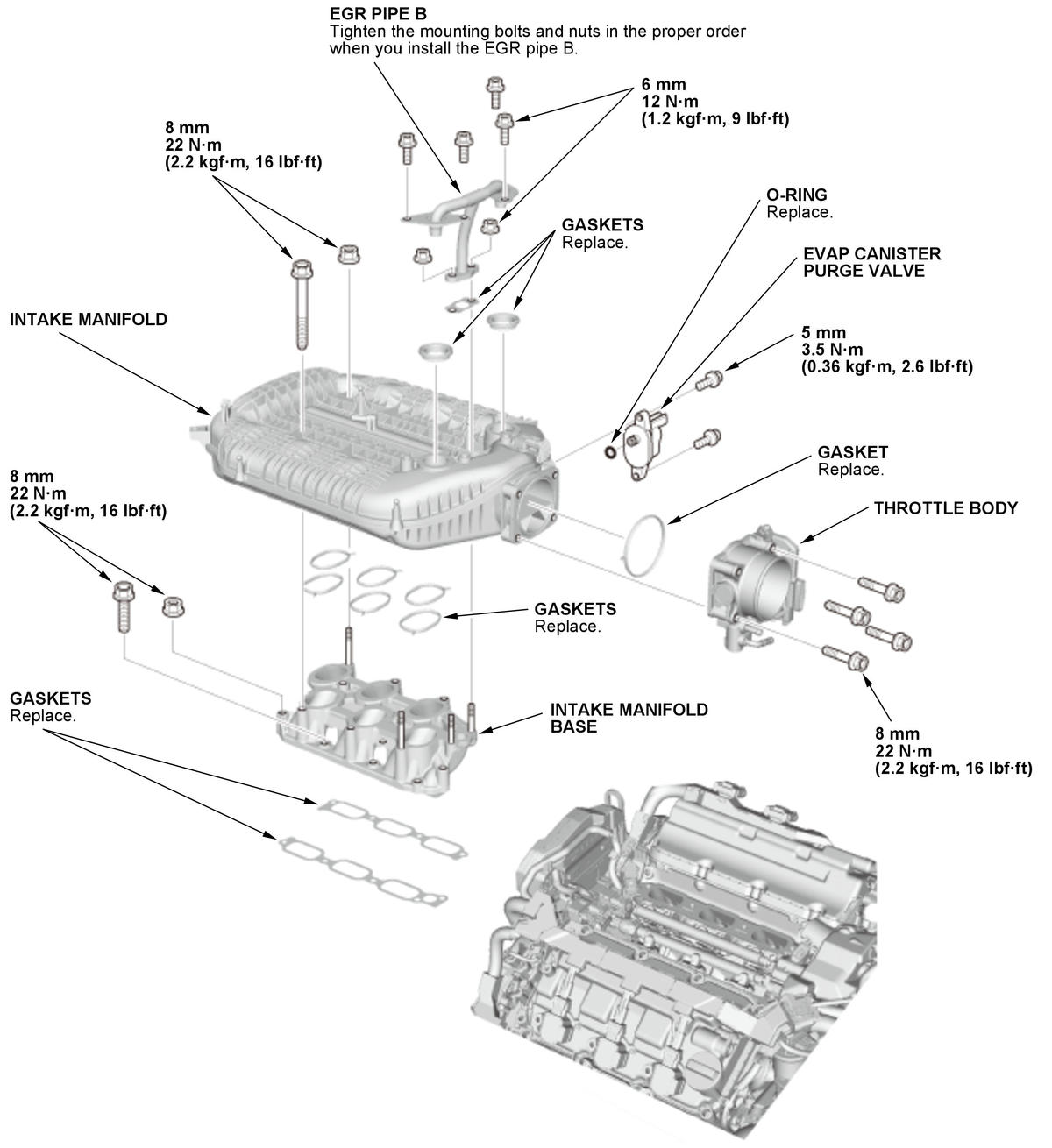

Home >> Honda >> 2017 >> Pilot EX, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System / Engine Mechanical - Service Information >> Removal And Installation >> INTAKE MANIFOLD (6-Speed A/T, '16-'18 9-Speed A/T) >> Exploded View
