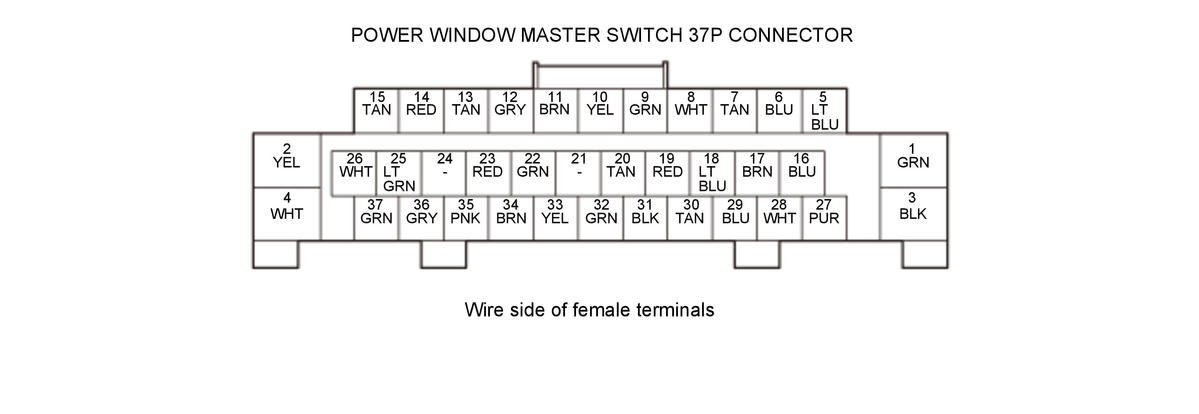

| 1 |
DR DN |
Drives driver's power window motor |
With driver's power window motor DOWN operation: about battery voltage If none of above conditions are met: less than 0.2 V |
| 2 |
DR UP |
Drives driver's power window motor |
With driver's power window motor UP operation: about battery voltage If none of above conditions are met: less than 0.2 V |
| 3 |
PGND |
Ground for power window master switch |
Less than 0.2 V at all times |
| 4 |
+B DR P/W |
Power source for door multiplex control unit |
About battery voltage at all times |
| 5 |
R/C MIRR MTR (L-UD) |
Detects R/C MIRR MTR (L-UD) signal |
When vehicle in ON mode: about 0 V or 5 V (depending on power mirror switch position) |
| 6 |
R-LR |
Detects R-LR signal |
With power mirror selector switch in R position: less than 0.2 V |
| 7 |
R-UD |
Detects R-UD signal |
With power mirror selector switch in R position: less than 0.2 V |
| 8 |
RETRA DR CLOSE |
Drives retract actuator |
With vehicle in ON mode and power mirror retract operation: about battery voltage If none of above conditions are met: less than 0.2 V |
| 9 |
RETRA DR OPEN |
Drives retract actuator |
With vehicle in ON mode and power mirror extend operation: about battery voltage If none of above conditions are met: less than 0.2 V |
| 10 |
M-IND1 |
Outputs M-IND1 signal |
Indicator 1 ON: pulse (depending on indicator brightness) Indicator 1 OFF: less than 0.2 V |
| 11 |
RETRA SW |
Outputs RETRA SW signal |
With vehicle in ON mode and power mirror retract switch in EXTEND position: less than 0.2 V With vehicle in ON mode, and power mirror retract switch in RETRACT position: about battery voltage |
| 12 |
M-IND2 |
Outputs M-IND2 signal |
Indicator 2 ON: pulse (depending on indicator brightness) Indicator 2 OFF: less than 0.2 V |
| 13 |
DR SVCC |
Outputs DR SVCC signal |
With door multiplex control unit is wakeup mode: about battery voltage With door multiplex control unit is sleep mode: less than 0.2 V |
| 14 |
FUEL LID SW+ |
Detects FUEL LID SW+ signal |
With fuel fill door opener switch OFF: about battery voltage With fuel fill door opener switch OFF: less than 0.2 V |
| 15 |
L HEAT MIR |
Outputs L HEAT MIR signal |
With mirror defogger ON mode: about battery voltage |
| 16 |
P/W RR-L SW(U) |
Drives left rear power window motor |
With left rear power window moving to UP using power window master switch: about battery voltage If none of above conditions are met: less than 0.2 V |
| 17 |
DR PLSA |
DR PLSA signal |
- - - |
| 18 |
P/W RR-R SW(U) |
Drives right rear power window motor |
With right rear power window moving to UP using power window master switch: about battery voltage If none of above conditions are met: less than 0.2 V |
| 19 |
DR PLSB |
DR PLSB signal |
- - - |
| 20 |
M-SET |
Detects M-SET signal |
With driving position memory set switch ON: less than 0.2 V With driving position memory set switch OFF: about 5 V |
| 21 |
Not used |
- - - |
- - - |
| 22 |
M-POS1 |
Detects M-POS1 signal |
With driving position memory switch 1 ON: less than 0.2 V With driving position memory switch 1 OFF: about 5 V |
| 23 |
M-POS2 |
Detects M-POS2 signal |
With driving position memory switch 2 ON: less than 0.2 V With driving position memory switch 2 OFF: about 5 V |
| 24 |
Not used |
- - - |
- - - |
| 25 |
IG2 A/C |
IG2 power source |
With vehicle in ON mode: about battery voltage |
| 26 |
+B BACKUP |
Power source for power window master switch |
About battery voltage at all times |
| 27 |
P/W RR-L SW(D) |
Drives left rear power window motor |
With left rear power window moving to DOWN using power window master switch: about battery voltage If none of above conditions are met: less than 0.2 V |
| 28 |
B-CAN_H |
Communication line |
- - - |
| 29 |
P/W RR-R SW(D) |
Drives right rear power window motor |
With right rear power window moving to DOWN using power window master switch: about battery voltage If none of above conditions are met: less than 0.2 V |
| 30 |
B-CAN_L |
Communication line |
- - - |
| 31 |
GND |
Ground for power window master switch |
Less than 0.2 V at all times |
| 32 |
DR SILCON UNLOCK |
Detects DR SILCON UNLOCK signal |
With driver's door lock knob switch LOCK: about battery voltage With driver's door lock knob switch UNLOCK: less than 0.2 V |
| 33 |
DR SILCON LOCK |
Detects DR SILCON LOCK signal |
With driver's door lock knob switch UNLOCK: about battery voltage With driver's door lock knob switch LOCK: less than 0.2 V |
| 34 |
DR K/CYL UNLOCK |
Detects DR K/CYL UNLOCK signal |
With driver's door key cylinder switch LOCK: about battery voltage With driver's door key cylinder switch UNLOCK: less than 0.2 V |
| 35 |
DR K/CYL LOCK |
Detects DR K/CYL LOCK signal |
With driver's door key cylinder switch UNLOCK: about battery voltage With driver's door key cylinder switch LOCK: less than 0.2 V |
| 36 |
LIN (WINDOW) |
Communication line |
- - - |
| 37 |
ILLUMI+PW |
Detects ILLUMI+PW signal |
With combination light switch PARKING: about battery voltage With combination light switch OFF: less than 0.2 V |
