Key Lockout Prevent Function

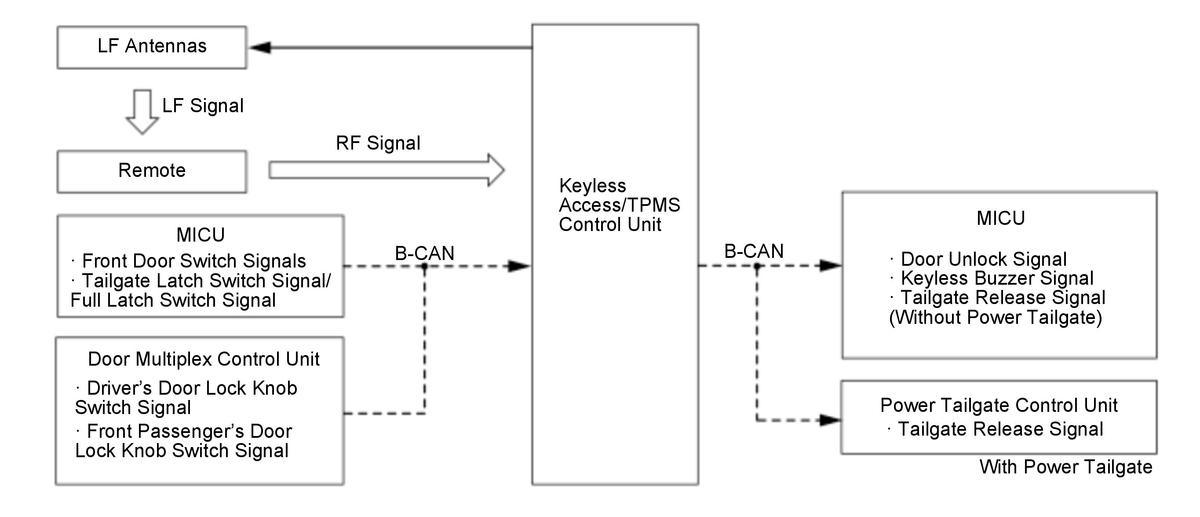

The keyless access/TPMS control unit monitors whether or not there is the remote in the vehicle. If the remote is in the vehicle, the system will not lock the doors. If the driver manually locks and closes the doors and tailgate with the remote in the vehicle, the MICU energizes the door lock actuators and unlocks the front doors.

GHH312248Courtesy of HONDA, U.S.A., INC.
