Electric Steering Lock (Canada and Mexico Models)

The electric steering lock control unit is built into the electric steering lock, and it controls the steering lock motor. When the remote code is identified, the electric steering lock control unit unlocks the steering lock by controlling the steering lock motor.

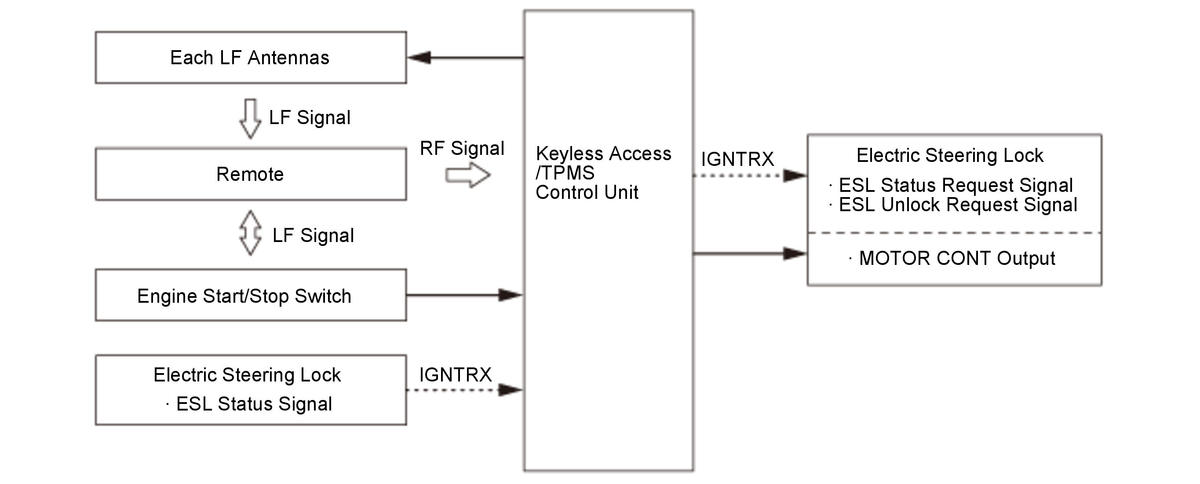

GHH312249Courtesy of HONDA, U.S.A., INC.
