KEYLESS/POWER DOOR LOCKS/SECURITY SYSTEM (WITH Auto Idle Stop System) (2016 2017 2018)

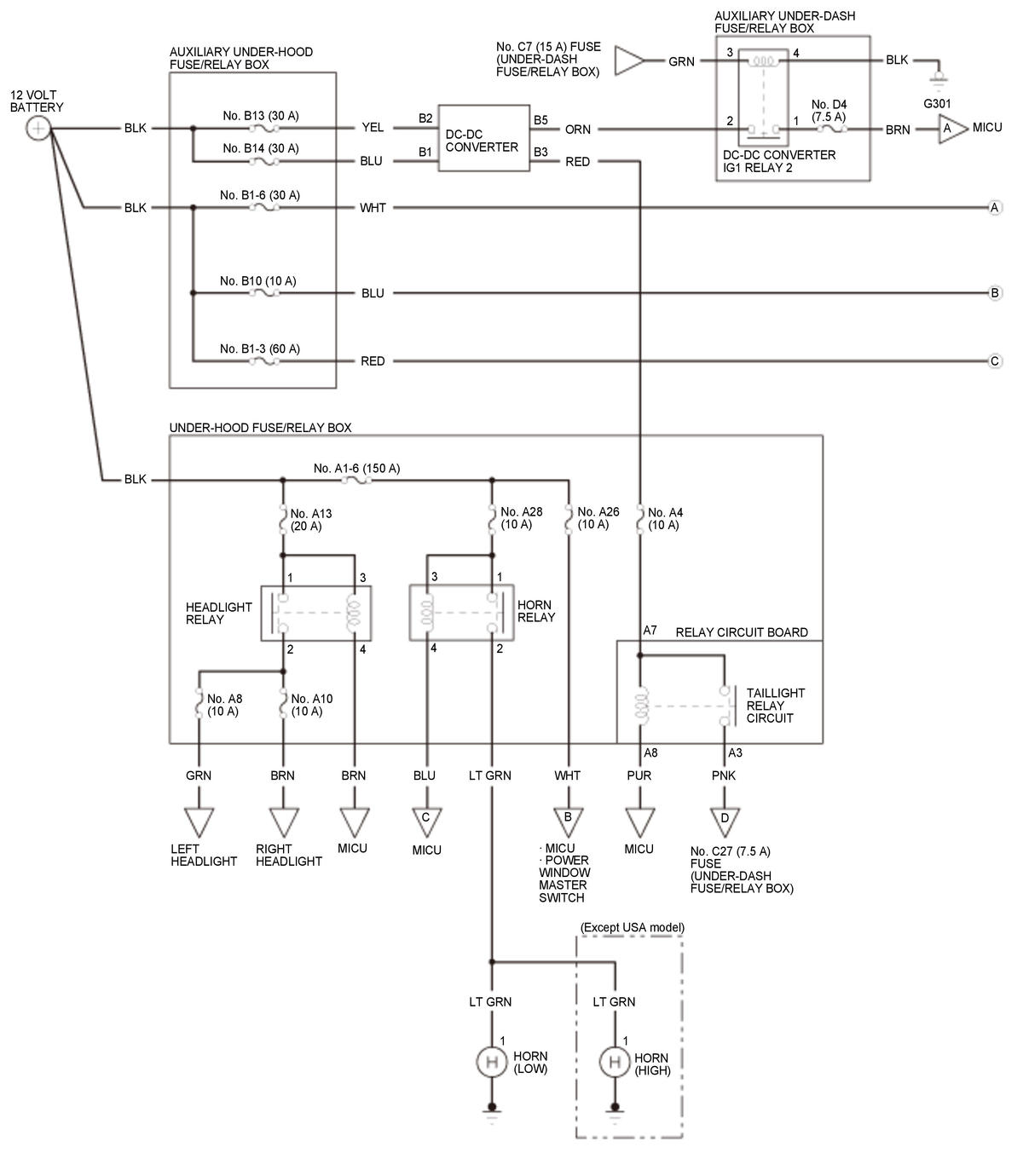

GHH312300Courtesy of HONDA, U.S.A., INC.

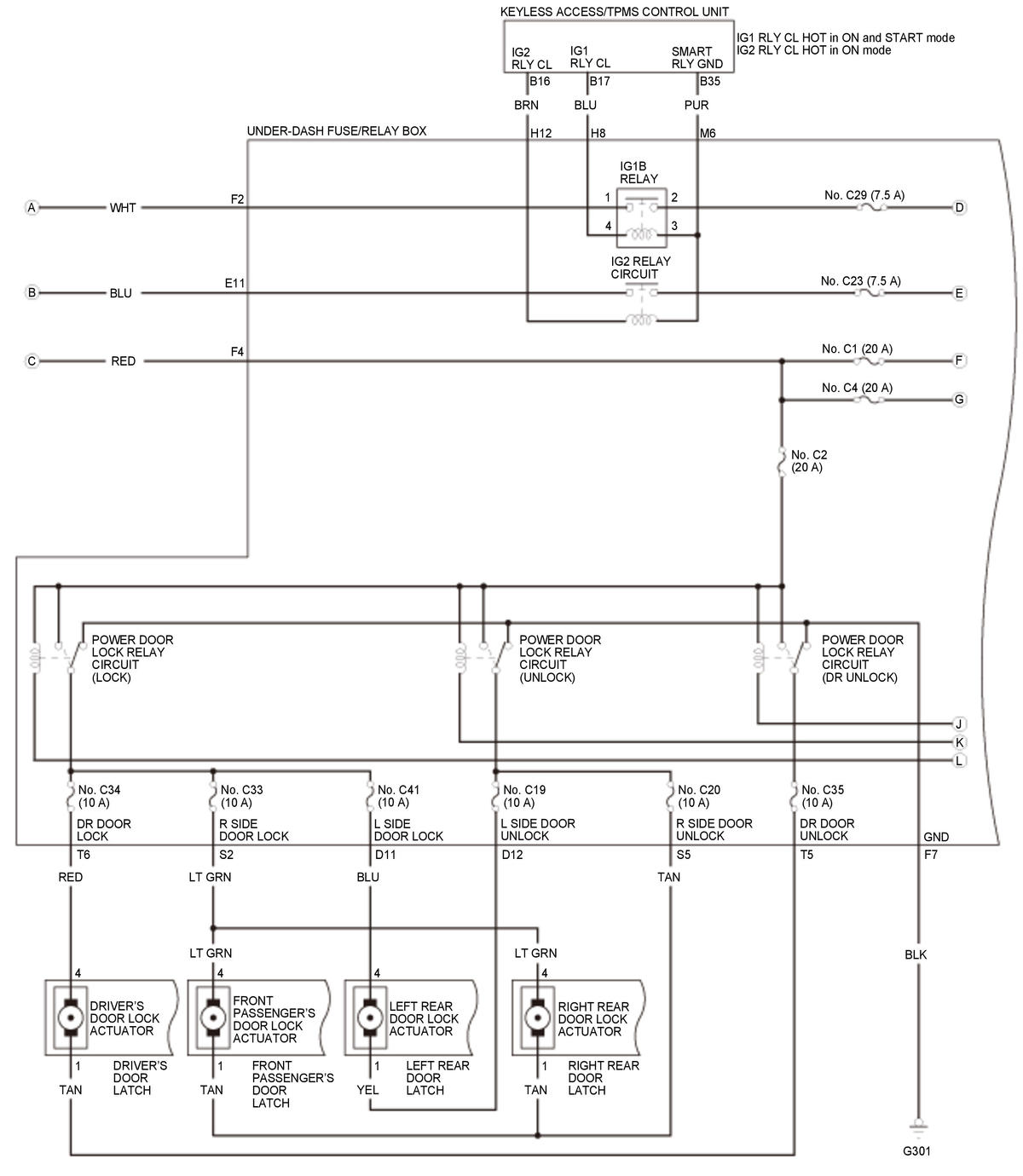

GHH312301Courtesy of HONDA, U.S.A., INC.

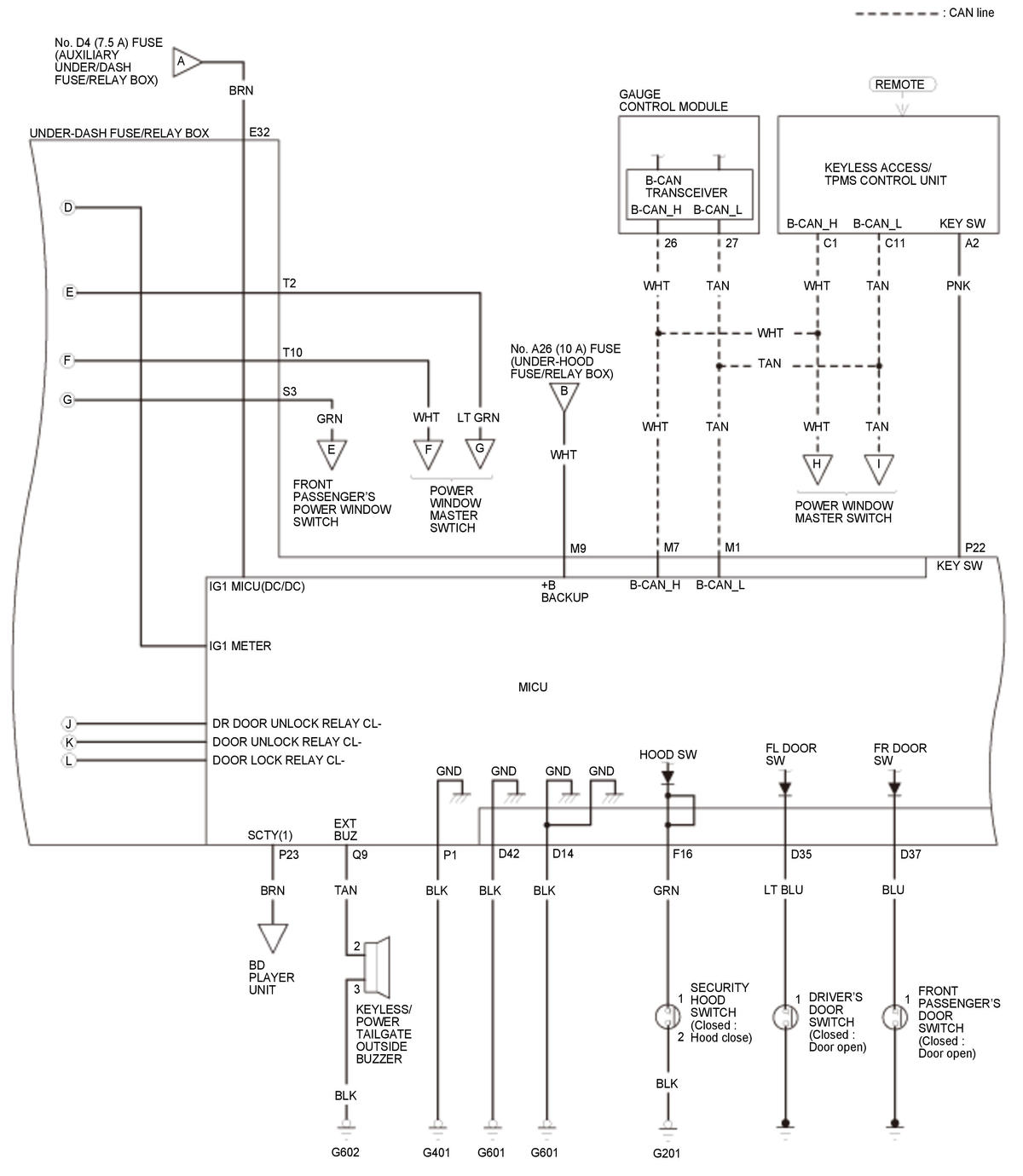

GHH312302Courtesy of HONDA, U.S.A., INC.

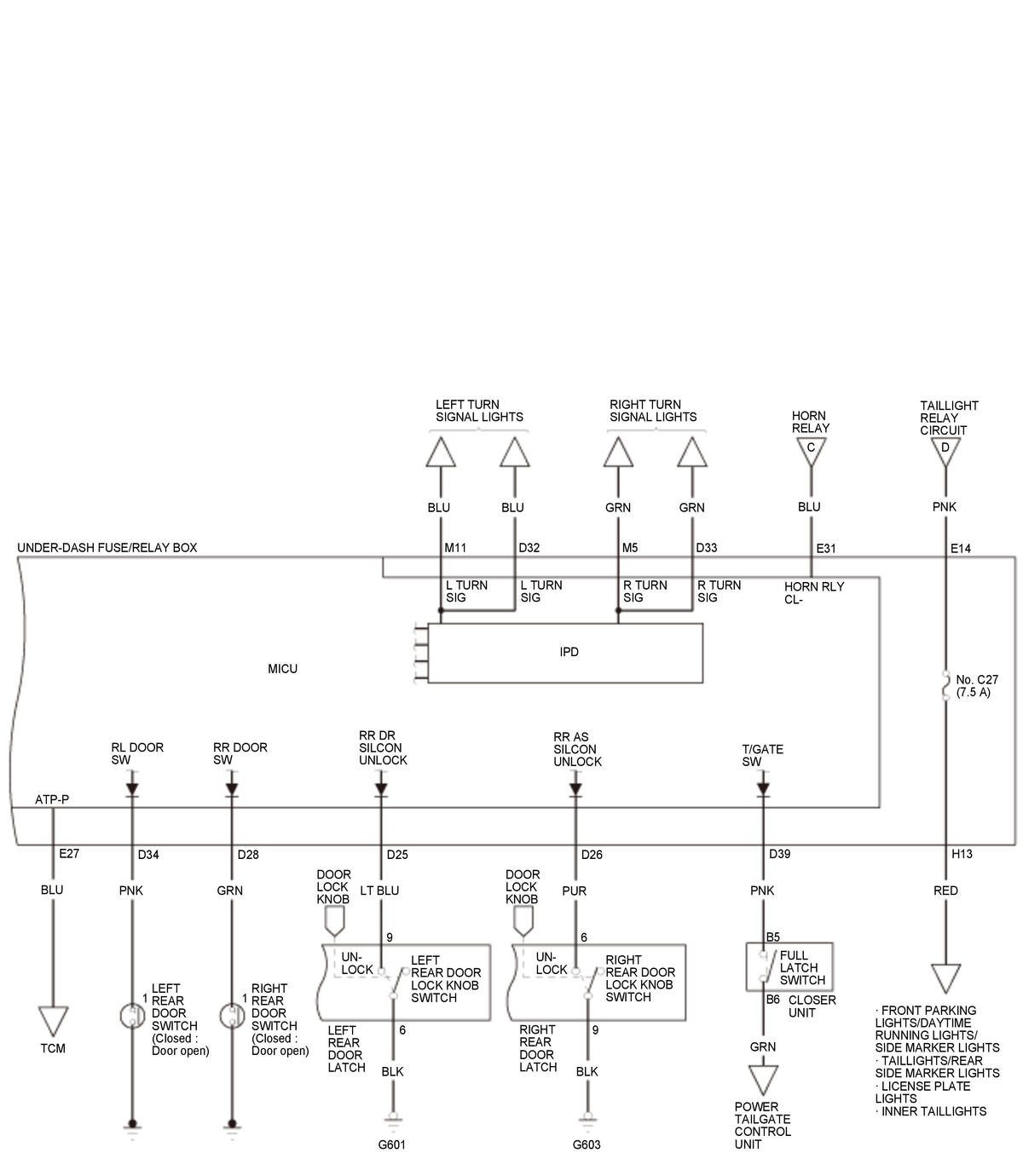

GHH312303Courtesy of HONDA, U.S.A., INC.

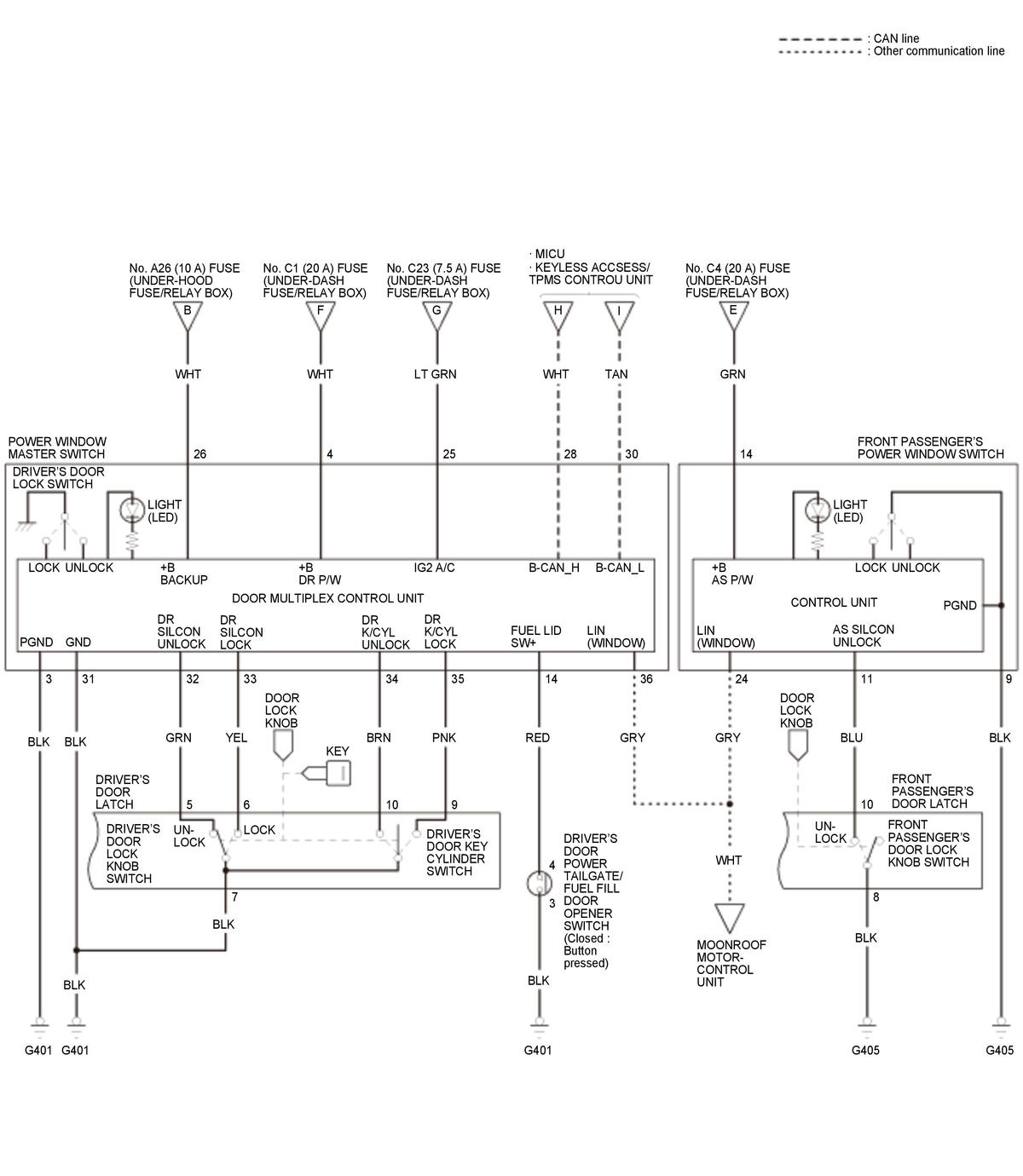

GHH312304Courtesy of HONDA, U.S.A., INC.
